Commissioning
Installing the Outriggers and Swivel Jacks 6.6
39
[en-US] | 02/2023 | 5100065071 | LTV 4L/6L | Operator’s Manual

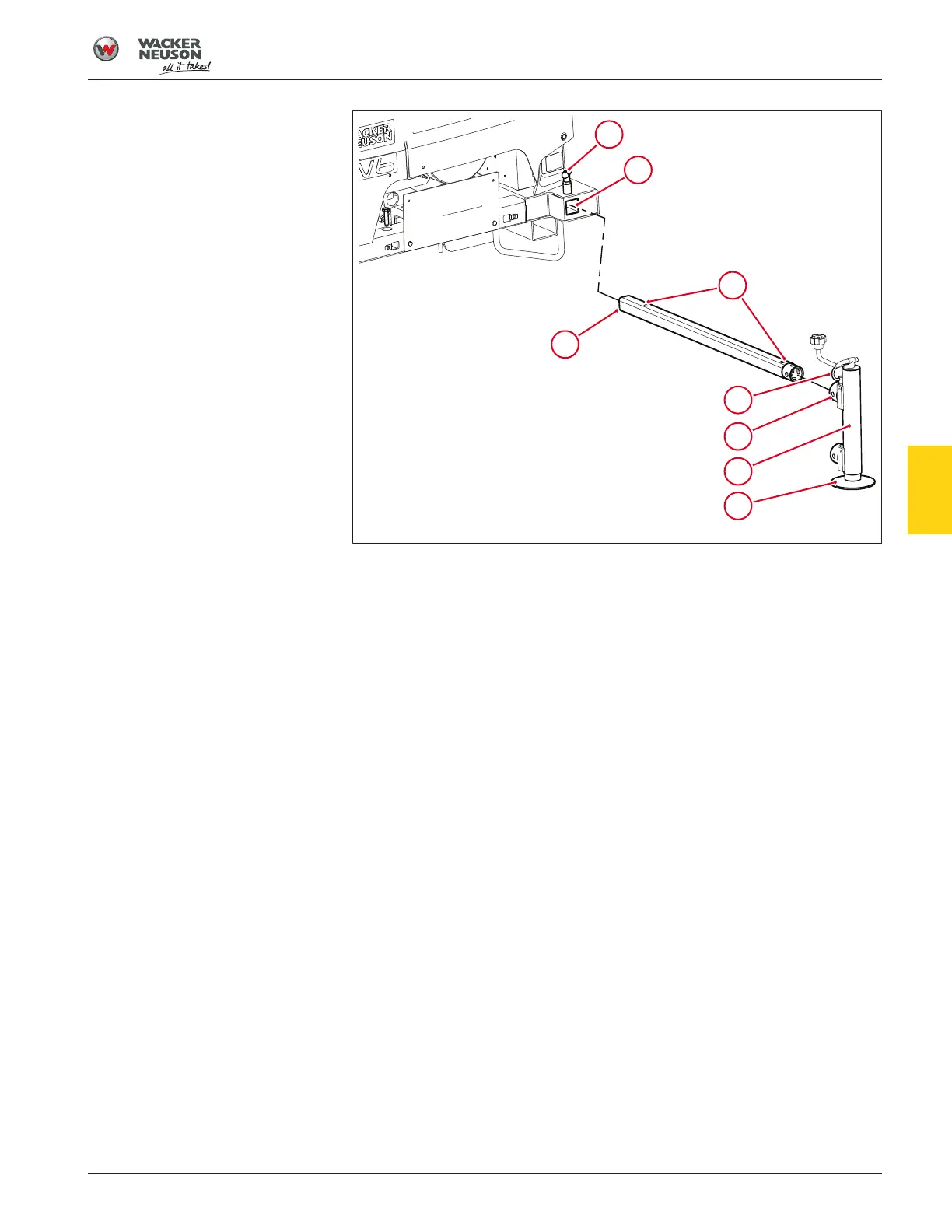

Fig.12: Installing the outriggers and swivel jacks
2. Position the outrigger (3) so the holes (4) face the same direction as
the locking pin.
3. Pull the locking pin and insert the square end of the outrigger into the
outrigger socket.
4. Align the hole in the outrigger with the locking pin. When the hole is
aligned, release the locking pin to fasten the outrigger in place.
5. Repeat steps 1 through 4 to install the second outrigger on the other
side.
Installing the swivel jacks on the outriggers
1. Locate a 10-inch swivel jack (5).
2. If necessary, remove the locking pin (6) from the swivel jack.
3. Fit the socket (7) of the swivel jack over the circular end of the outrig-
ger.
4. Rotate the swivel jack so the foot (8) rests on the ground.
5. Align the top hole in the swivel jack socket with the top hole in the out-
rigger.
6. Insert the locking pin through the aligned holes (top and bottom) to se-
cure the swivel jack in place.
7. Repeat steps 1 through 6 to install the second swivel jack on the other
side.
