Commissioning
6.10 Installing the Power Winch
44
Operator’s Manual | LTV 4L/6L | 5100065071 | 02/2023 | [en-US]
Installing the winch cable
1. Pass the winch cable (7) over the top of the manual winch drum(2)
and through the side hole (8).
wc_gr014404
2
2
7
7
8
9
10

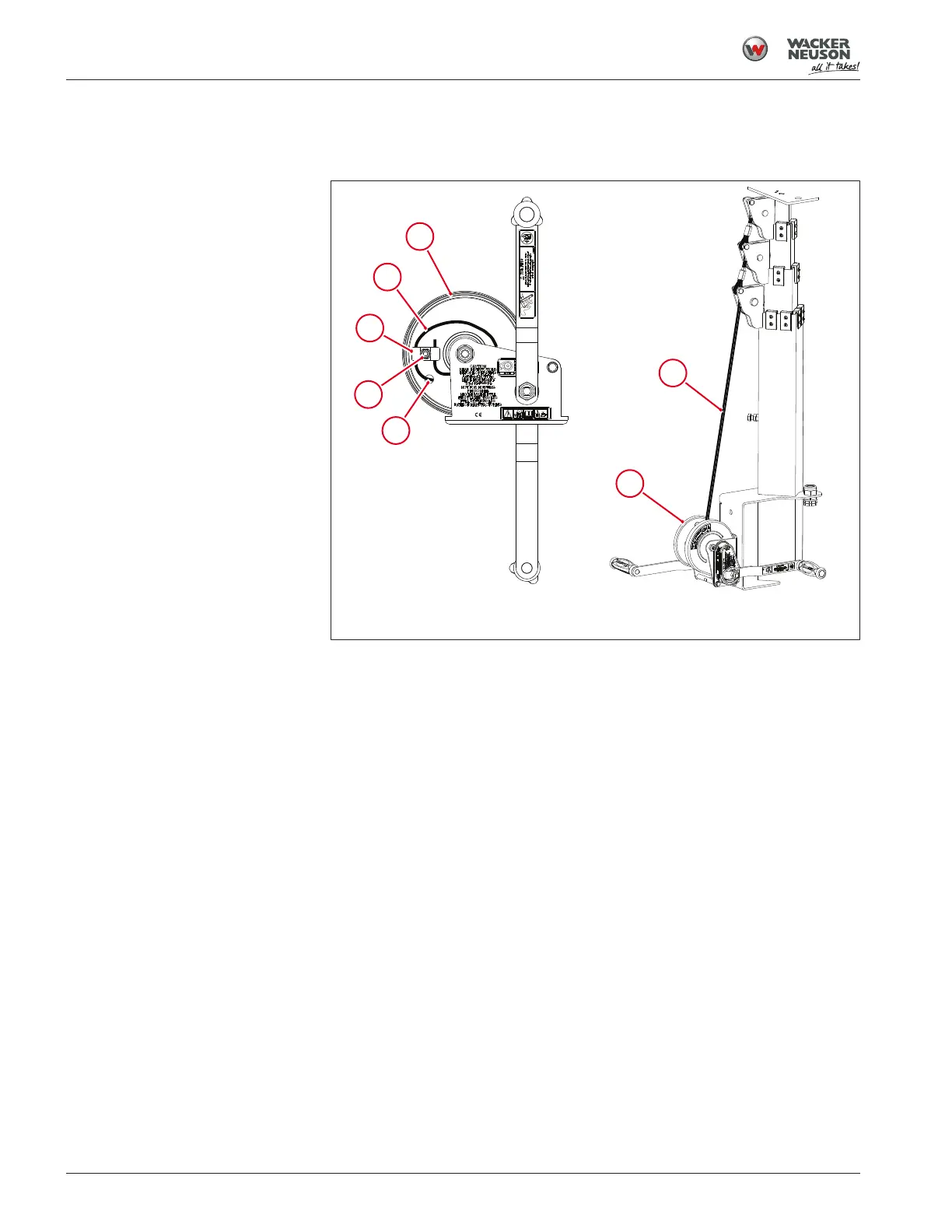

Fig.18: Winch cable and components
2. Wind the winch cable around the manual winch drum once.
3. Loosen the nut (9) on the winch cable retainer (10) and insert the free
end of the winch cable through the winch cable retainer so approxi-
mately 2.5cm(1in.) of winch cable extends beyond the winch cable
retainer as shown in the illustration.
4. Tighten the nut on the winch cable retainer to a torque of
10Nm(7.5ft.lbs.).
5. Rotate the manual winch clockwise to take up any slack in the winch
cable.
6.10 Installing the Power Winch
Materials needed
• Power winch
• Hardware bag 7
Installing the power winch
1. Remove the cover (1) from the power winch (2).
