Commissioning
Installing the Power Winch 6.10
45
[en-US] | 02/2023 | 5100065071 | LTV 4L/6L | Operator’s Manual
wc_gr014399
1
2
3
4
5
6
5

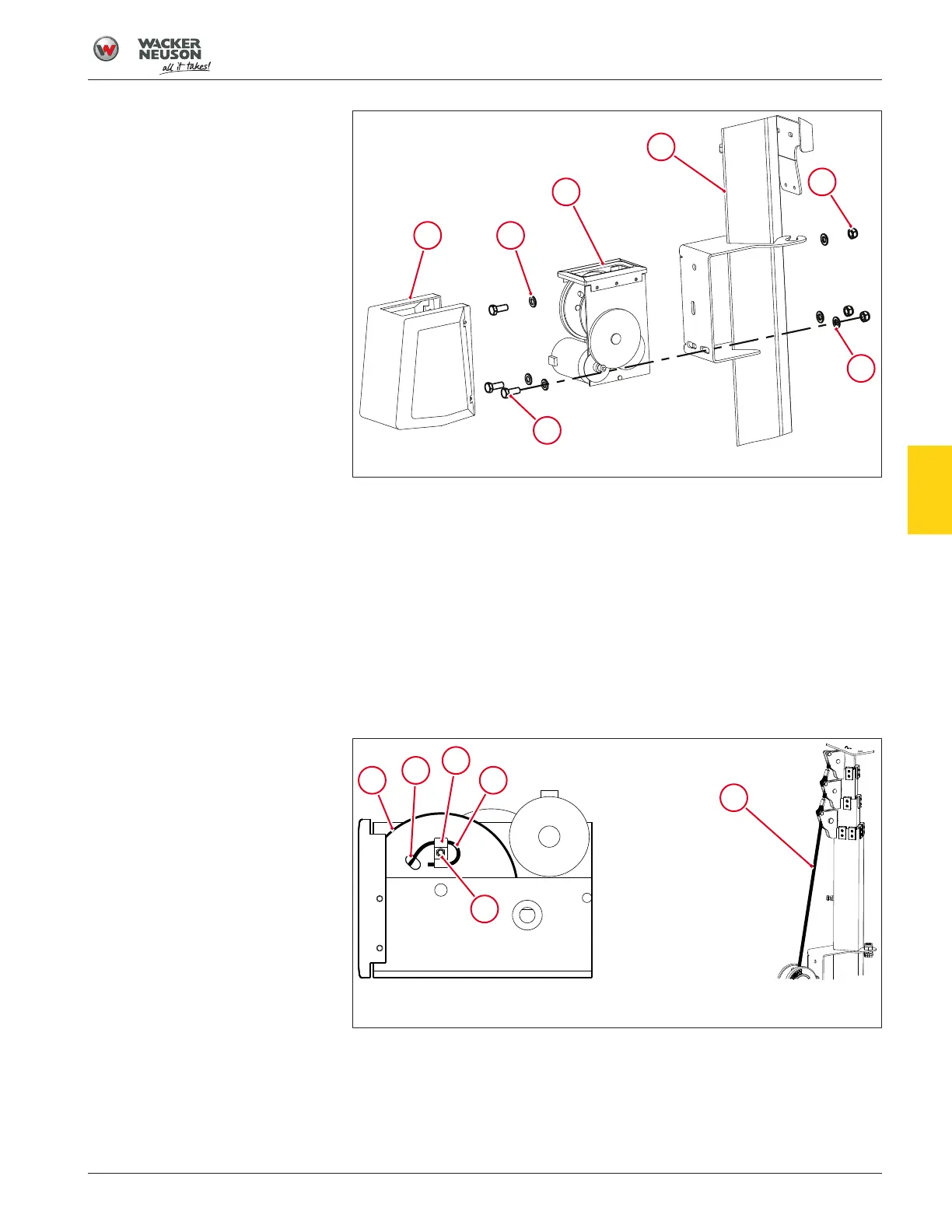

Fig.19: Power winch and hardware
2. Fasten the power winch to the mast (3) with the hardware from bag 7
as shown in the illustration:
ð Three M12x30 screws (4)
ð Six B13 flat washers (5)
ð Three M12 lock nuts (6)
3. Tighten the screws to a torque of 48Nm(35ft.lbs.).
Installing the winch cable
1. Pass the winch cable (7) over the top of the power winch drum (2) and
through the side hole (8).
wc_gr014460
2
7
7
8
9
10
Fig.20: Winch cable and components
2. Wind the winch cable around the power winch drum once.
3. Loosen the nut (9) on the winch cable retainer (10) and insert the free
end of the winch cable through the winch cable retainer so approxi-
mately 2.5cm(1in.) of winch cable extends beyond the winch cable
retainer as shown in the illustration.
6
