Wacker Neuson LTV 4L User Manual

Commissioning
6.3 Installing the Axle
36
Operator’s Manual | LTV 4L/6L | 5100065071 | 02/2023 | [en-US]
1. Wire the junction box.
2. Connect the coiled cord.
Tools and materials
The following tools and materials are needed:
• Basic hand tools (wrenches, screwdrivers, etc.)
• Torque wrench
• Panduit® crimper CT-100
• Panduit® crimper CT-1550
• Hardware bags: 1, 2, 3, 4, 5, 6, 7, 8, and fabricated parts
6.3 Installing the Axle
Materials needed
• Axle
• Hardware bag 1
Installing the axle
1. Lift the machine using appropriate lifting gear. For further information,
see Lifting the Machine on page 29.
2. Locate the axle (1) and hardware bag 1.
wc_gr014359
1
2
3
3
4

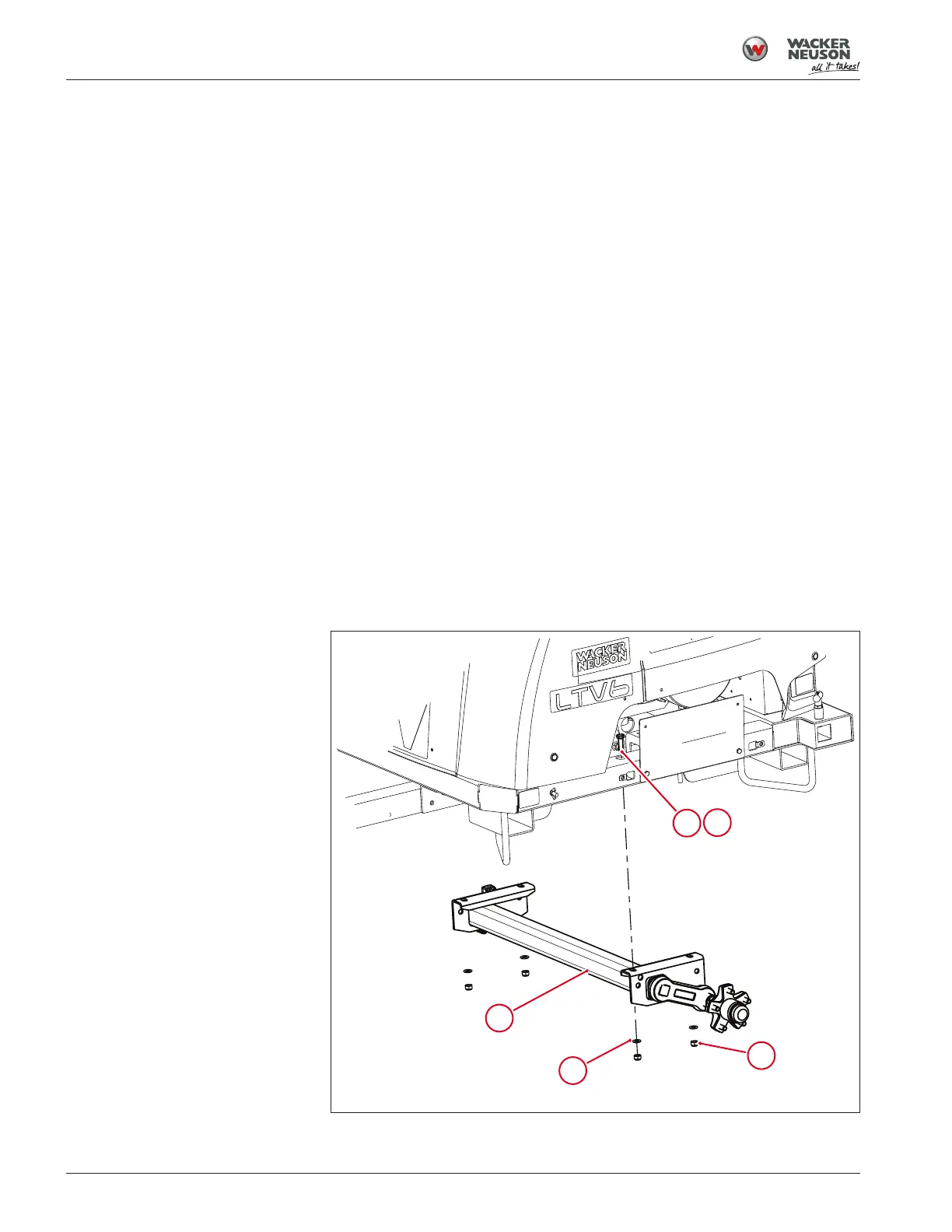

Fig.9: Installing the axle
