Maintenance
Routine Maintenance 8.10
85
[en-US] | 02/2023 | 5100065071 | LTV 4L/6L | Operator’s Manual
• Lamps and fixtures cool to the touch
• Eye and hand protection
Removing the lamp
1. Remove the screws (1) securing the flange rings (2) and remove the
flange rings.

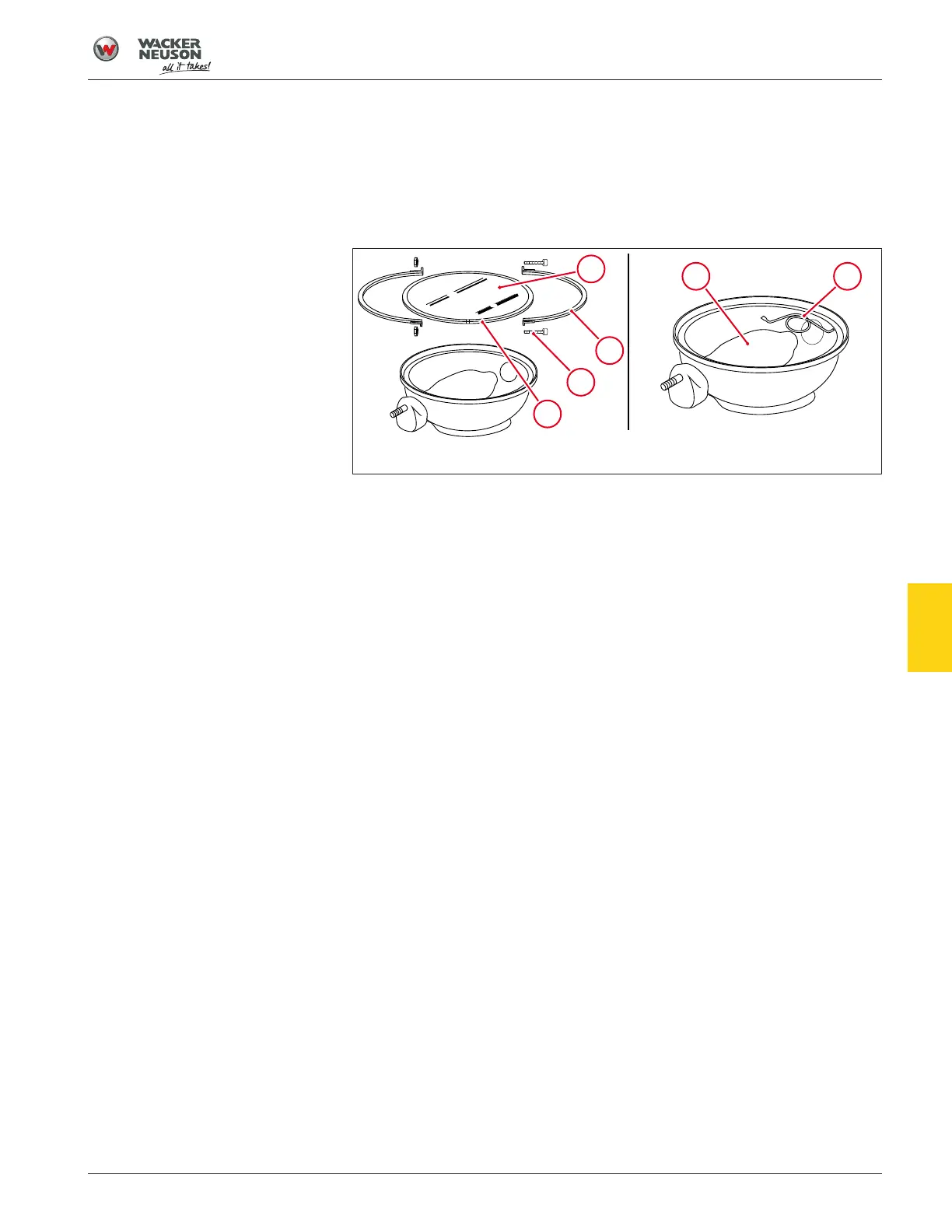

Fig.47: Removing the lamp procedure
2. Remove the lens (3) with the gasket (4) attached.
3. Remove the hardware securing one side of the lamp stabilizer (5).
Once removed, swing the lamp stabilizer to the side and unscrew the
lamp(6).
Installing the lamp
1. Screw the lamp in firmly, but not forcibly, to minimize loosening due to
vibration. Secure it with the lamp stabilizer.
2. Install the gasket around the lens and secure the lens to the reflector
with the flange rings and screws.
8.10 Routine Maintenance
Any kind of maintenance work on the light tower must be carried out by au-
thorized and trained personnel. It should be done in a safe working environ-
ment and with the machine well stabilized. The engine must be stopped and
allowed to cool sufficiently before starting to work on it.
• While performing maintenance work, please use suitable tools and
clothes.
• If you need to work while the engine is running, pay attention to all mov-
ing parts, hot parts, and electrical parts which may be unprotected while
the machine is open.
• DO NOT modify any component if not authorized.
The repairs cannot be considered among the routine maintenance activities,
for example, the replacement of parts that are subject to occasional damage
and the replacement of electric and mechanic components that wear with
use. This kind of work is not covered by warranty.
8
