Operation monitoring
BA RD24_RD27 en 04
105
3.24 Operation monitoring

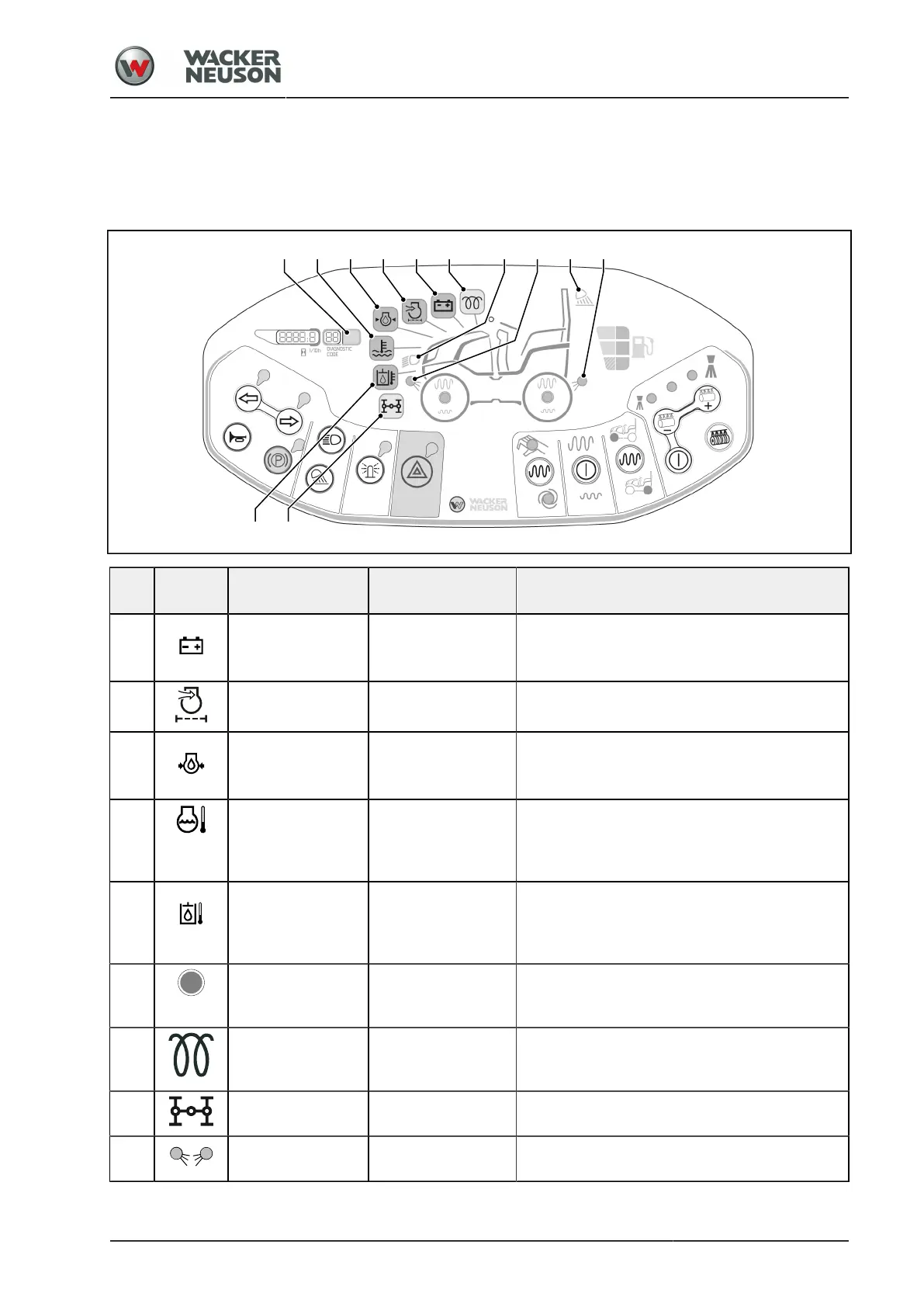

3.24.01 Control panel – Warning and pilot lights
Standard version
9
8
5
1191071
23
4
6
No. Symbol Warning and pi-
lot light
Status Meaning/action
[1] Charge current
(battery)
flashing red No charge current: Check the electrical sys-
tem.
Request assistance from customer service.
[2] Air filter flashing red The air filter cartridge is contaminated.
Check the air filter.
[3] Engine oil pres-
sure
flashing red The engine oil pressure is too low.
Check the engine oil fill level.
[4] Engine tempera-
ture
flashing red Engine temperature is high or the engine has
overheated.
Switch off the engine, check the coolant fill lev-
el, check the radiator.
[5] Hydraulic oil tem-
perature
flashing red Hydraulic oil temperature is high or the hy-
draulic oil has overheated.
Switch off the engine, request assistance from
customer service if necessary.
[6] Serious fault flashing red Indicates a serious fault. At least one warning
light is flashing and an error code is displayed.
Stop using the machine.
[7] Cold start assis-
tance
lit yellow Lights up during preliminary annealing.
Goes out once the start temperature has been
reached.
[8] All-wheel lock lit yellow Lights up when the all-wheel lock is switched
on.
[9] Water sprinkling
system
lit yellow Lights up when the water or additive sprinkling
system is switched on.
