Loosen clamp connection [2] (2 ×).
Replace the scraper [1] by a new one if necessary.
Push scraper [1] to the tyres.
Establish a clearance of 10 mm between the tyres and the scrapers.
Tighten clamp connection [2].

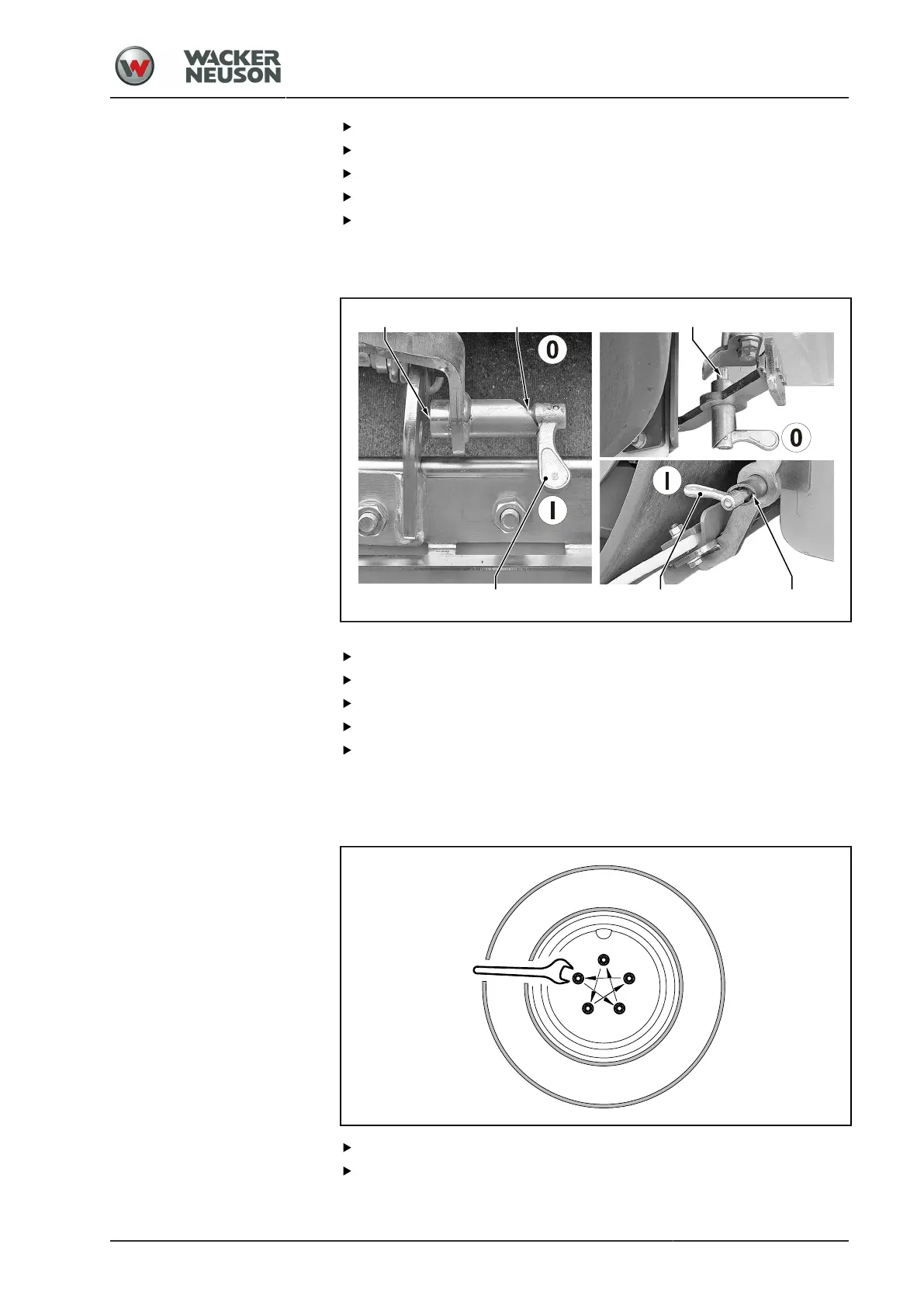

4.06.05 Lubricate the scraper stop lever
2
21
1
2
2
Switch off diesel engine and remove ignition key.
Clean off dirt adhering to the catch.
Turn stop lever [1] to I position.
Lubricate the guide bolt of the locking lever with oil at positions [2].
Move the locking lever to and fro several times between positions 0
and I to distribute the lubricant in the guide.
4.06.06 Check that wheel nuts/wheel bolt connections are tight
Switch off diesel engine and remove ignition key.
Tighten the wheel nuts/wheel bolts crosswise. For tightening torque
see Technical data (see page 175).
