4.06 Transmission
4.06.01 Checking roller drum/tyre scraper
Only scrapers in correct condition ensure a clean roller drum/type
surface.
Check scraper for cleanliness. Clean soiled scrapers.
Check the condition of the scrapers. Replace worn scrapers in good
time.
Check setting of the scrapers. Adjust preset scrapers.
4.06.02 Cleaning roller drum/tyre scraper
Rinse out dirt embedded between scrapers and roller drums/tyres
with water jet.
Remove strongly adhesive dirt with spatula or similar tool.
4.06.03 Replacing/adjusting the roller drum scraper
NOTE
If they are worn-out to such an extent that sticking dirt is not
removed from the roller drums/tyres during work any longer,
the scrapers must be readjusted or replaced.

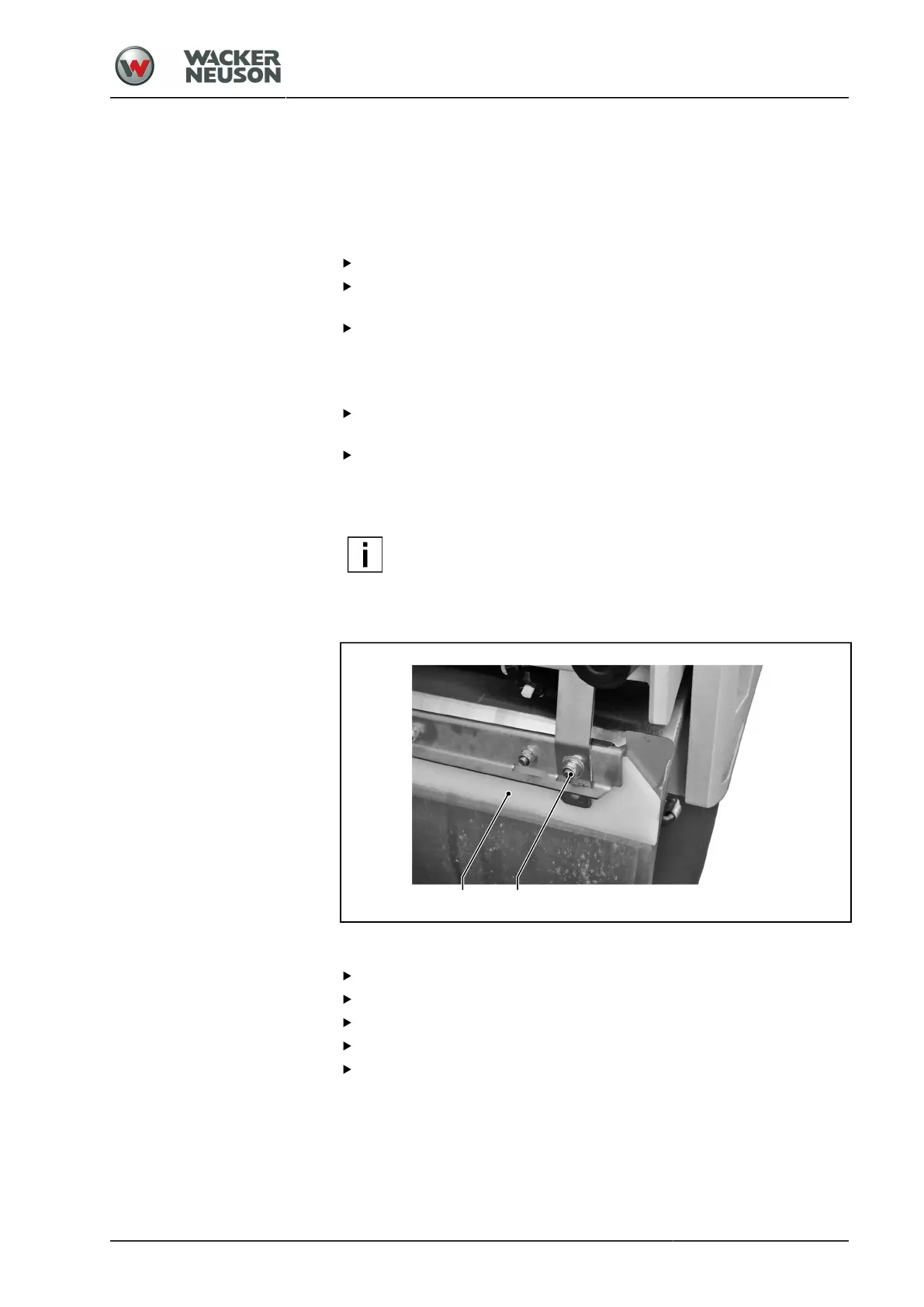

Rigid scraper
1 2
Readjusting/replacing scrapers
Switch off diesel engine and remove ignition key.
Loosen clamp connection [2].
Replace the scraper [1] by a new one if necessary.
Push scraper [1] to the roller drum.
Tighten clamp connection [2].
