Auxiliary equipment
Edge pressing and cutting device (KAG)
204
BA RD24_RD27 en 04
6.05 Edge pressing and cutting device (KAG)

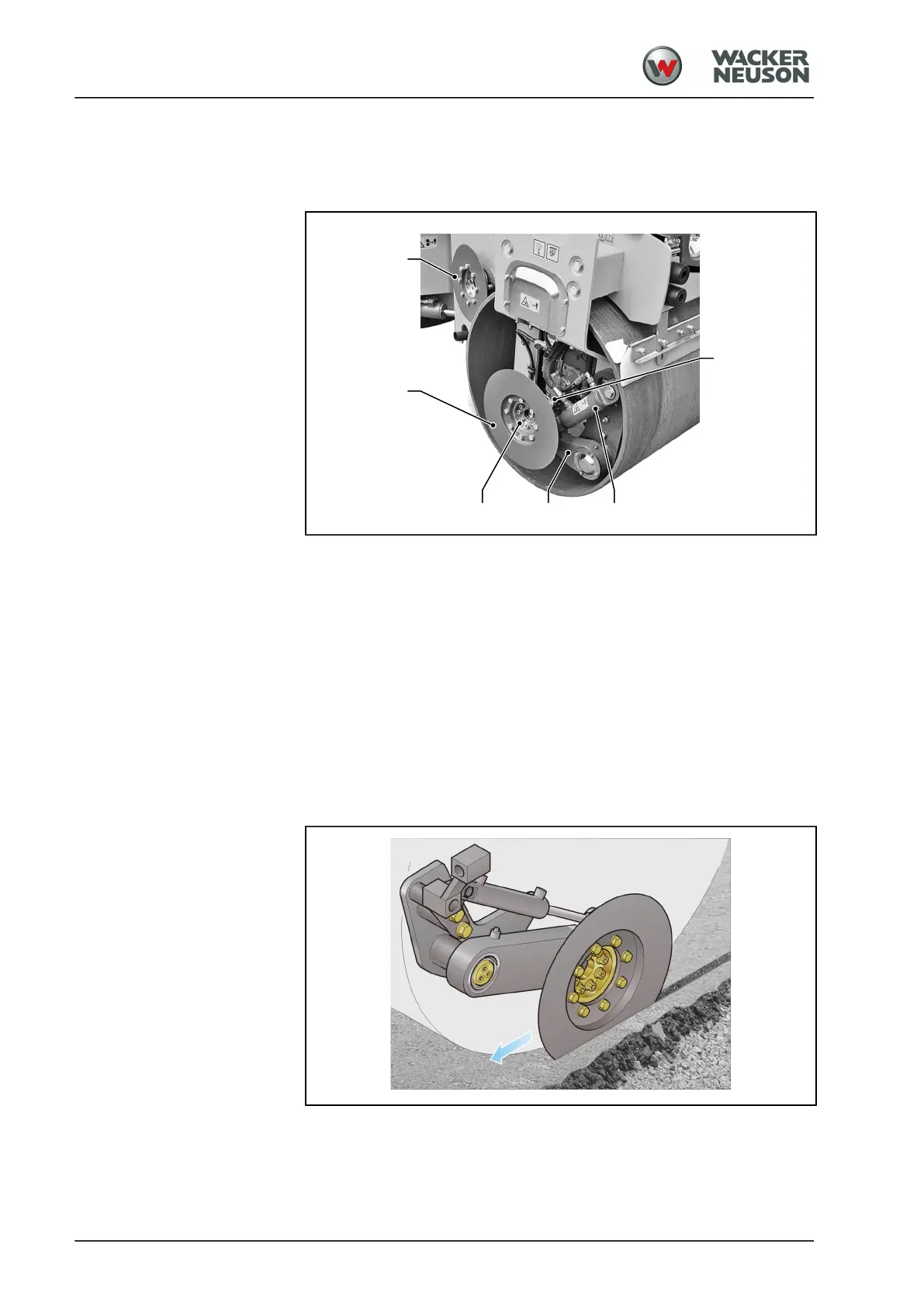

6.05.01 Overview
1
2 3
6
4
5
[1] Tool carrier [2] Lever
[3] Hydraulic cylinder [4] Water spray nozzle
[5] Cutting wheel [6] Pressure roller
6.05.02 Description
The edge pressure and cutting device (KAG) cuts or forms the
longitudinal edges of hot asphalt.
The tool is raised and lowered hydraulically. The water sprinkling
prevents bitumen adhering to the tool.
The cutting discs and pressing roll are exchangeable.
Cutting wheel
The cutting disc trims projections off the asphalt surfaces.
