Operation
Operation monitoring
110
BA RD24_RD27 en 04

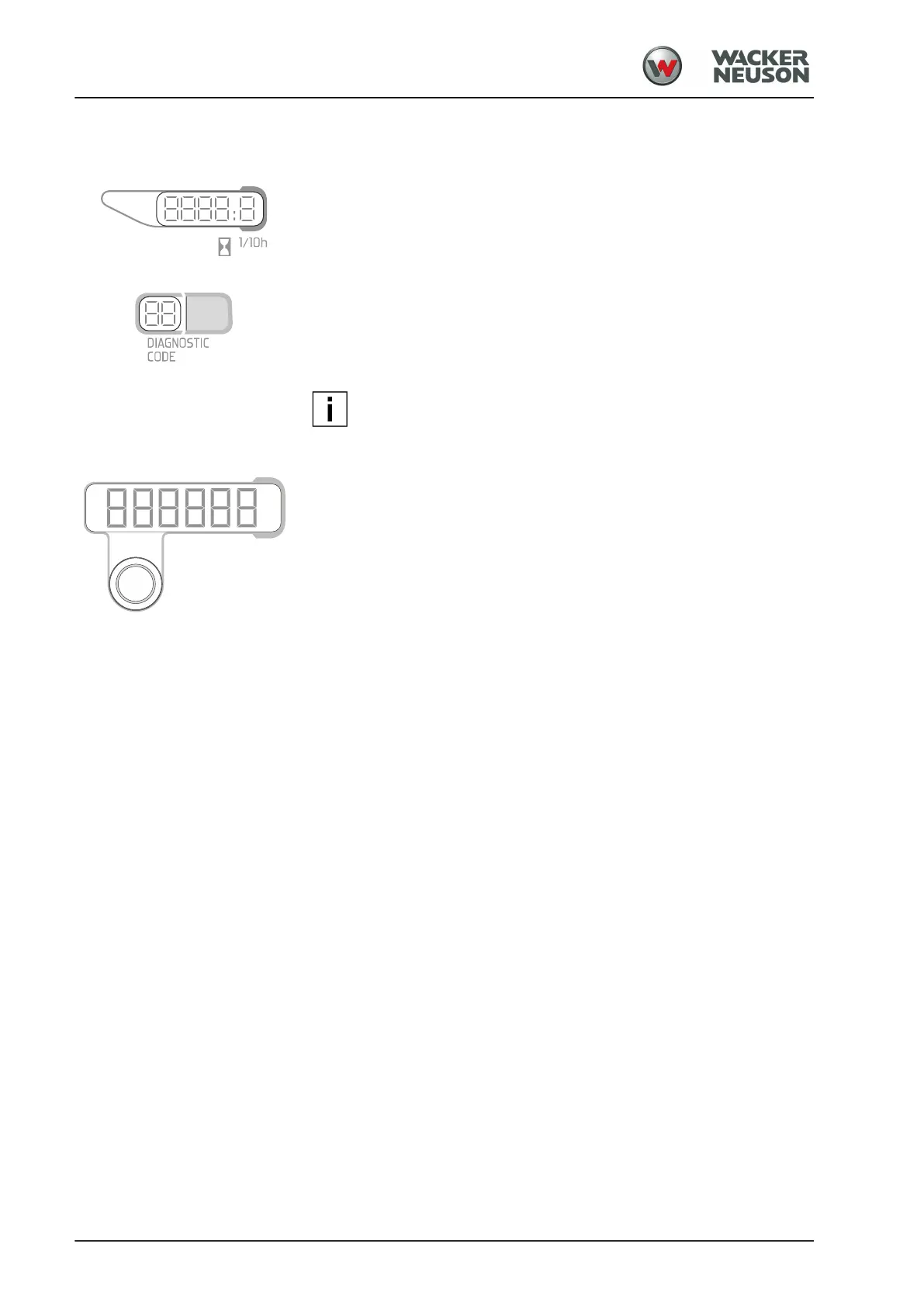

3.24.03 Control panel – Info display/system info
Standard version
Operating hour meter
After the electrical system is switched on, the operating hours of the
machine are shown in the display field.
Maintenance work has to be carried out according to the accumulated
operating hours.
Diagnostic code
During operation, faults in the machine are indicated by flashing pilot
lights. A number code in the display denotes the specific fault.
Table for diagnostic codes: see page 191
NOTE
After switching on the electric system, an internal test code is
displayed for 2 seconds.
Version with auxiliary equipment
The driver can used this further developed display unit to access
information about the machine status, settings and system messages.
In the "System info" menu, you can choose between two levels by
pressing and holding the switch.
Within the levels, you can change between various displays by briefly
pressing the switch.
Level 1
■
Operating hours
After the electrical system is switched on, the operating hours of the
machine are shown in the display field.
Maintenance work has to be carried out according to the accumulated
operating hours.
■
Engine speed
It is not possible to display the engine speed (display: RPM ----).
■
Asphalt temperature (if a system for measuring the asphalt
temperature is installed)
Asphalt temperature display under the machine in °C or °F.
■
Diagnostic code
A short acoustic signal sounds when a fault is detected. The display
shows all the existing faults one after the other in the form of
diagnostic codes.
→ Press and hold the switch to change to level 2.
Level 2
■
Roller type e.g. RD 24-100
■
Dashboard software version
■
Compaction computer software version
