Auxiliary equipment
Edge pressing and cutting device (KAG)
206
BA RD24_RD27 en 04

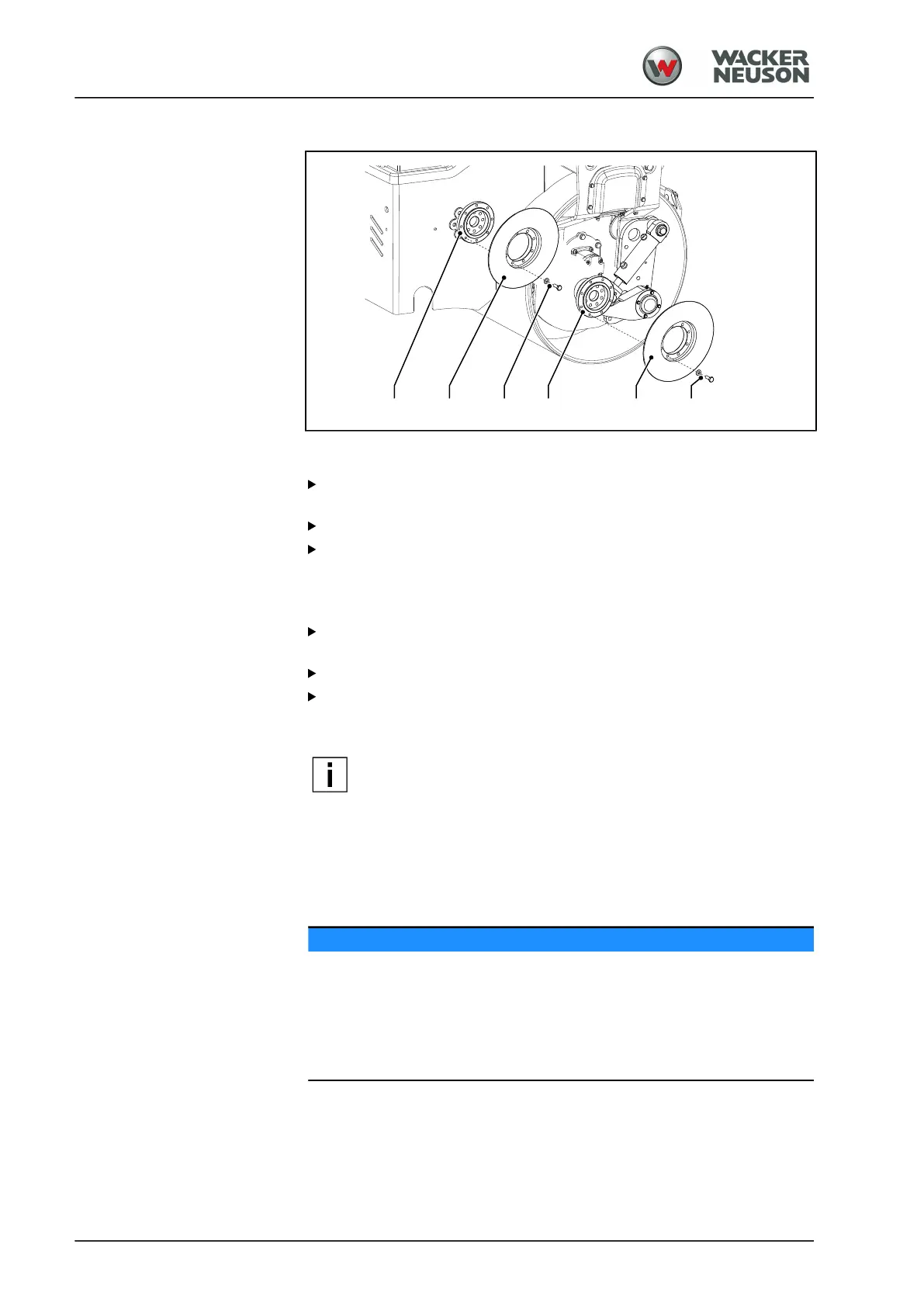

Dismounting/Mounting
Mounting tool
Remove the tool [1] from the flange [3] at the holder. Loosen 8 screws
and washers [4].
Put the tool [1] on the flange [2] at the KAG lever arm.
Fasten the tool [1] to the flange [2] using 8 screws and washers [4]
(observe the tightening torque).
Dismounting tool
Remove the tool [1] from the flange [2] at the KAG lever arm:
Loosen 8 screws and washers [4].
Put the tool [1] on the flange [3] at the holder.
Fasten the tool [1] to the flange [3] using 8 screws and washers [4]
(observe the tightening torque).
NOTE
As an alternative, the tool can be removed from the lever arm
or from the holder together with the flange.
In this case, the flange is put on the centring guide and
fastened by 2 screws in order to install it at the holder.
8 screws are used for installation at the lever arm.
6.05.04 Operation
NOTICE
Unfavorable force transmission!
Material damage to the edge pressure and cutting device (CTR) as a
result of unfavorable force transmission.
■
Work with the KAG only when driving forwards.
■
Use only to work on hot, malleable asphalt.
