Auxiliary equipment
Edge pressing and cutting device (KAG)
BA RD24_RD27 en 04
207

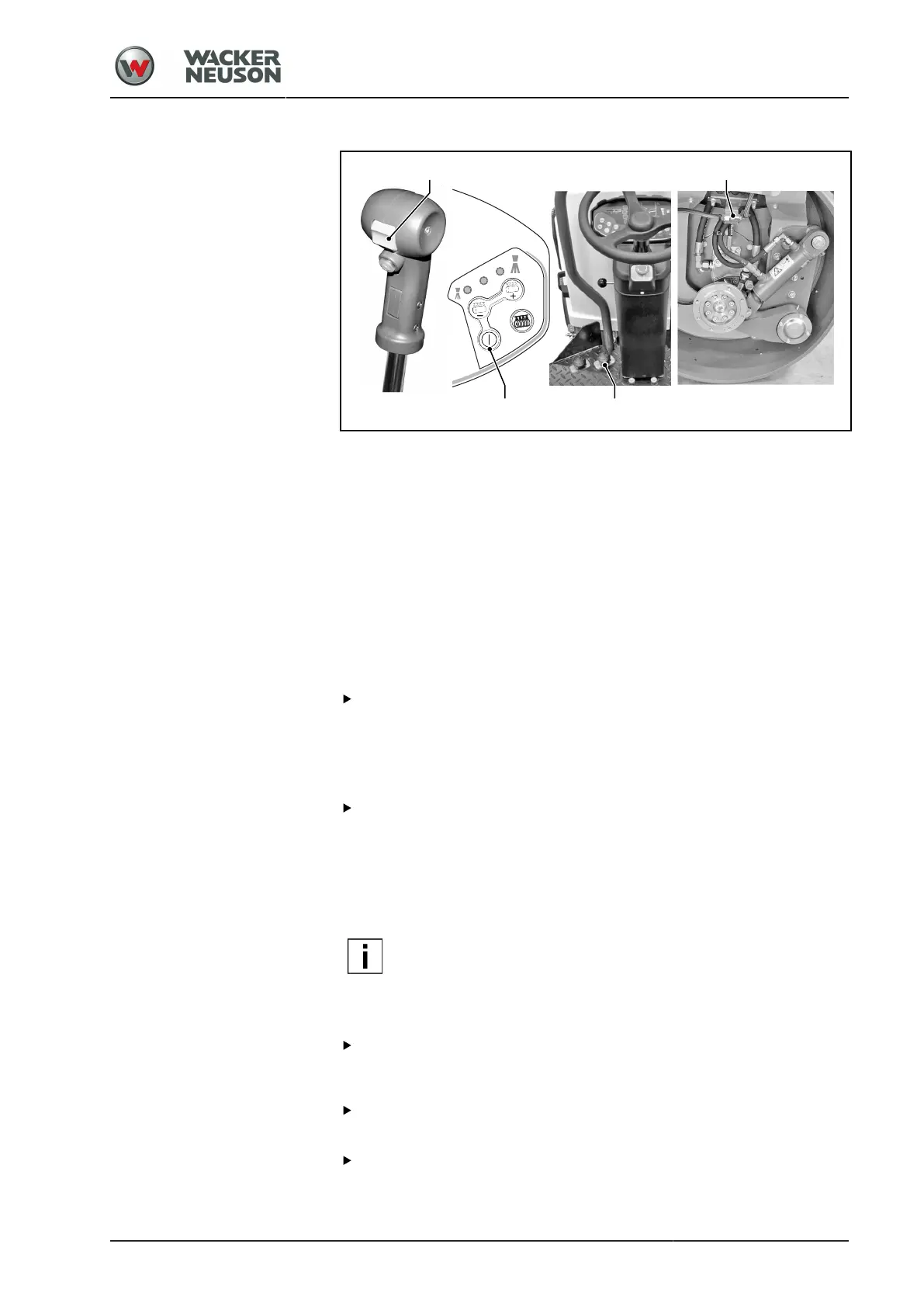

Overview of controls
2
3
1
4
[1] KAG switch [2] Switch for water sprinkling
system
[3] Foot-operated switch for water
sprinkling system
[4] KAG sprinkler stop cock
The switch [1] on the driving lever controls lifting and lowering of the
KAG.
On the version with KAG on both sides, the KAG is actuated using the
switch on the lever on the relevant side.
Lifting and lowering the KAG
Lower KAG
Press the switch [1] down at the drive lever until the desired position
is reached.
a
The KAG lowers and comes into operation.
Lift KAG
Press the switch [1] up at the drive lever until the desired position is
reached.
a
The KAG raises from the asphalt surface.
Sprinkling system
KAG sprinkler
NOTE
The KAG sprinkler is supplied via the roller drum sprinkling
pump.
The KAG will only be sprinkled if water sprinkling is switched
on for the roller drums.
Open the stop cock [4].
a
The KAG sprinkler is connected to the water sprinkler of the roller
drums.
Press switch [2].
a
Interval sprinkling is on.
Press switch [2] again.
a
Interval sprinkling is off.
