Wacker Neuson RD24 User Manual

Operation

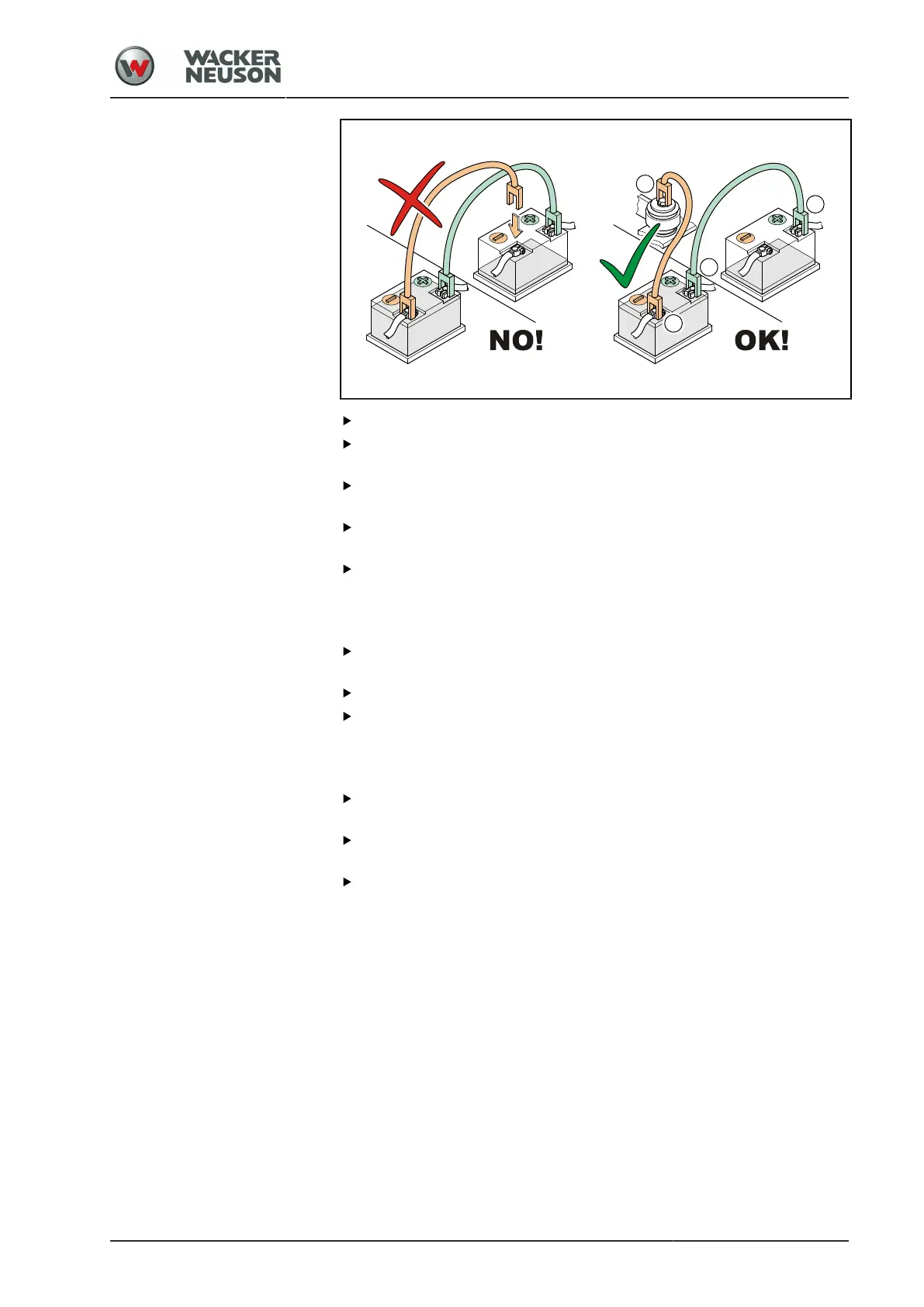

Start with jump leads
BA RD24_RD27 en 04
119
4
2
1
3
Remove the terminal caps from the poles of the batteries.
Connect the pole terminal [1] of the first lead to the positive pole of
the charged battery.
Connect the other terminal clamp [2] of the first lead to the positive
terminal of the discharged battery.
Connect one terminal clamp [3] of the second lead to the negative
terminal of the charged battery.
Connect the other terminal clamp [4] of the second lead with the
ground of the discharged vehicle.
Starting process
Start the engine of the charging vehicle and let it run with medium
engine speed.
Start the diesel engine of the discharged vehicle after approx. 5 min.
For approx. 3 min let both engines run with medium engine speed
and the jump leads connected.
Removing jump leads from the batteries
Switch on an electric consumer on the discharged vehicle (e.g.
driving light) in order to avoid overvoltages in the electrical system.
Remove the jump leads in reverse order: Disconnect pole terminal
[4], then [3], then [2], then [1].
Put the terminal caps on the poles of the batteries.
