Auxiliary equipment
Rotating beacon
198
BA RD24_RD27 en 04

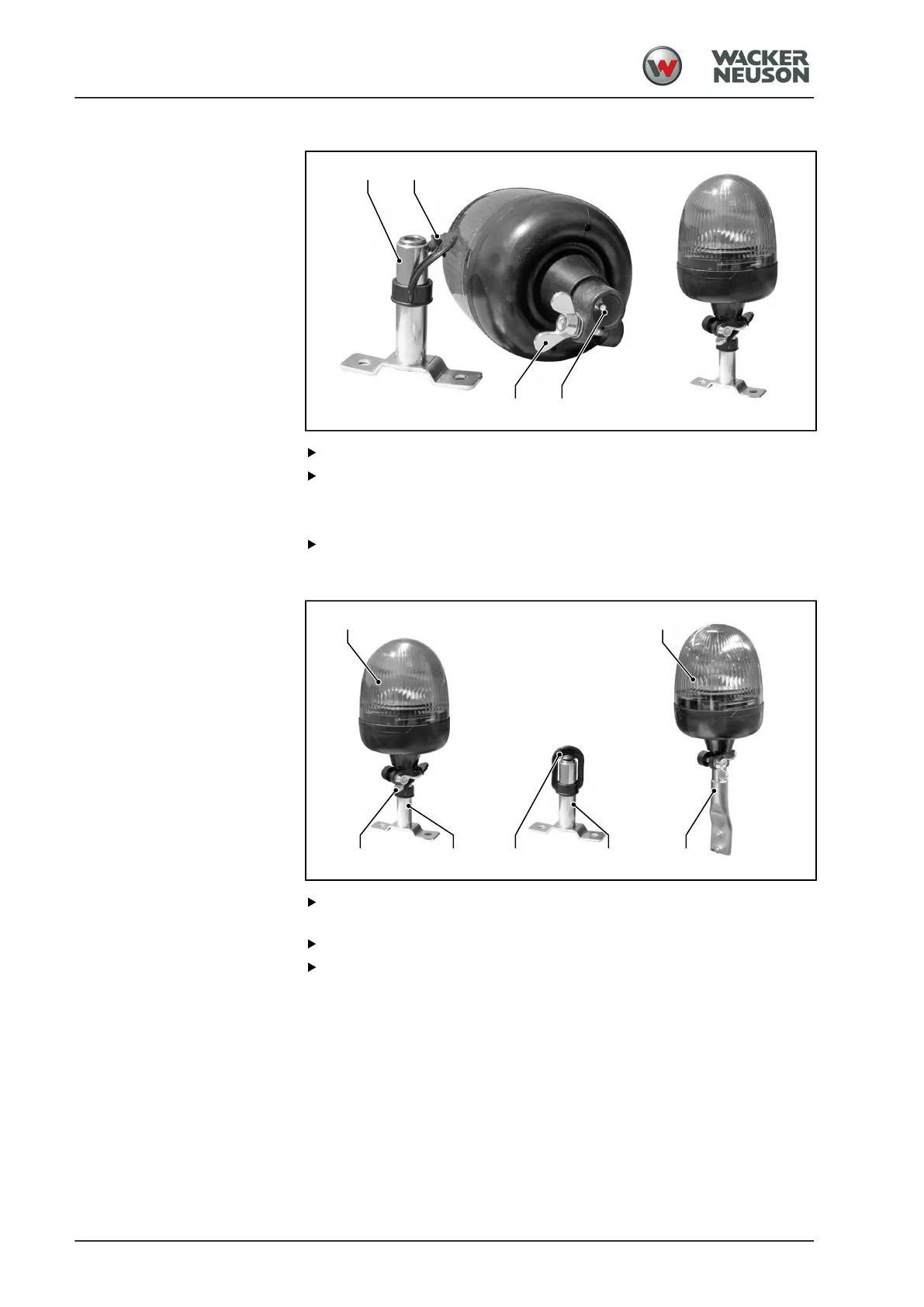

Mounting rotating beacon
1
4 3
2
Swivel the protective cap [2] to the side.
Put the locating hole [3] of the rotating beacon on the contact tube [1]
and slide it up to the stop.
a
The electrical connection has been made.
Tighten clamping screw [4].
Dismounting/removing rotating beacon
3
1
4
2 2 5
3
Unscrew the clamping screw [4] and slide the rotating beacon [3] off
the contact tube [2].
Close the contact tube [2] with the protective cap [1].
Stow the rotating beacon [3] on the holder [5] inside the cab.
