Auxiliary equipment
Edge pressing and cutting device (KAG)
BA RD24_RD27 en 04
209

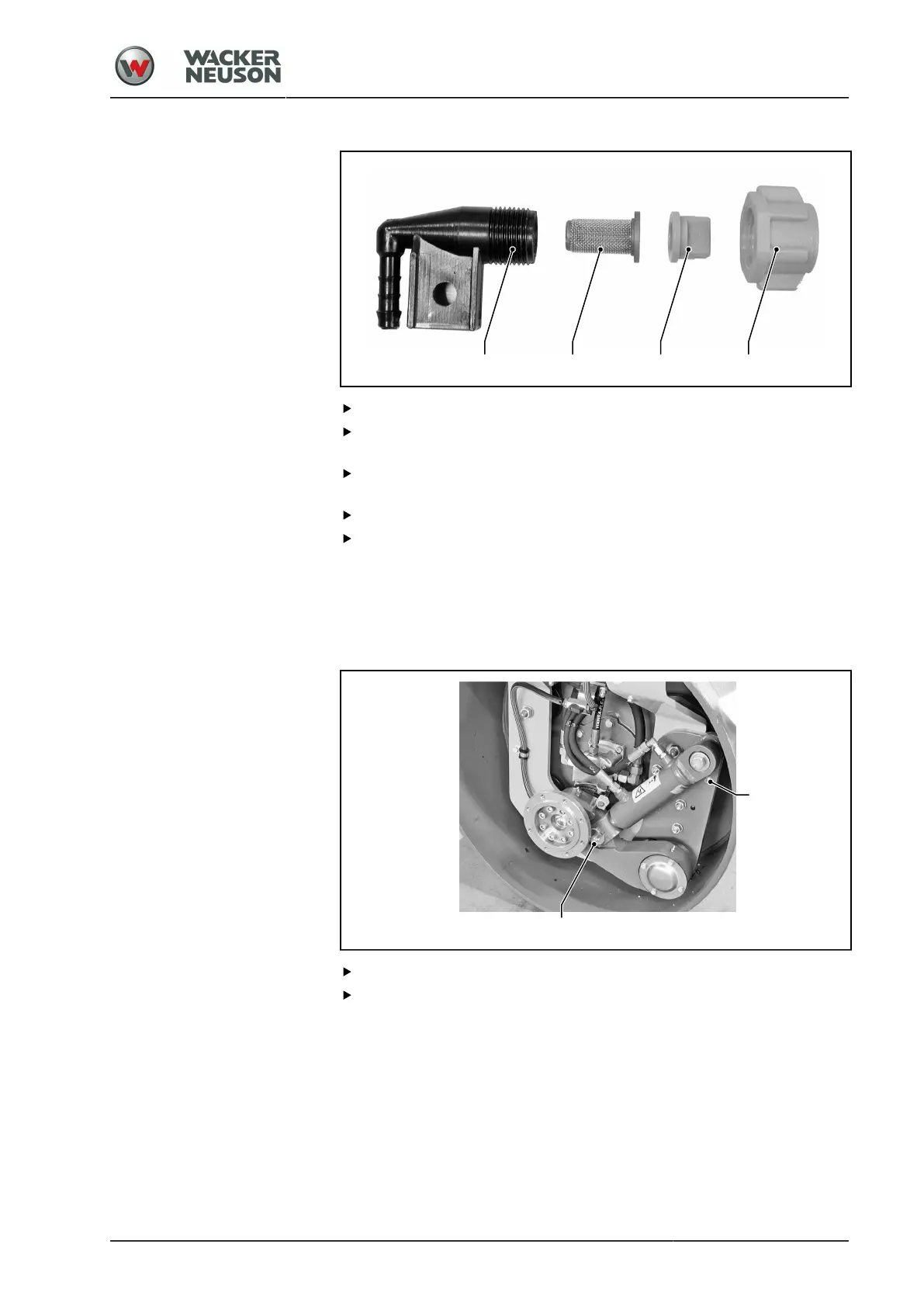

Cleaning sprinkler nozzles
1
2 3 4
Switch off diesel engine and remove ignition key.
Loosen the cap nut [4] and remove it together with spray nozzle [3]
and filter [2] of casing [1].
Loosen the cap nut [4] and remove it together with spray nozzle [3]
and filter [2] of casing [1].
Flush the pipeline and housing [1] with the water sprinkling system.
Insert spray nozzle [3] and filter [2] in union nut [4] and screw them
onto the casing [1] together.
Lubricating KAG cylinder bolts
" Lubricant only admissible if containing this marking ("Technical data",
page 165 sqq.).
1
1
Switch off diesel engine and remove ignition key.
Lubricate lubrication nipple [1] (2 nipples).
Lubricate the KAG lever bearing
" Lubricant only admissible if containing this marking ("Technical data",
page 165 sqq.).
