Operation
Safety strut
BA RD24_RD27 en 04
59

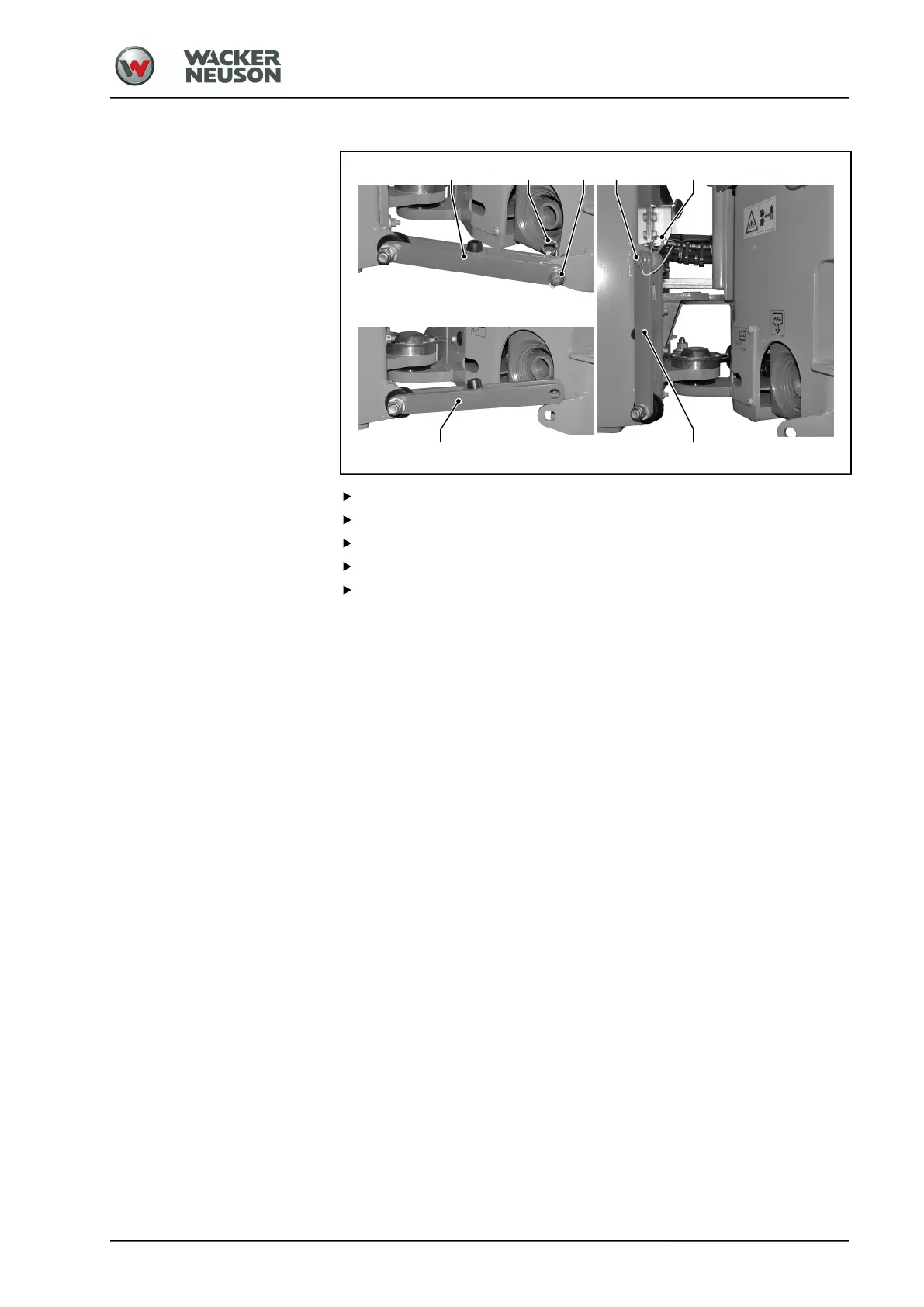

Releasing safety strut
1
3 3
2
1
23
Pull the spring cotter pin [1] out of the bolt [2].
Pull out the bolt [2].
Swing the coupling bar [3] upwards and press it down.
Use the bolt [2] to lock the coupling bar [3] in place.
Slide the spring cotter pin [1] into the bolt [2].
a
The safety strut is released.
