MANUAL OPERATION USING THE BRAKE DISCONNECT CABLE
4. Either side of the gate can now be manually
moved. To move the gate for a column either
push or pull on the inner (middle) hinged
secon between the gate panels for the
corresponding column. DO NOT FORCE; the
panel should move freely with lile force
applied.
5. Once all work/maintenance around and/or on
the gate has been completed you may return
the gates to their original posion before they
were manually moved. (If the gates are to be
le open proceed to step 6.)
6. Make sure the gate is not moving.

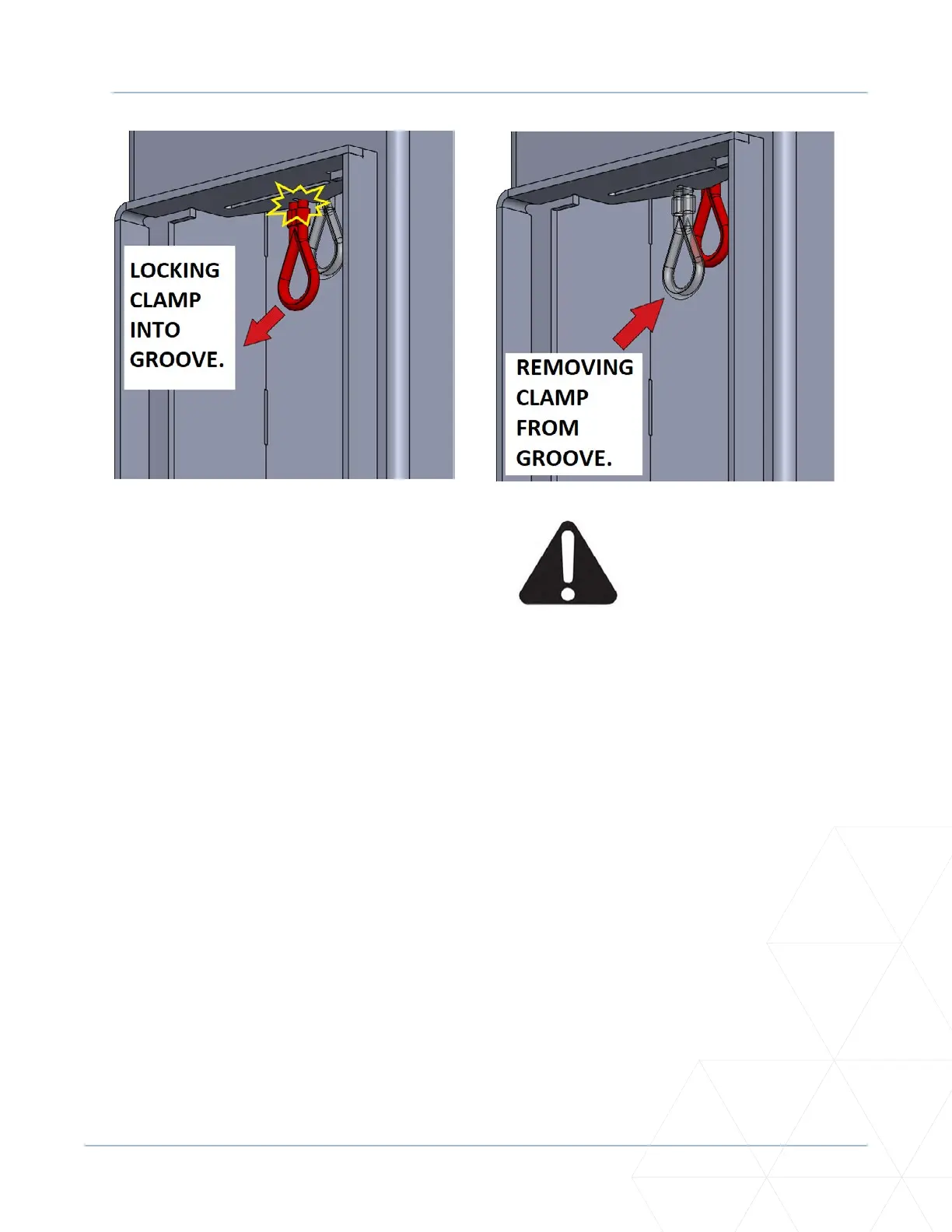

7. In one column pull down on the cable and
remove it from the groove. It should now
be free hanging which re-engages the brake.
Repeat for the other column.
If the gates are to be
manually operated or
to be le open for an
extended period of me it is
recommend that the Lower
Access Doors are placed
back on the column so that
the gates are secure.
8. The Lower Access Doors may now be placed
back on the gate.
9. If the gates are to be placed back in to
automac operaon the operators may be
powered ON. The gate is now ready to be
automacally operated. Use your typical
acvaon method to return gate to normal
operaon.
