SPEEDGATE INSTALLATION
Operator Cabinet Installaon Consideraons
For mounng the Operator Cabinet you are advised to consider the following.
• Mount the Operator Cabinet in a secure locaon. It is recommended to be mounted on the secure
side of the fence line.
• The operator enclosure can be located up to 30 feet (9.1 meters) overall run distance away from the
gate, provided it is within sight from the gate structure.
• Mount the Operator Cabinet in a locaon as near as is praccal to the SpeedGate so as to minimize the
electrical wiring requirements between the SpeedGate and the Operator Cabinet.
• Mount the Operator Cabinet in a locaon that allows a direct line of sight between it and the SpeedGate
so that prior to any operaon of the gate the area can be scanned for obstrucon consideraons.
• Mount the Operator Cabinet in a locaon which allows adequate work space around it and will not
place the installer within reach of either the moving gate panels or vehicle trac. A minimum distance
of 6 feet (1.8m) is set forth in UL 325 for all controls which can operate the gate.
• Mount the Operator Cabinet in a locaon that facilitates the wiring of the vehicle detector loop leads
to the Operator Cabinet.

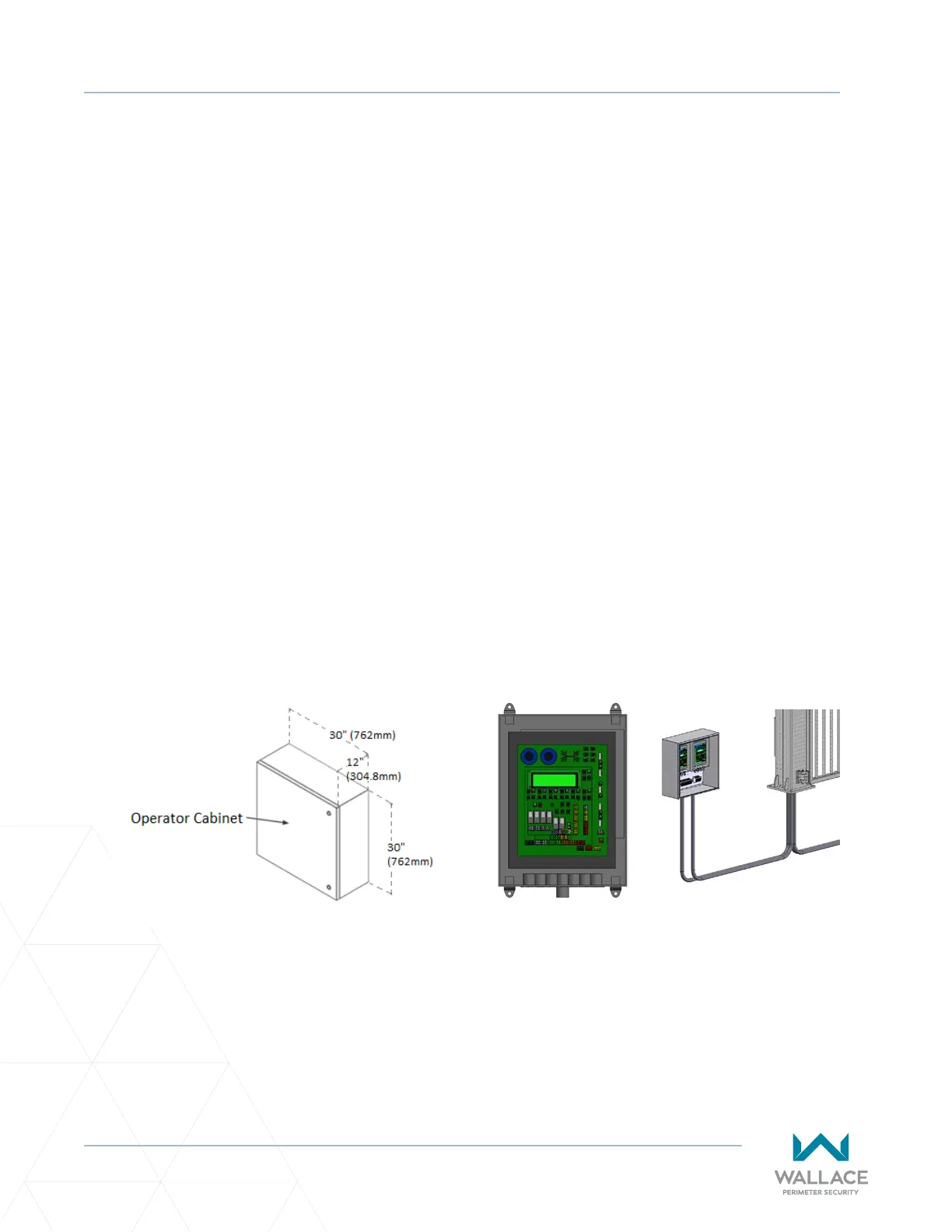

The Operator Cabinet’s dimensions and mounng holes are shown on Figure 12.
Figure 12. Operator Cabinet Mounng Holes
