Wascomat Clarus Control SU620 - Page 162

162
8
9

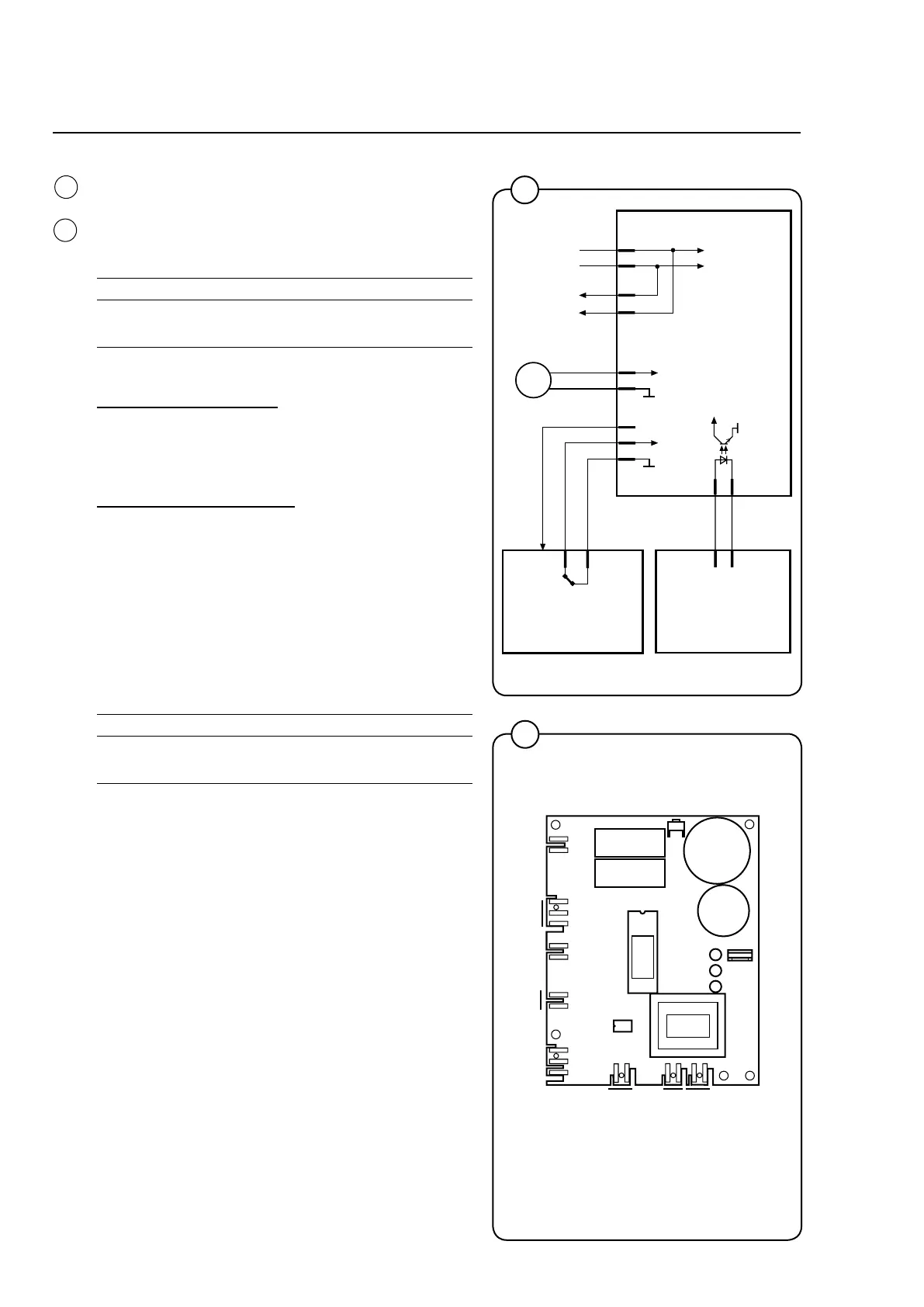

Door and door lock
9
8
5932
Door lock control A31
X90
X91
1
2
1
2
200-
240 V
Voltage
supply to A1
Level guard
B2
Motor control U1
1
2
1 2
1
3
X93
X94
X92
1 2
X31
Programme unit A1
1 3
X304
2
Tacho-
signal
5928
X96 X94 X95
X97X93
X92
X91
X90
1
1
1
1
1
1
1
1
IC6
(K2) (K1)
X90
X91 X92
X93
X94
X93: Input from level guard
If the input indicates “Water in drum” when the
door is not locked, the door cannot be locked.
The LEDs then show the error code l l m.
Input voltage Function
5 V DC: Water in drum (level guard open)
0 V: Drum empty (level guard closed)
X94: Input from motor control
Only when door is open
If the input indicates “Motor operating”, the door
cannot be locked. The LEDs then show the error
code m l l.
Only when door is locked
The input signal from X94 is compared with the
signal from the rotation sensor B3 (input X95).
If the motor is operating, but the rotation sensor
does not provide a signal, error code l m m is
shown.
If the rotation sensor indicates motor operation
when the motor is not operating, error code
m l m is shown.
Input voltage Function
5 V DC: Motor not operating (input open)
0 V: Motor operating (input closed)
