Wascomat Clarus Control SU620 - Page 163

163

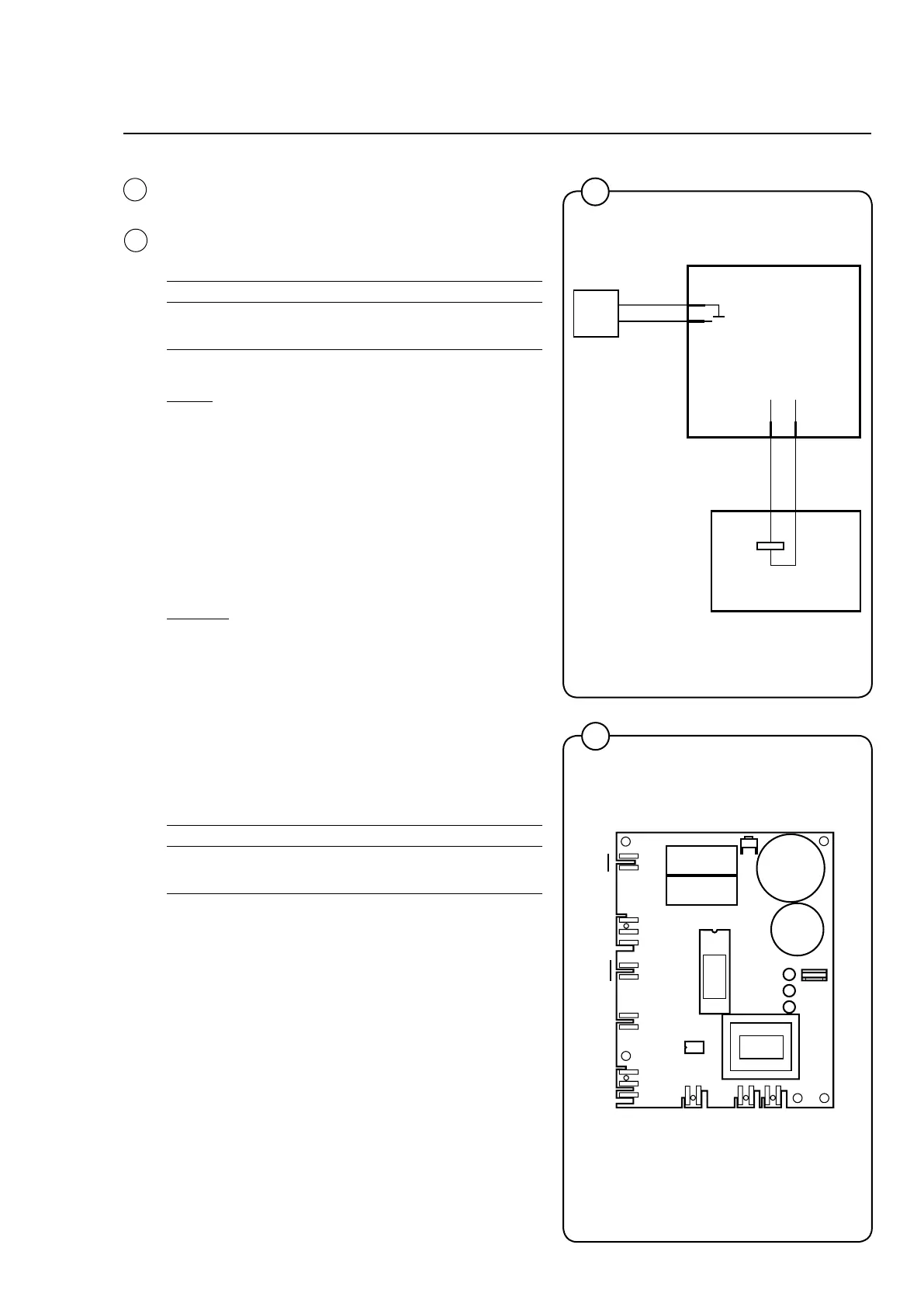

Door and door lock
10
11
11
10
5933
Door lock control A31
X95
1
2
Tacho generator
B3
X96
1
2
Door lock A41
Y80
Unlocks + -
Locks - +
5928
X96 X94 X95
X97X93
X92
X91
X90
1
1
1
1
1
1
1
1
IC6
(K2) (K1)
X96
X95
X95: Input from rotation sensor on motor
shaft
When the motor is operating, a pulse train is
applied on the input.
Input Function
Pin 1: 0 V
Pin 2: Tacho signal
X96: Output to door lock
Locks the door lock when the following condi-
tions are met:
• DC200-240VoninputX92(programmeunit
requests door locking).
• DC0VoninputX93(nowaterindrum).
• DC+5VoninputX94(motornotoperating).
• <3HzoninputX95(drumnotrotating).
• Noerrorcodepresent.
Unlocks the door lock when the following condi-
tions are met:
• DC0VoninputX92(programmeunitre-
quests door unlocking).
• DC0VoninputX93(nowaterindrum).
• DC+5VoninputX94(motornotactivated).
• <3HzoninputX95(drumnotrotating).
• Noerrorcodepresent.
Voltage Function
17-31VDC,+onpin1,-onpin2 Unlocksthedoor
17-31VDC-onpin1,+onpin2 Locksthedoor
