4. Cut a length of 12-mm tubing long enough to connect the exhaust trap bottle to the
laboratory exhaust system.
5. Insert one end of the tubing into the remaining port on the exhaust trap bottle, and route
the other end to the laboratory exhaust system.
Note: To avoid damaging the instrument, power it off when connecting the solenoid cable.

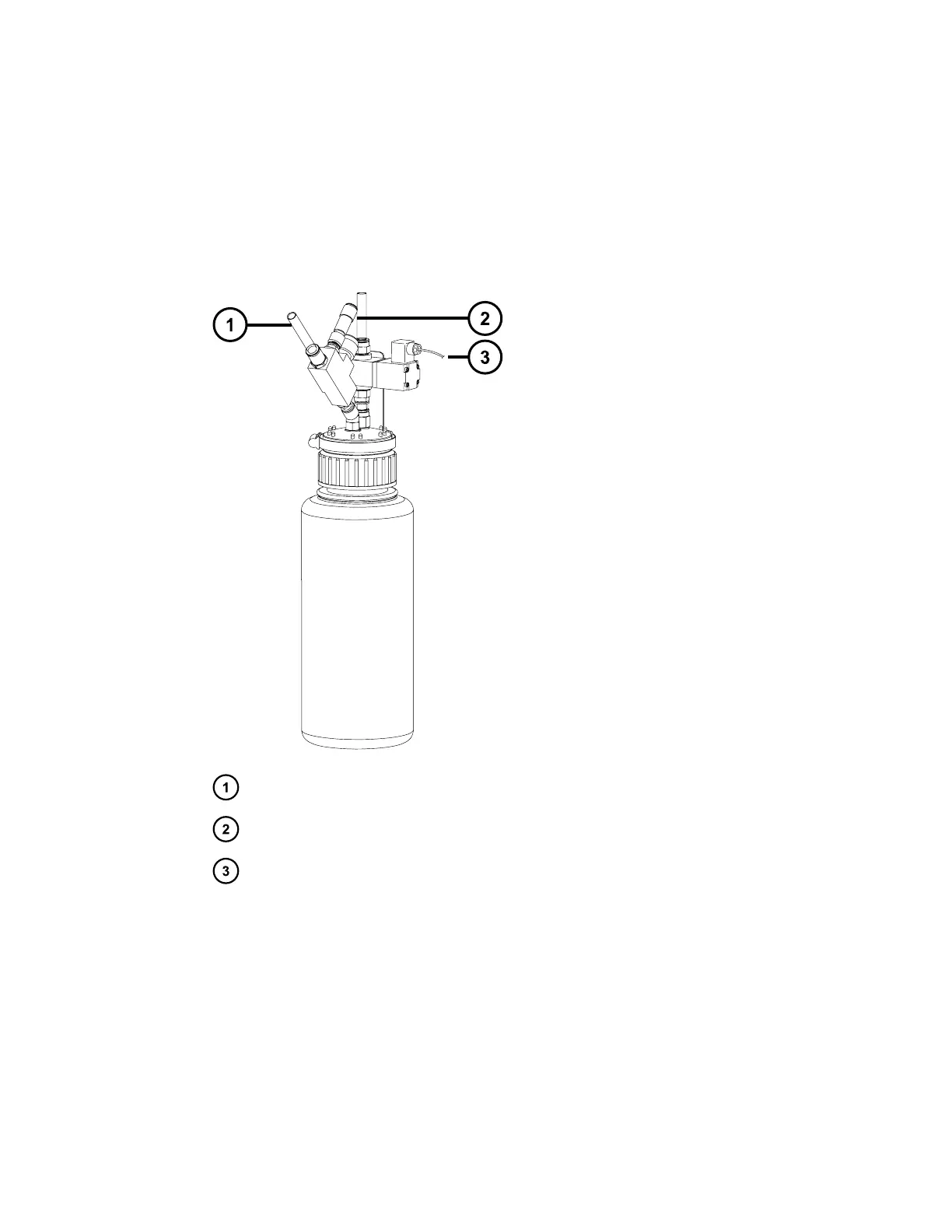

Figure D–16: Exhaust trap bottle
From instrument exhaust connection (12-mm OD)
To laboratory exhaust port (12-mm OD)
Exhaust solenoid cable
D.8.1 Connecting the exhaust solenoid cable
To connect the exhaust solenoid cable:
1. Connect the exhaust solenoid cable to the port on the exhaust trap bottle.
