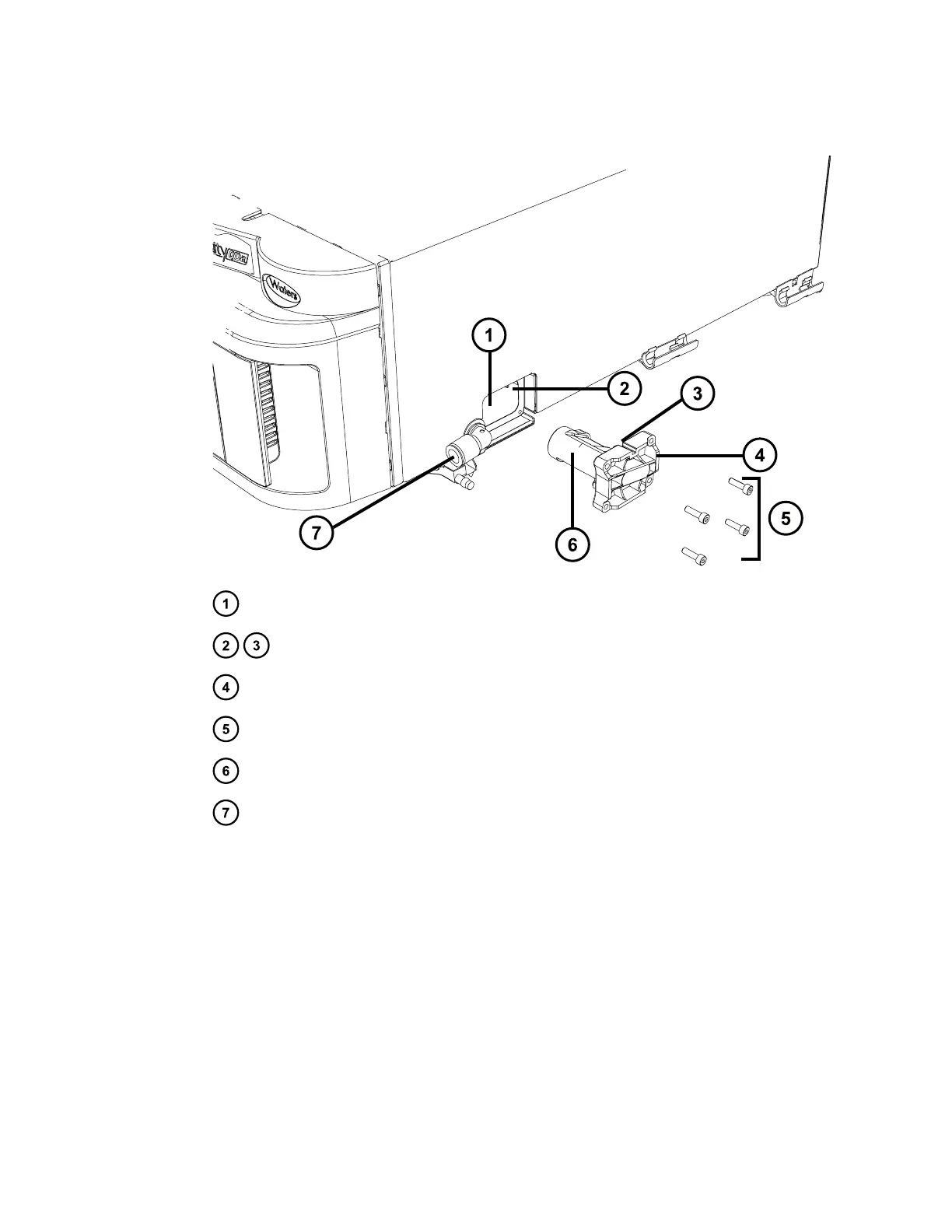

Figure 3–18: Removing the source exhaust valve
Source valve enclosure
Alignment key and grip panel keyway
Valve grip panel
Retaining screws
Source exhaust valve
Source exhaust tube elbow connector
4. Dispose of the source exhaust valve in accordance with local environmental regulations.
3.16.2
Fitting the source exhaust valve
Perform the following procedure to fit the source exhaust valve into the enclosure.
Required materials
• Chemical-resistant, powder-free gloves
• 5-mm hex wrench
• Source exhaust valve (289010426)
