• The ON and OFF commands configured in Empower ICS 1.68 method events are labeled
"ON/Flow to QDa" and "OFF/Flow to Waste".
• The Pulse command that appears in MassLynx method events is not active.
Example configuration for operating the valve using programmed and manual
actuation:

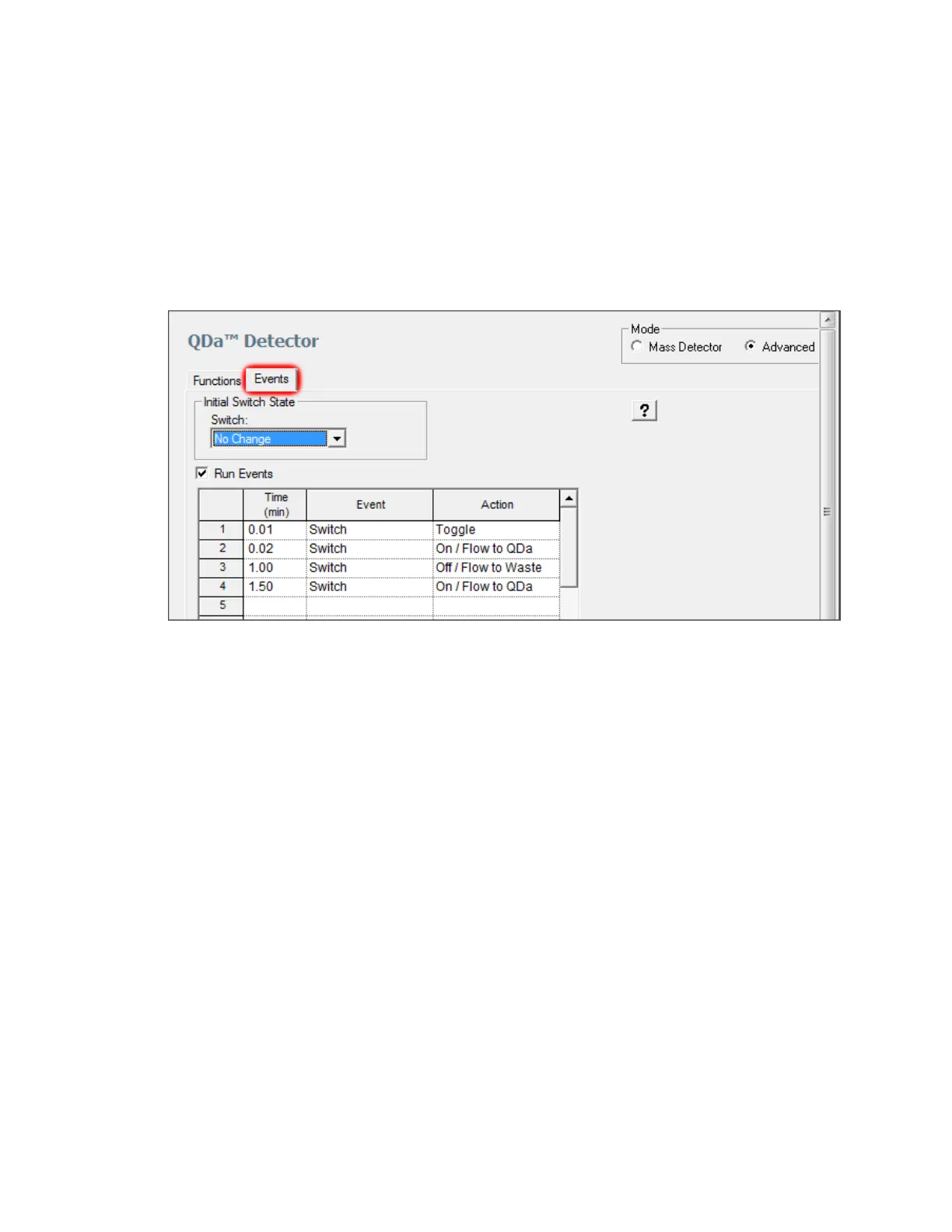

Figure E–10: Diverting flow to waste between 1 minute and 1.5 minutes
Notes:
• The events can be configured according to your requirements.
• The example is taken from the ACQUITY QDa Detector ICS, version 1.68.
E.3.2
Manually operating the diverter valve
Manually operate the ACQUITY diverter valve by pressing the front-panel buttons.
June 15, 2017, 715003956 Rev. F
Page 127
