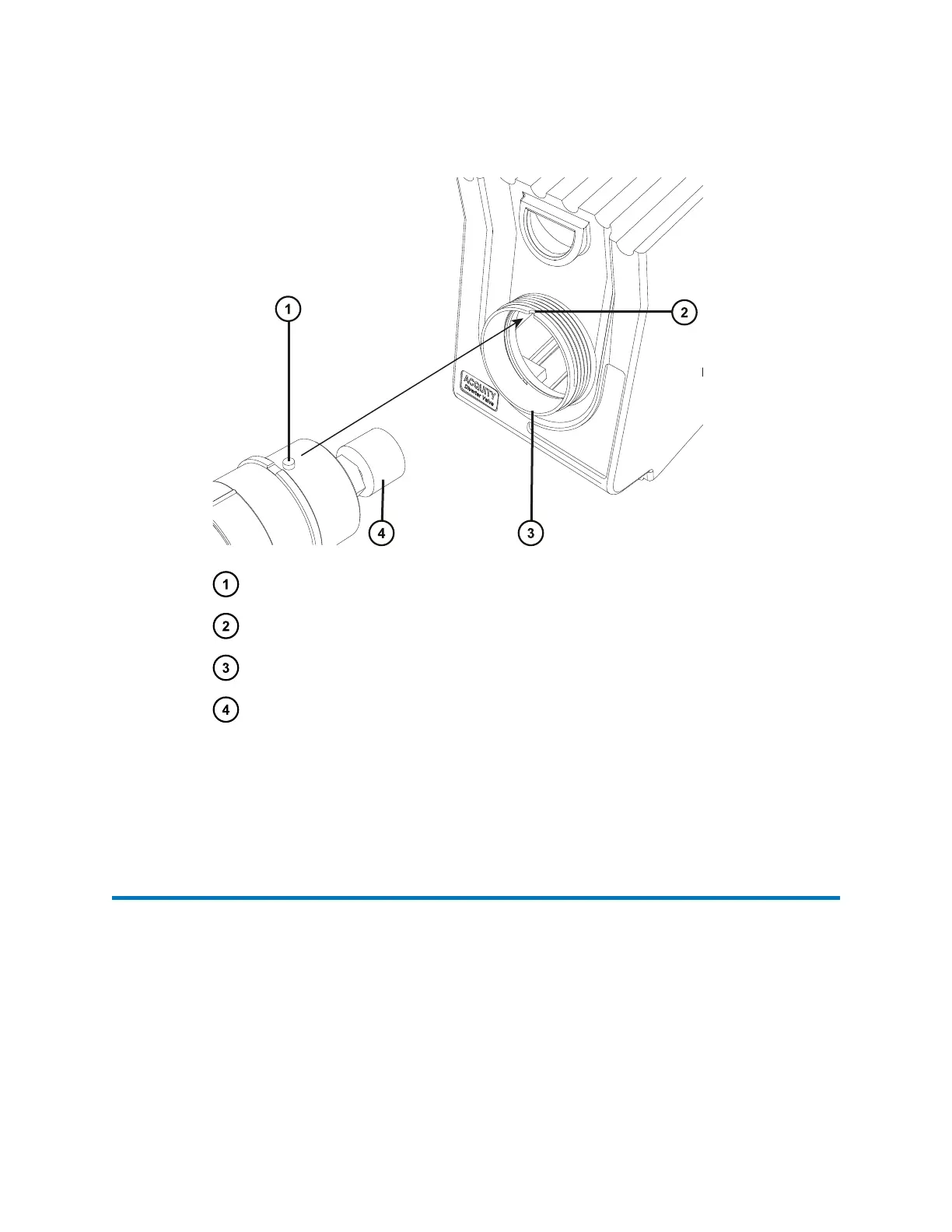

Figure E–14: Aligning the diverter valve pod key with the keyway on the cuff of the
valve casing
Pod key
Alignment keyway
Valve pod cuff
Spindle
7. Screw the pod collar onto the pod cuff on the valve.
8. Inspect the tubing and fittings prior to reconnecting, and replace these if signs of damage
or leaking are visible.
E.5
Removing the diverter valve assembly
Required materials
• 1/4-inch hex nut socket wrench supplied with the ACQUITY Diverter Valve Assembly Kit
June 15, 2017, 715003956 Rev. F
Page 134
