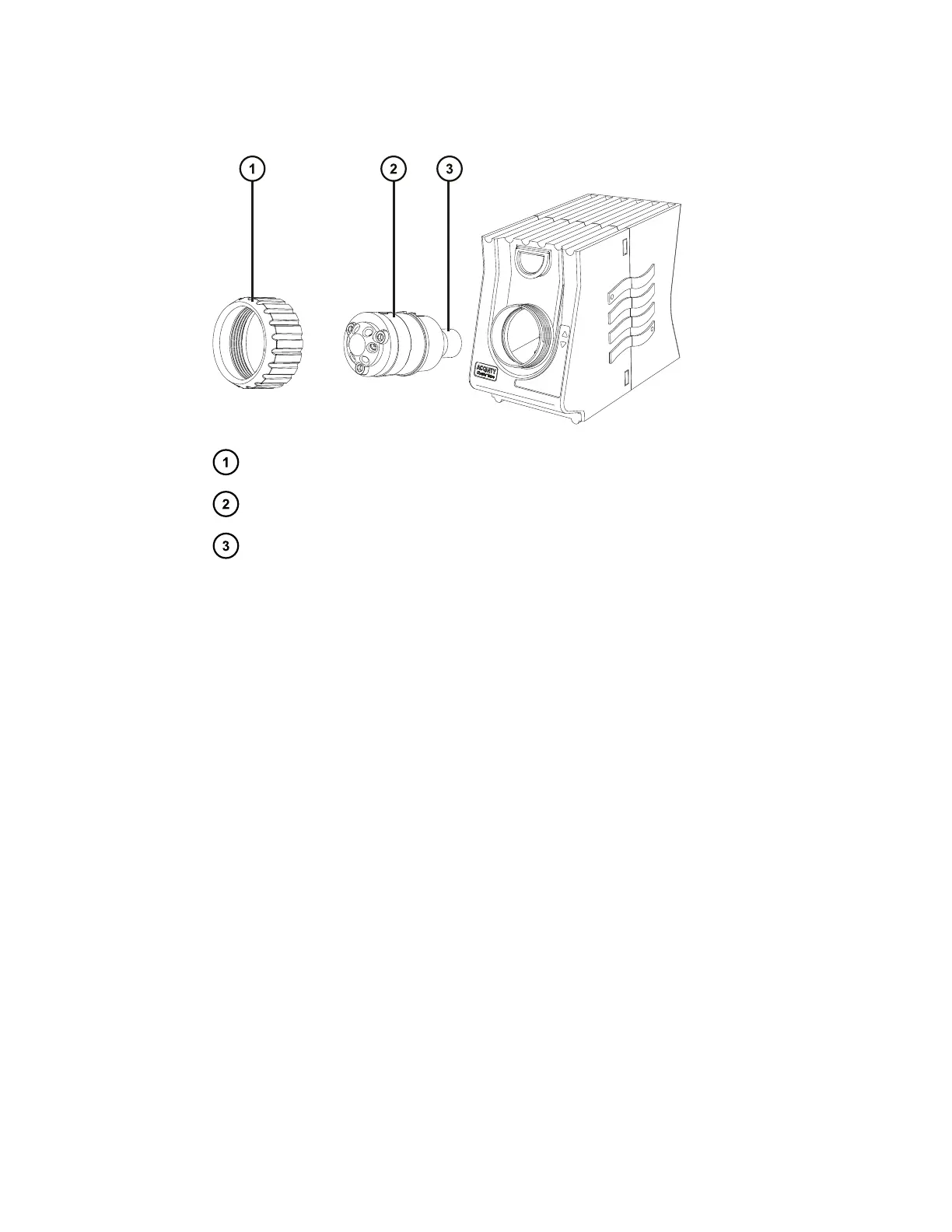

Figure E–13: Removing the diverter valve pod
Pod collar
Diverter valve pod
Valve pod spindle
5. Dispose of the used pod in accordance with local environmental regulations.
6. Slide the new pod into the cuff on the valve, and carefully slot the pod key into the
corresponding alignment keyway of the pod cuff on the valve.
Note: Ensure that the ridges on the back end of the spindle align with the corresponding
ridges on the spindle lock inside the diverter valve unit.
June 15, 2017, 715003956 Rev. F
Page 133
