Waters ACQUITY - Configuring the Diverter Valve Waste Tubing

In-line optical detector Maximum flow rate Tubing
ACQUITY PDA/TUV 1.25 mL/min Red PEEK tubing, up to 500 mm, 0.005-inch
I.D.
ACQUITY PDA/TUV 1.0 mL/min Black PEEK tubing, up to 500 mm, 0.004-inch
I.D.
Alliance 2998/2489 1.5 mL/min Blue PEEK tubing, up to 500 mm, 0.010-inch
I.D.
E.2.4 Configuring the diverter valve waste tubing
Required materials
• Blue PEEK tubing
• Tygon waste tubing
• PEEK fitting for the diverter valve
• Y-pieces (for teeing in waste tubing)
• PEEK tubing cutter
• Scissors
1. Attach one end of the Tygon tubing to the spur on the underside of the drip-tray.

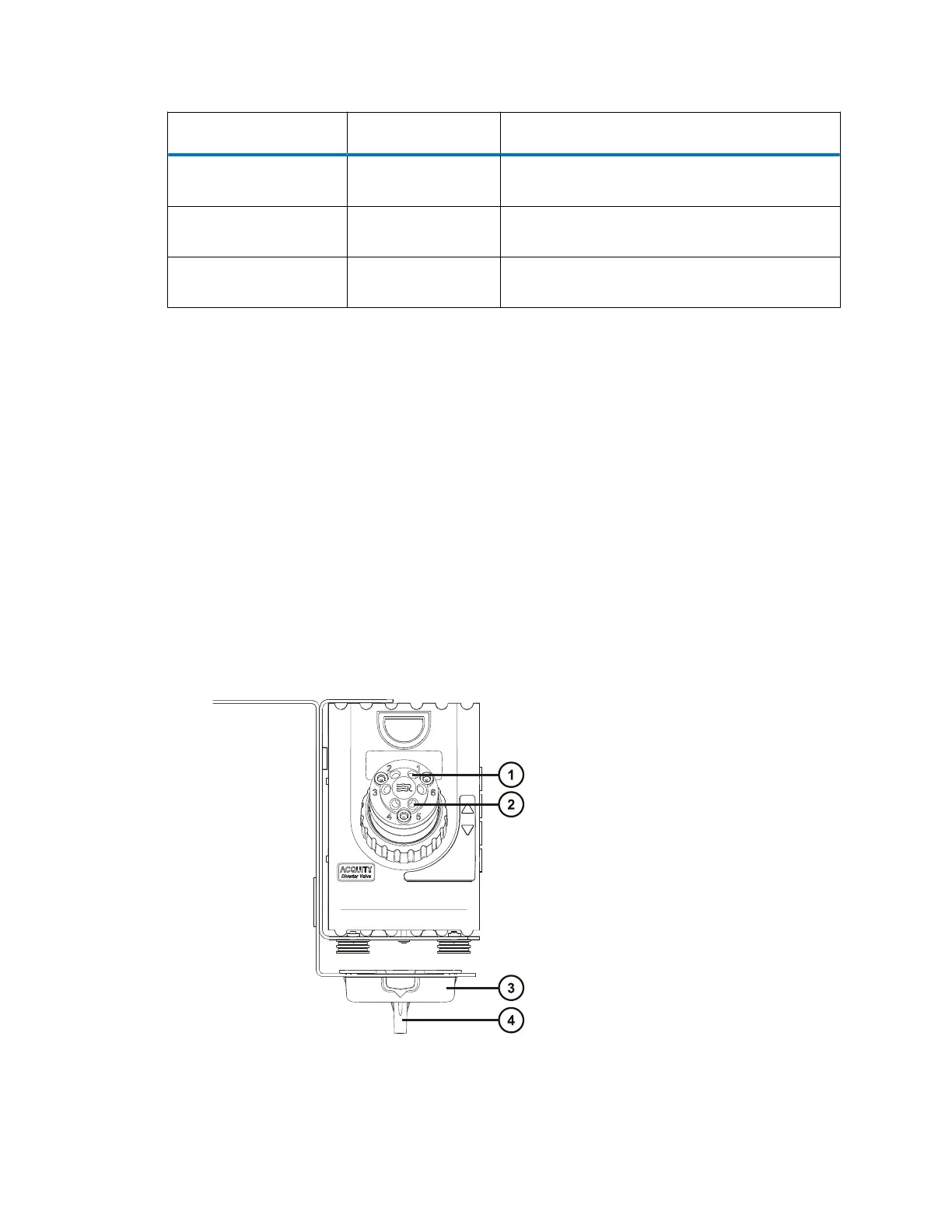

Figure E–9: Diverter valve waste tubing connections
June 15, 2017, 715003956 Rev. F
Page 125
