Required materials
• Chemical-resistant, powder-free gloves
To remove the source enclosure:
1. Power-off the instrument using the power button in the top left-hand corner of the front
panel.
2. Wait approximately 5 minutes to allow the instrument to vent.
3. Open the source enclosure door.
4. Disconnect the source enclosure's electrical cable from the front of the instrument by
loosening the screws and pull the cable from the socket.
5. Loosen the 2 thumbscrews on the front of the source enclosure.
Warning: To avoid burn injuries, exercise care when handling the components
of the source enclosure heated to high temperatures. Wait until the hot
components have sufficiently cooled before you handle them.

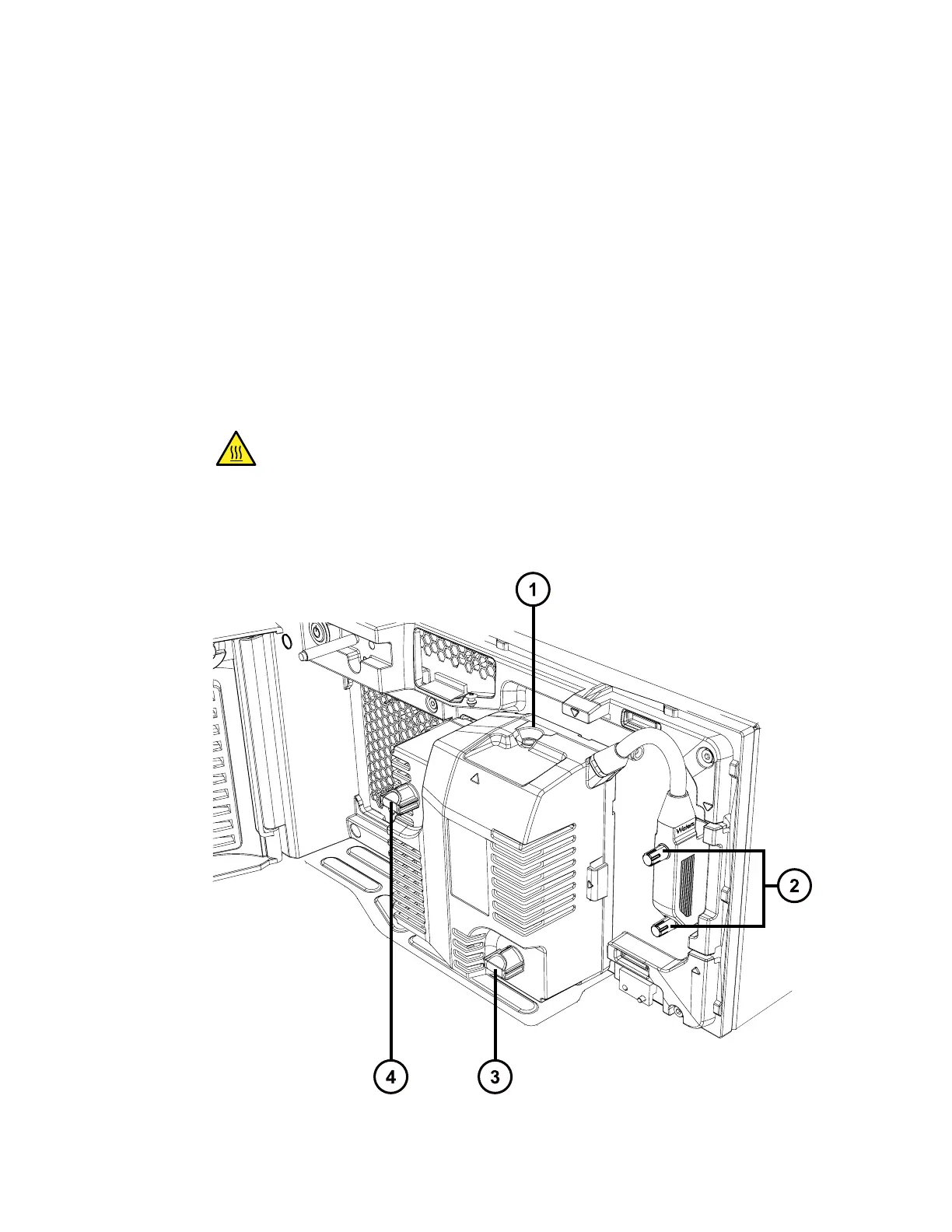

Figure 3–1: Removing the source enclosure
June 15, 2017, 715003956 Rev. F
Page 29
