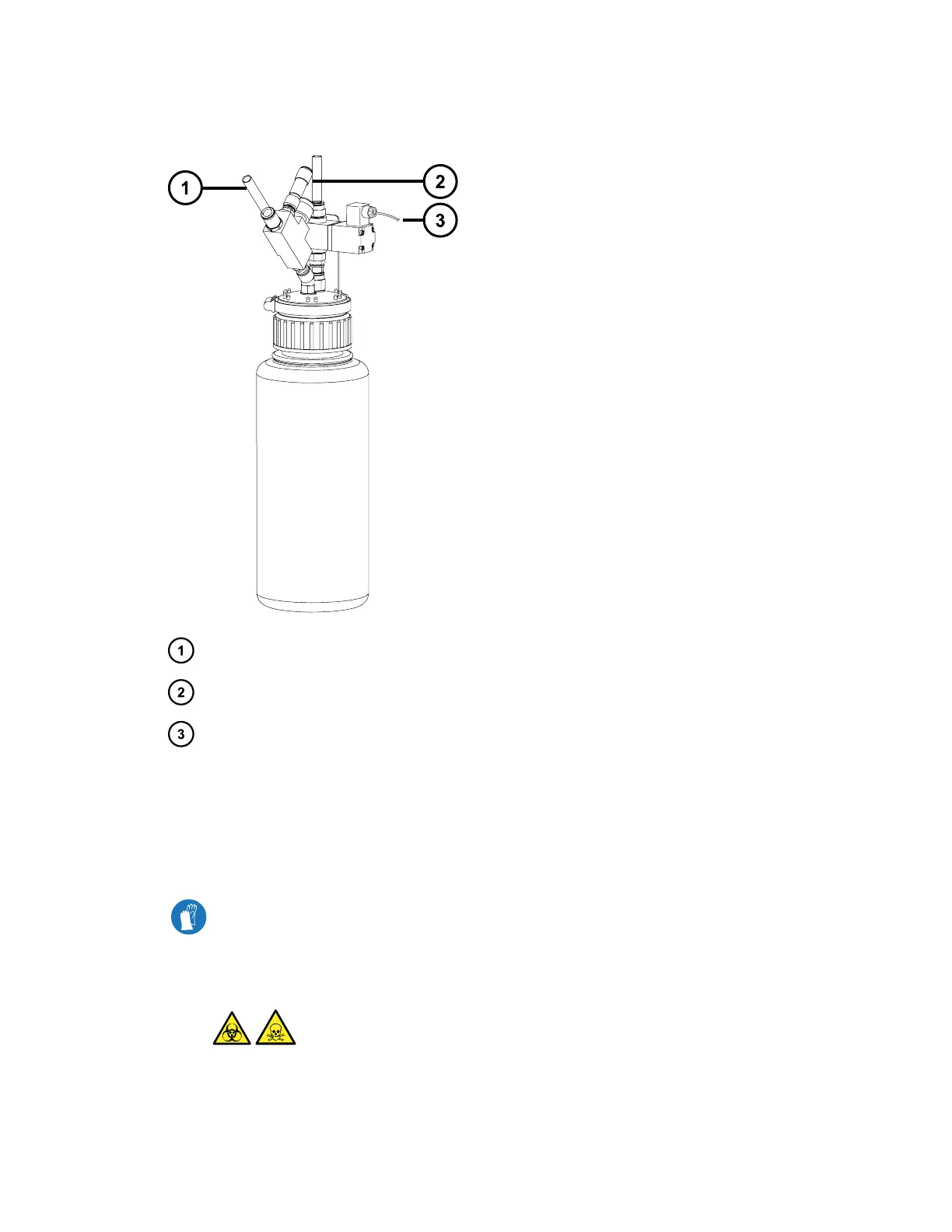

Figure 3–15: Nitrogen exhaust trap
From instrument exhaust connection (12-mm OD)
To laboratory exhaust port (12-mm O.D.)
Exhaust solenoid cable
Required materials
• Chemical-resistant, powder-free gloves
To empty the trap:
Requirement: Wear clean, chemical-resistant, powder-free gloves when performing
this procedure.
1. In the software, stop the LC flow.
2. Remove the source enclosure (see Removing the source enclosure from the instrument).
Warning: To avoid personal contamination with biohazardous or toxic compounds, wear
clean, chemical-resistant, powder-free gloves when performing this procedure.
