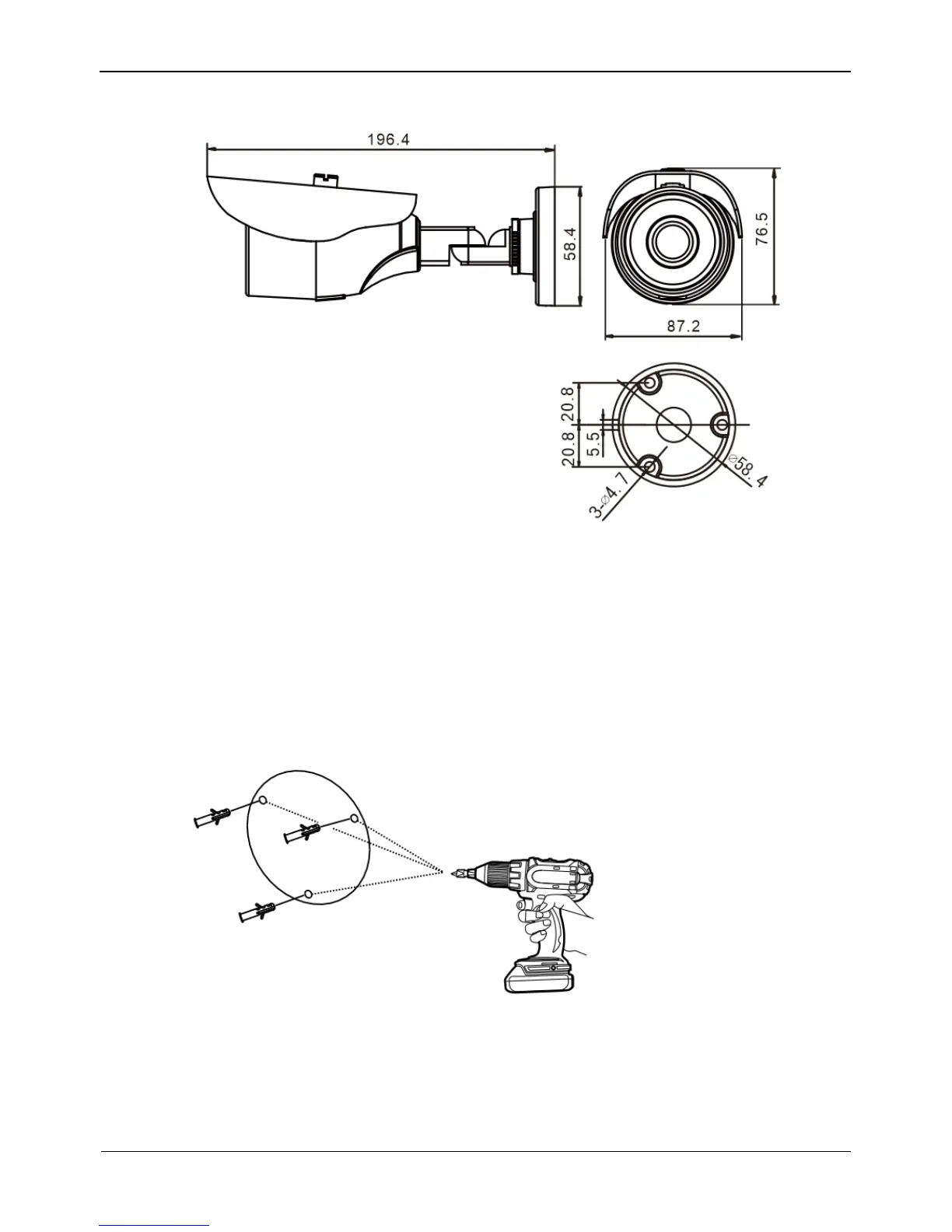

Figure 3-2 dimensions of 0E-13BF36 and 0E-21BF36WDR
3.2 Device Installation
Step 1 Stick the Installation location sticker on the ceiling or wall, Drill three holes based on
the marks on the sticker. Drive the swell plastic buttons into the holes, as shown in
Figure 3-3.
Figure 3-3 Drilling holes
Step 2 Loosen the locking screw with L-Hex Wrench and rotate the camera, then attach the
camera to the surface, as shown in Figure 3-4.
