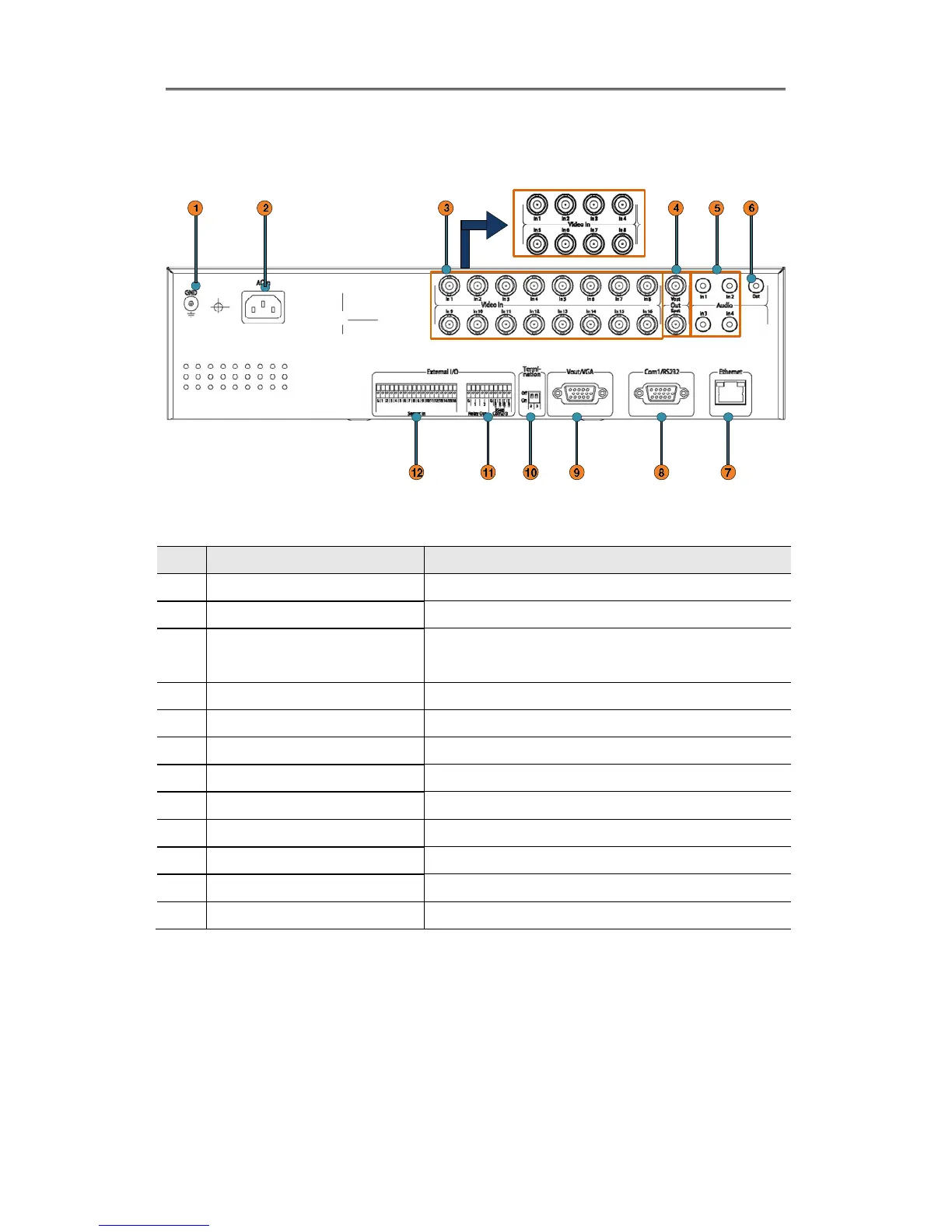

Input/ Output name Descrtiption
1 Ground Ground between DVR & external device
2 Power connector Socket for AC100V~AC240V power cord
3 CH1~16 BNC input for camera connection
LH1600C : 16EA, LH800L : 8EA
4 Monitor/ Spot BNC connection for monitor output
5 Audio Input(RCA) RCA connection for Audio input
6 Audio Output Speaker output terminal
7 Ethernet For network connection (RJ-45)
8 RS-232C D-Sub Text equipment, Keyboard connection
9 VGA OUTPUT Output for VGA monitor connection
10
