Sender Address
Not mandatory but necessary for receiver to find out which DVR sends event.
Including Picture
In general event, when sensor, MD, V-loss events are generated, the event information and
channel video will be sent to e-mail together.
But system event just send system event information.

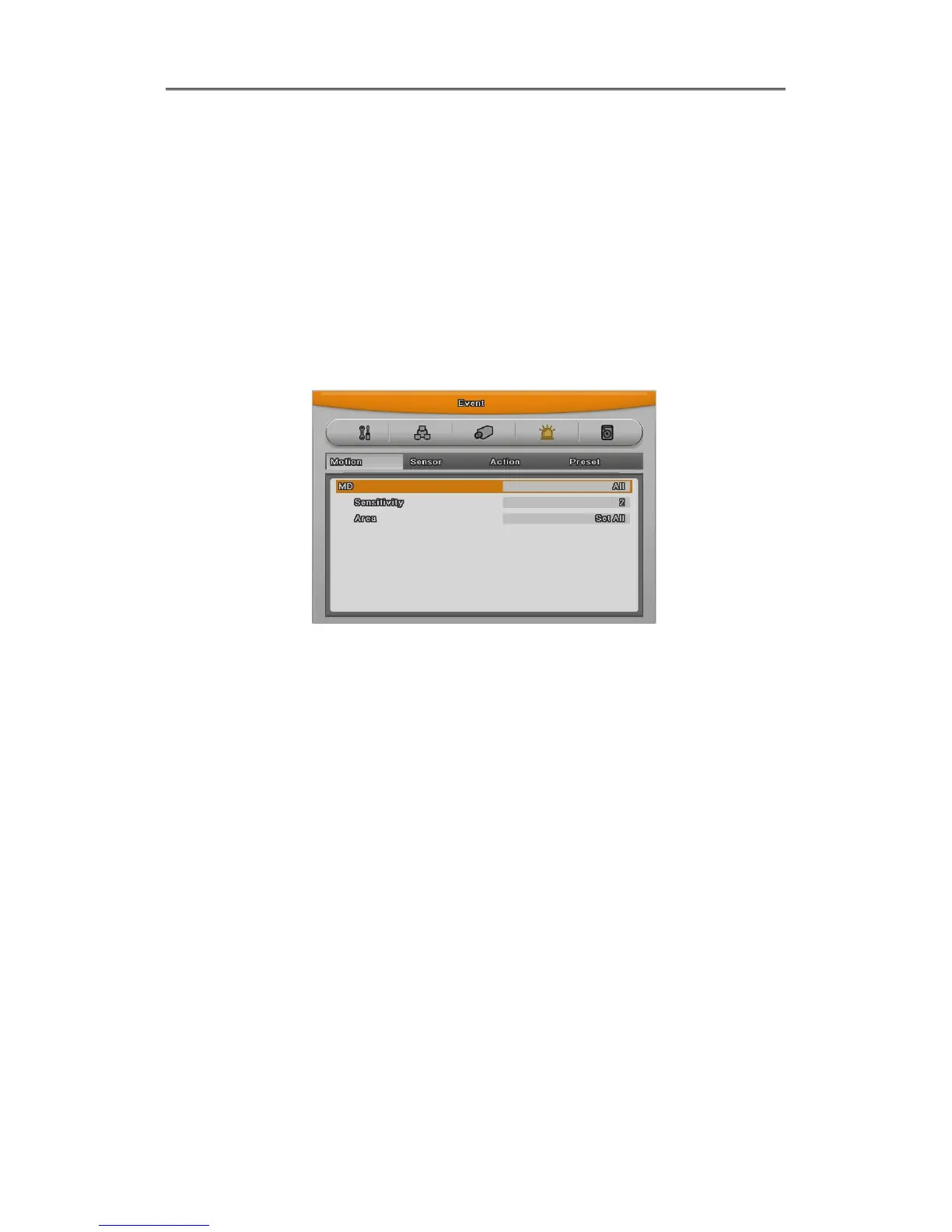

6.5.3 Motion Detection
Channel
All or certain channel.
Sensitivity
Sensitivity can be configured from min.1 to max 10.
Area
Select detection area.
User can select all or certain channel.
User Area
When selecting per channel, it can be configured.
1 grid size is 22x15 and factory default value is All. If pushing user area, configuration
window for detection area.
