WebGate EH1600L - Rear

Install&User Manual
19

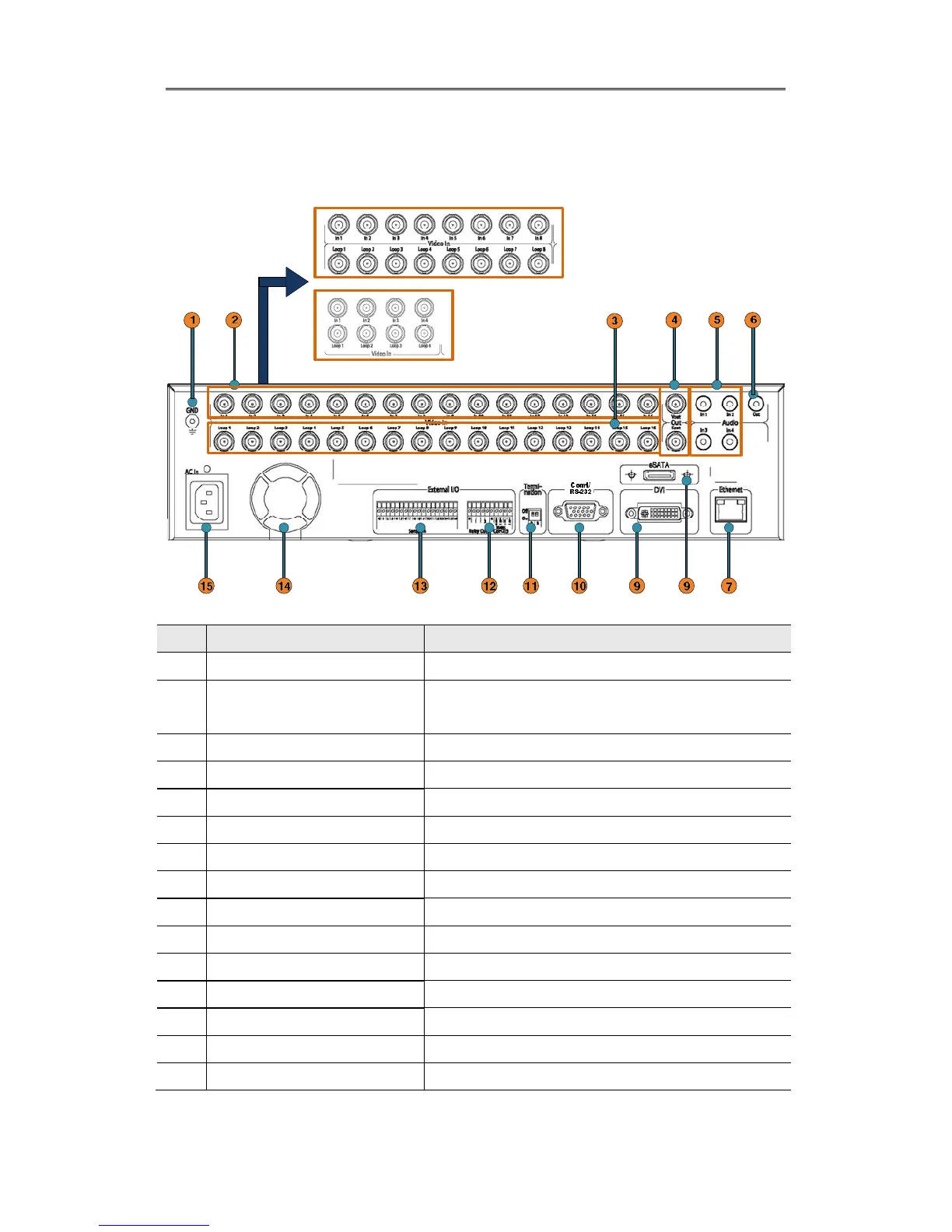

1.2.2. Rear
1.2.2.1. EH-Series REAR
번호
Input/ Output name Descrtiption
1 Ground Ground between DVR & external device
2 CH1~16 BNC input for camera connection
EH1600L : 16EA, EH800M : 8EA, EH400H : 4EA
3 Loop out BNC output(Loop) for camera connection
4 Monitor/ Spot BNC connection for monitor output
5 Audio Input(RCA) RCA connection for Audio input
6 Audio Output Speaker output terminal
7 Ethernet For network connection (RJ-45)
8 eSATA eSATA external storage connection
9 DVI OUTPUT Output for DVI monitor connection
10
RS-232C D-Sub Text equipment, Keyboard connection
11
Termination Ohm Termination Ohm for Com2, Com3
12
Relay/Serial Connection for Relay and Serial(RS-485)
13
Sensor IN Input for external sensor
14
FAN Cooling system against over heating
15
Power connector Socket for AC100V~AC240V power cord
