With direction key, select area and press [Enter] or click mouse. And press “ESC” button or
click right mouse button, shift to the previous menu.

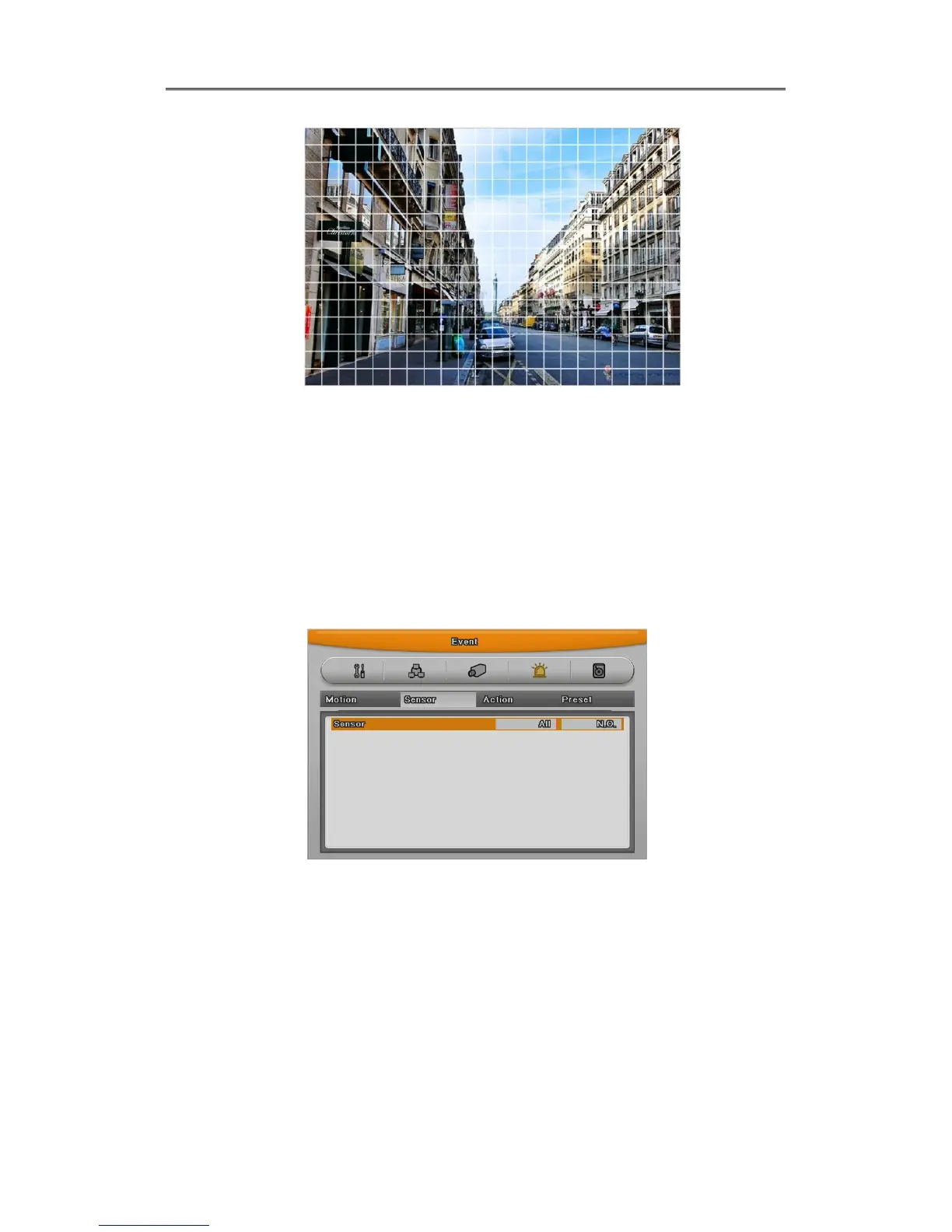

6.5.4 Sensor
This menu is to setup the existing sensor input and type of sensor.
EH1600L, LH1600C have 16 inputs and EH800M, LH800L have 8 inputs and EH400H has 4
inputs.
Sensor has 2 types, Normal Open(N.O.) and Normal Close(N.C.).
.
6.5.5 Preset
In PTZ function, make configured preset work according to sensor input.
Please, configure preset per PTZ.
After selecing channel in preset menu, select event to work preset.
Event can select sensor,MD,Text, its preset can be configured up to 16.
