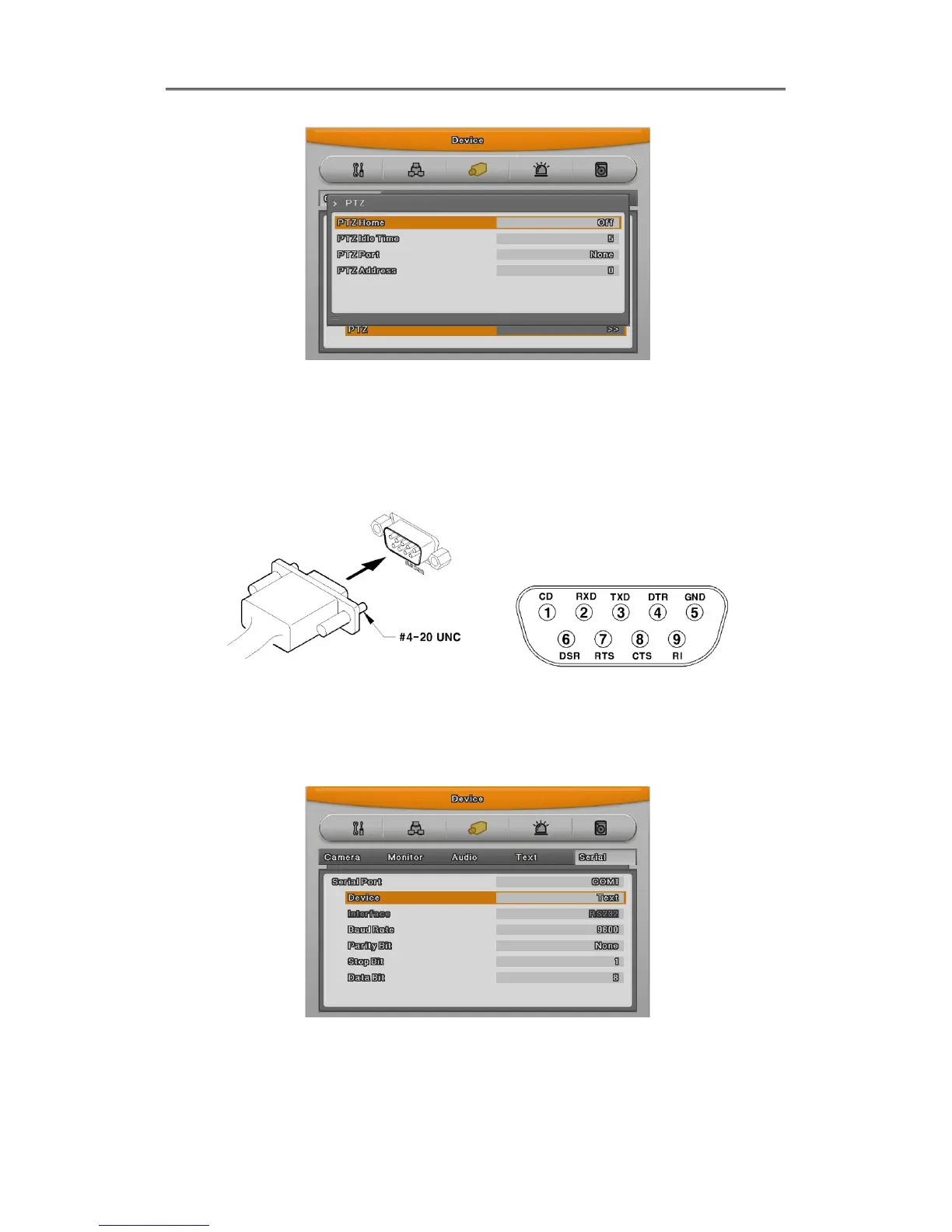

2.3.3.4 Connection to external device via Seria port
Text input device connection (ATM / POS / Access Control)
Using COM1/RS232, TEXT DATA can be recorded with synchronizing POS/ATM.
Like above picture, connect COM1/RS232 (9pin D-Sub) in Device menu and configure Serial
and Text.
Serial (COM1) Setup
(1) Select “Device” in OSD menu and move to sub menu.
(2) Seleting COM1 and configure “Text”in Device
(3) Setup the value of Baud Rate/Parity/Stop bit/Data bit with the device.
