４３

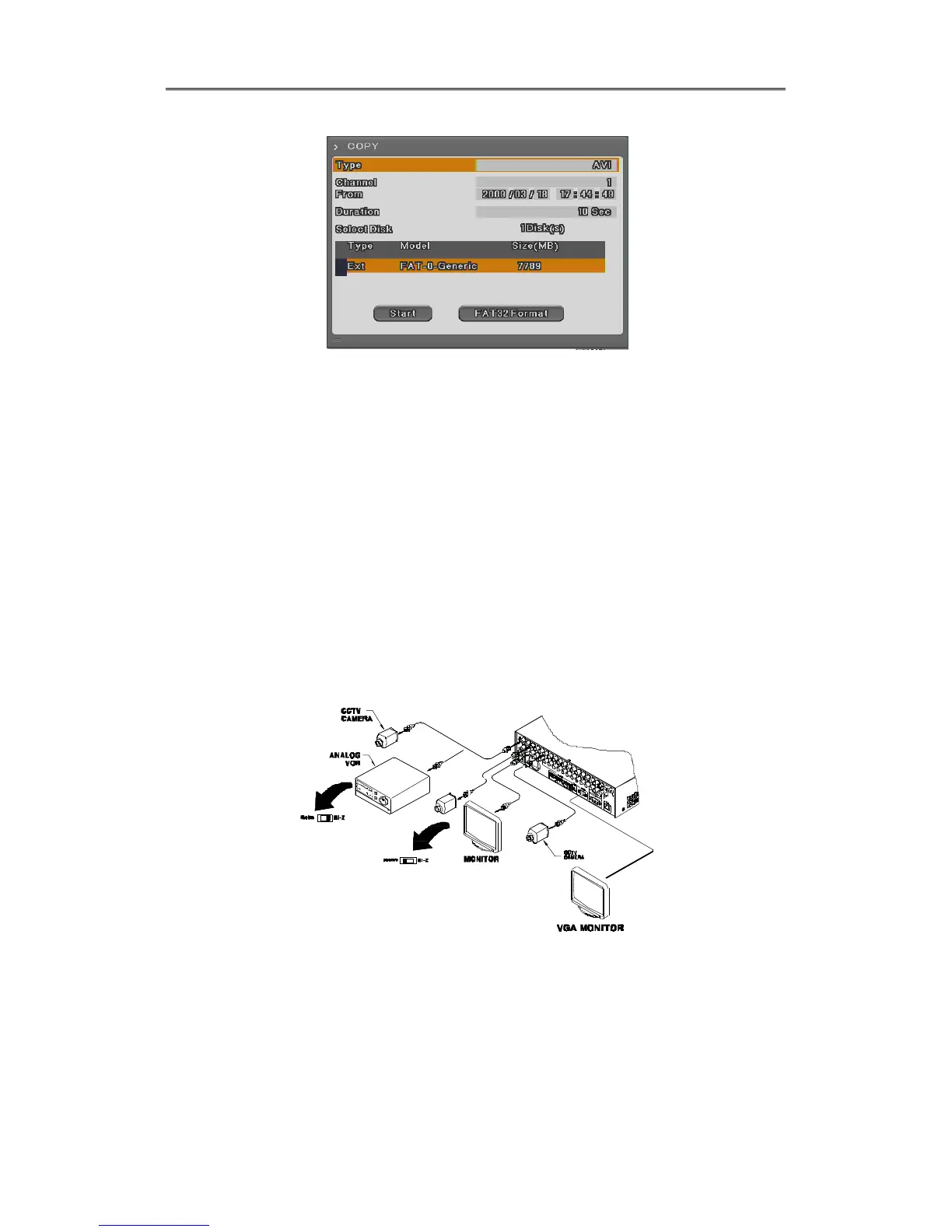

[AVI Copy]
<Reference>
A USB Flash memory which should install additional program on Windows OS, can not
be recognized.
2.3.3.6 Video In/Out connection
Video Input/Output is Loop through and check the connectivity automatically and set end
resistance.
For instance, if connected by Video input, end resistance is configured by75Ω and if
Video in/output is same, it will be Hi-z mode. Therefore, in case that Input/Outut are connected
at the same time, end resistance of device receving output should be configured by 75Ω.
[EH Series]
