SSW7000 | 3-1
3 ABOUT THE SSW7000
The “Soft-Starter WEG 7000” is a high performance product that allows the starting/stopping control and
protection of medium voltage three-phase induction motors, thus preventing mechanical shocks ant the load,
current peaks in the supply line and damage to the motor.

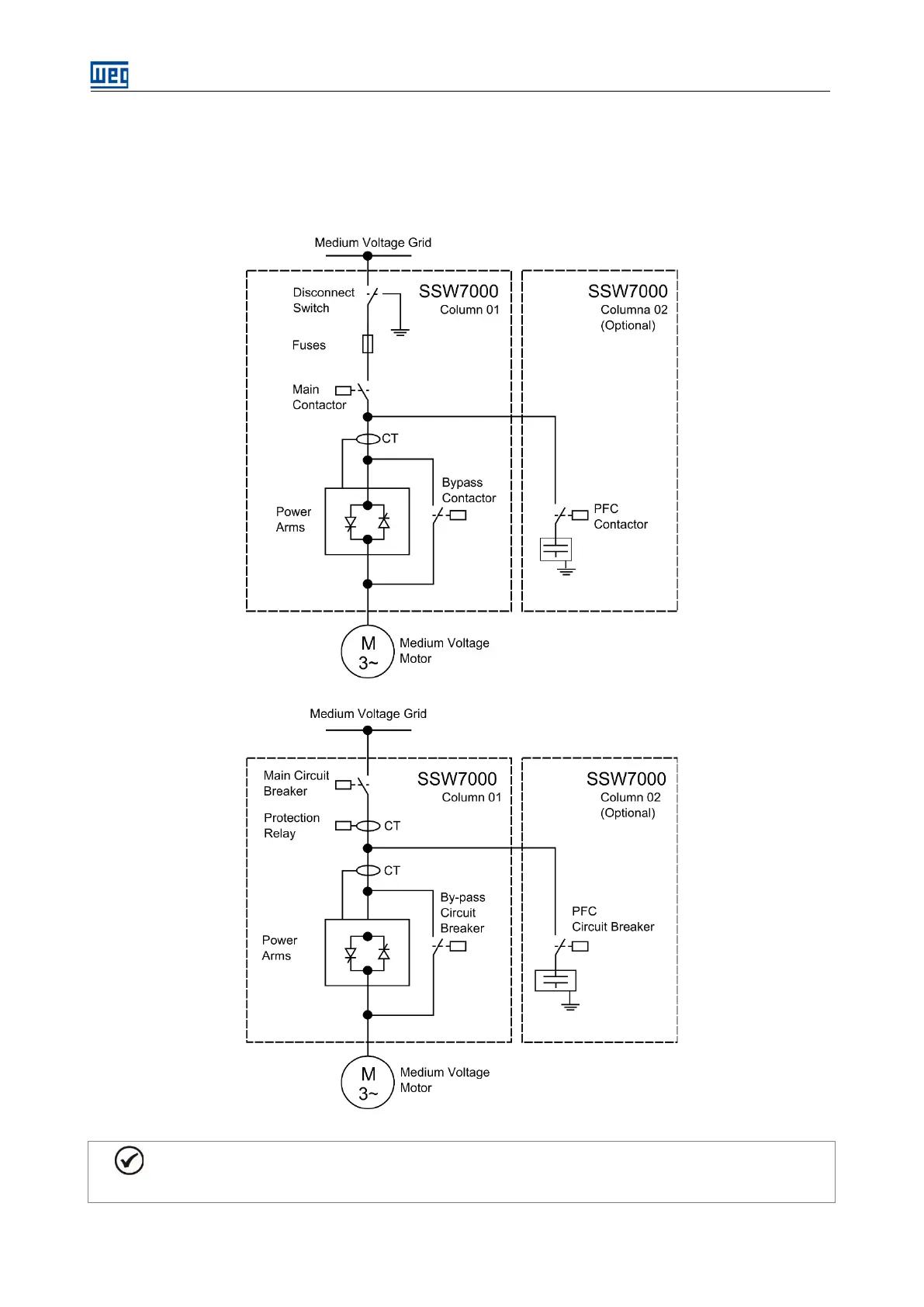

Figure 3.1: General block diagram of SSW7000 frames A, B and C.
Figure 3.2: General block diagram of SSW7000 frame D.
NOTE!
The capacitor bank for power factor correction is provided in an additional column coupled to
