WEG SSW7000 - Connections between the CSM Board and the TF Transformer

SSW7000 | 6-7
Internal Connections

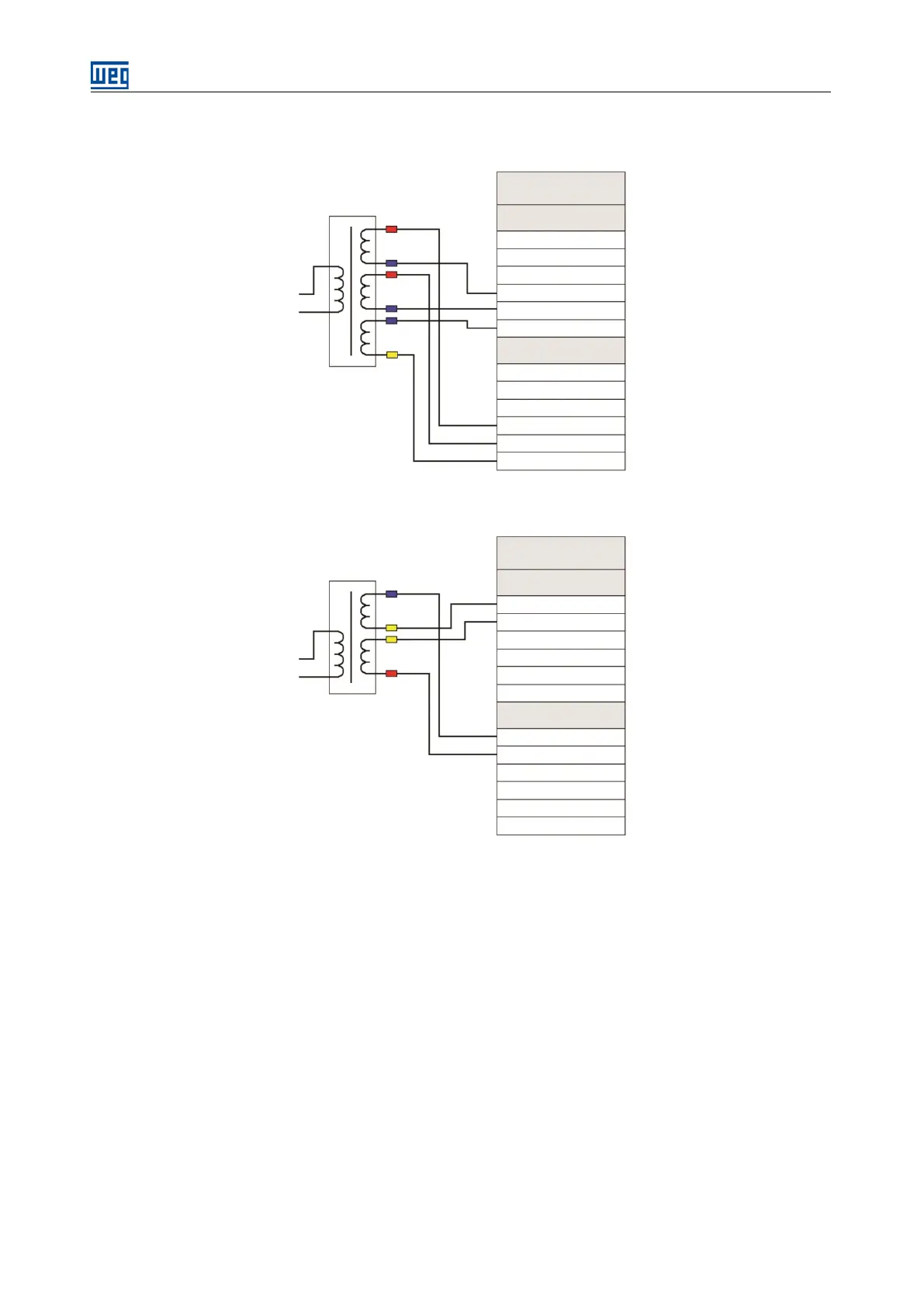

6.1.6. Connections between the CSM Board and the TF Transformer
Figure 6.5:
Connection of the transformer to the CSM board (Version 2)
Figure 6.6:
Connection of the transformer to the CSM3 board (Version 3)

Transformer TF2 (version 2), supplied at 90Vac, 800Hz.

Transformer TF3 (version 3), supplied at 66Vac, 400Hz.
CSM2 Board
XC2
1
2
3
4
5
6
XC1
1
2
3
4
5
6
TF2
CSM3 Board
XC2
1
2
3
4
5
6
XC1
1
2
3
4
5
6
TF3
