SSW7000 | 6-6
Internal Connections

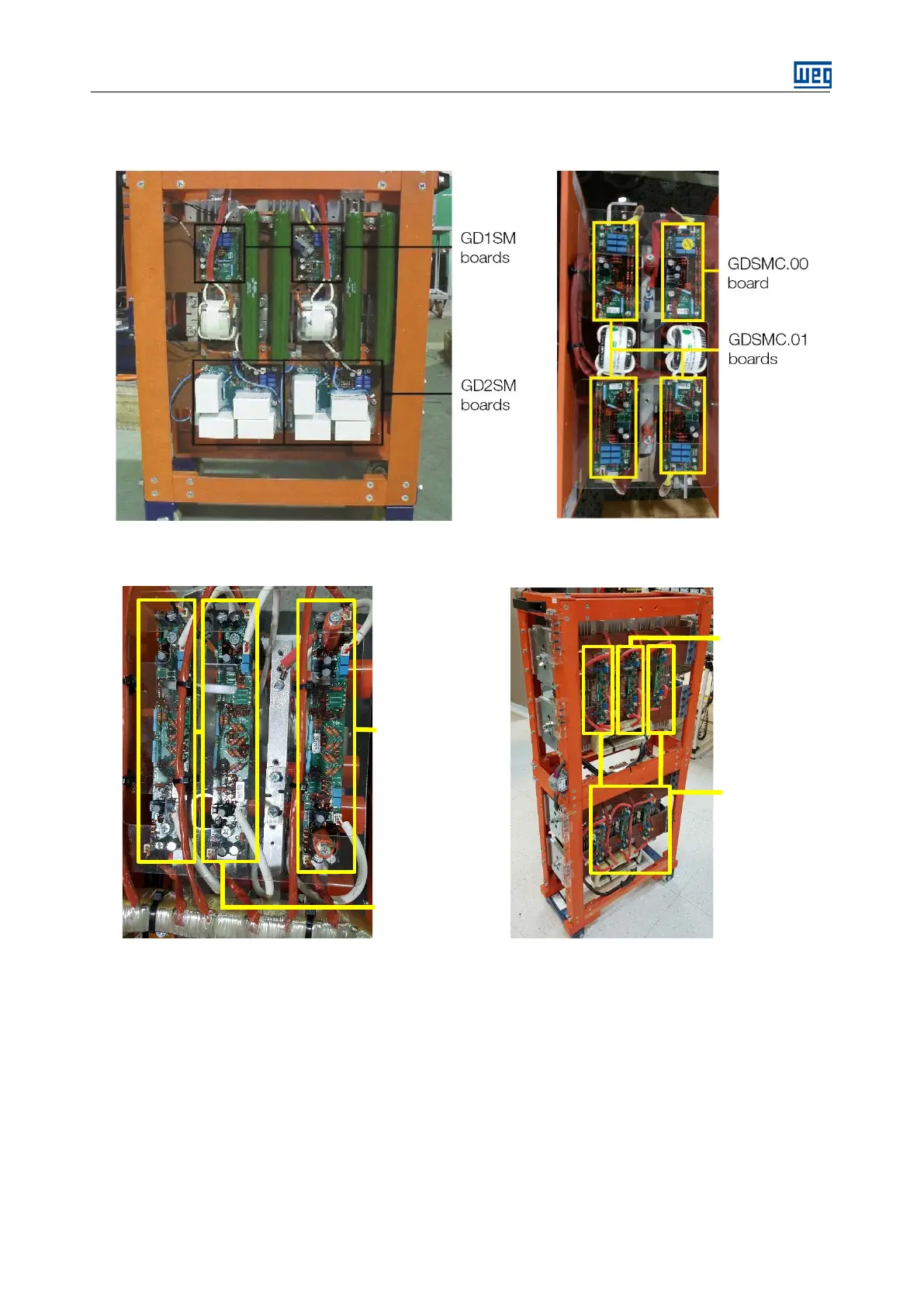

The location of the GD1SM, GD2SM, (SSW7000A) and GDSMC, GDSMC2 (SSW7000C) boards in the power
arm is showed in the figure 6.3 and figure 6.4.
Figure 6.3: GD1SM, GD2SM (SSW7000) and GDSMC (SSW7000C) firing boards.
Figure 6.4: GDSMC2.00 e GDSMC2.01 (SSW7000C) firing boards.
GDSMC2.01
boards
GDSMC2.00
board
GDSMC2.02
board
GDSMC2.03
boards
