WEG SSW7000 User Manual

SSW7000 | 6-8
Internal Connections
6.1.7. Connections between the Low Voltage and the Medium Voltage Controls

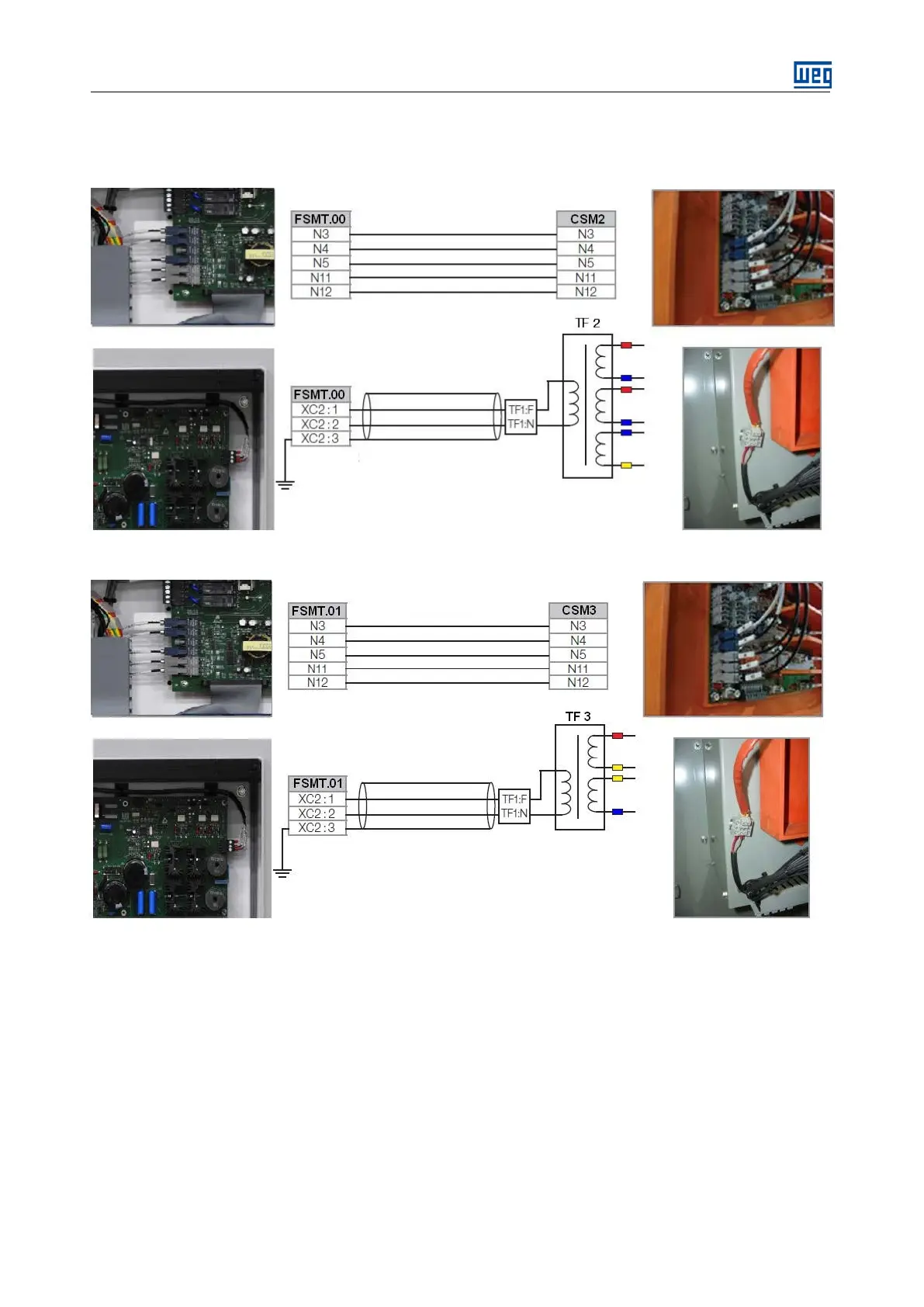

Figure 6.7 (a): Connections between the low voltage and the medium voltage controls – Version 2
Figure 6.7 (b) : Connections between the low voltage and the medium voltage controls – Version 3

Use a two wire shielded cable with 0.5 mm2 cross section, 300 V insulation and the shield connected to
the ground at the FSMT cable end, in order to make the connection between the FSMT.00/FSMT.01 and
the TF2/TF3.
Fiber optic cables
Fiber optic cables
