SSW7000 | 5-13
Installation and Connection

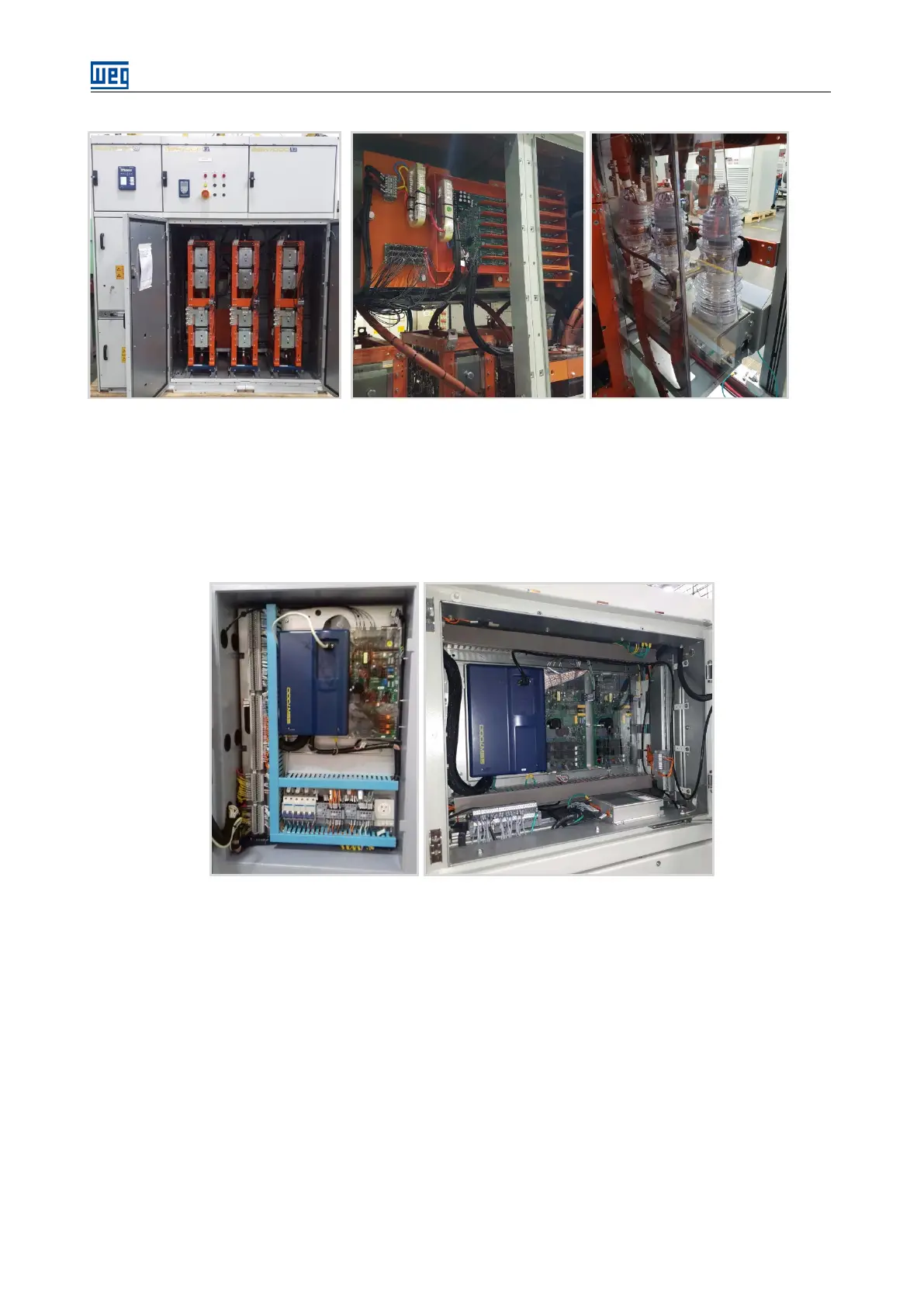

Figure 5.10: Medium voltage compartment (front view and back view) SSW7000D – IP41.
5.1.9. Low Voltage Compartment
In the low voltage compartment are the direct access components to the user’s control connections: control
board, power supply for control board, power supply for the medium voltage boards, auxiliary contactors and
access terminals.
(a): Frames A, B e C (b): Frame D
Figure 5.11: Low voltage compartment.
For more details see chapter 6 - Internal Connections.
