WEG SSW7000 - Power Cable Entry

SSW7000 | 5-14
Installation and Connection
5.1.10. Power Cable Entry

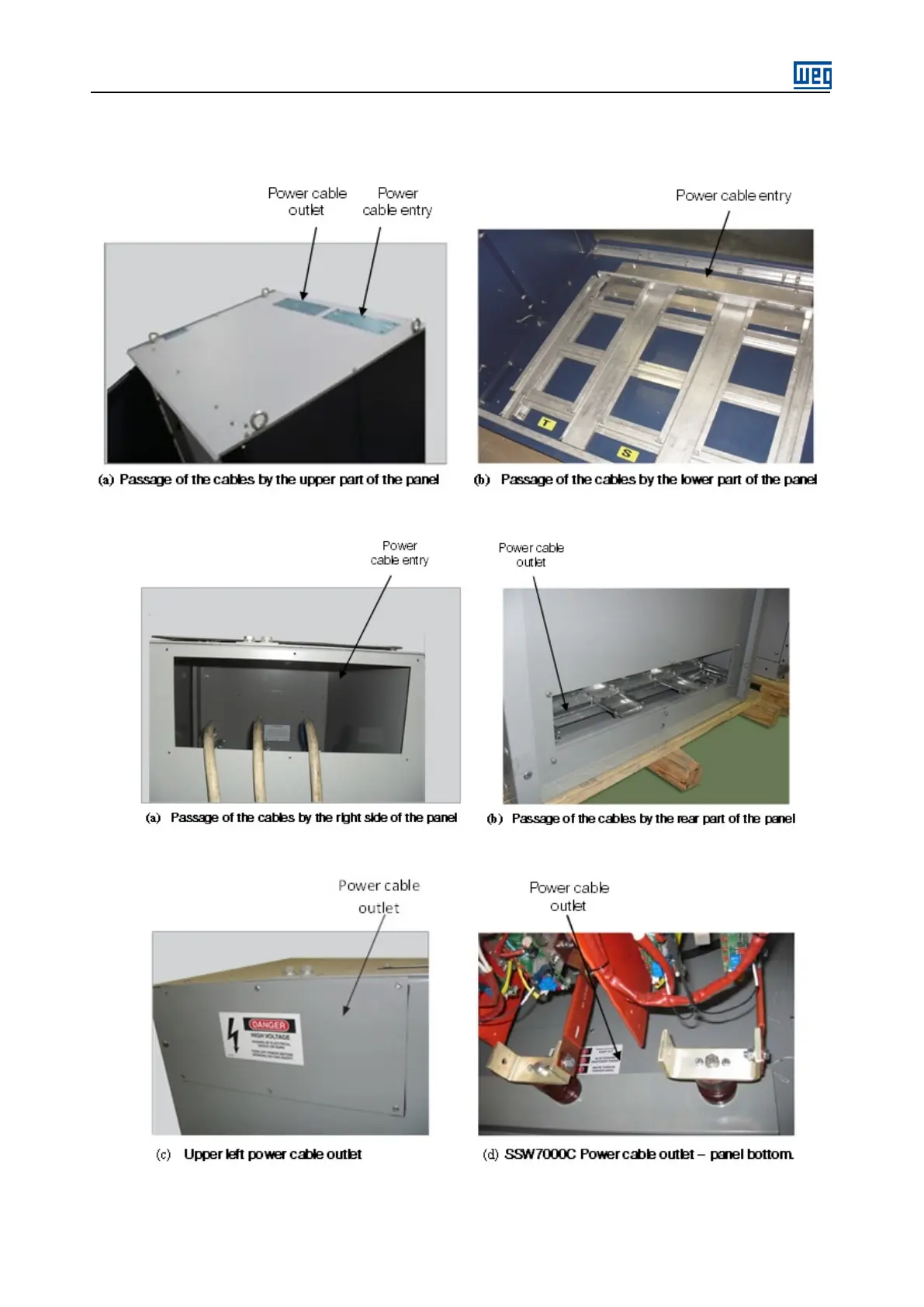

The passage of power cables in the panels IP41 and Nema 12 is shown in figure 5.12, figure 5.13 and figure 5.14.
Figure 5.12. (a) and (b): Passage of the power cables – IP41.
Figure 5.13. (a) and (b): Passage of the power cables – Nema 12
Figure 5.13. (c) and (d): Passage of the power cables – Nema 12.
