SSW7000 | 5-4
Installation and Connection
The dimensions for the version SSW7000B are given below.

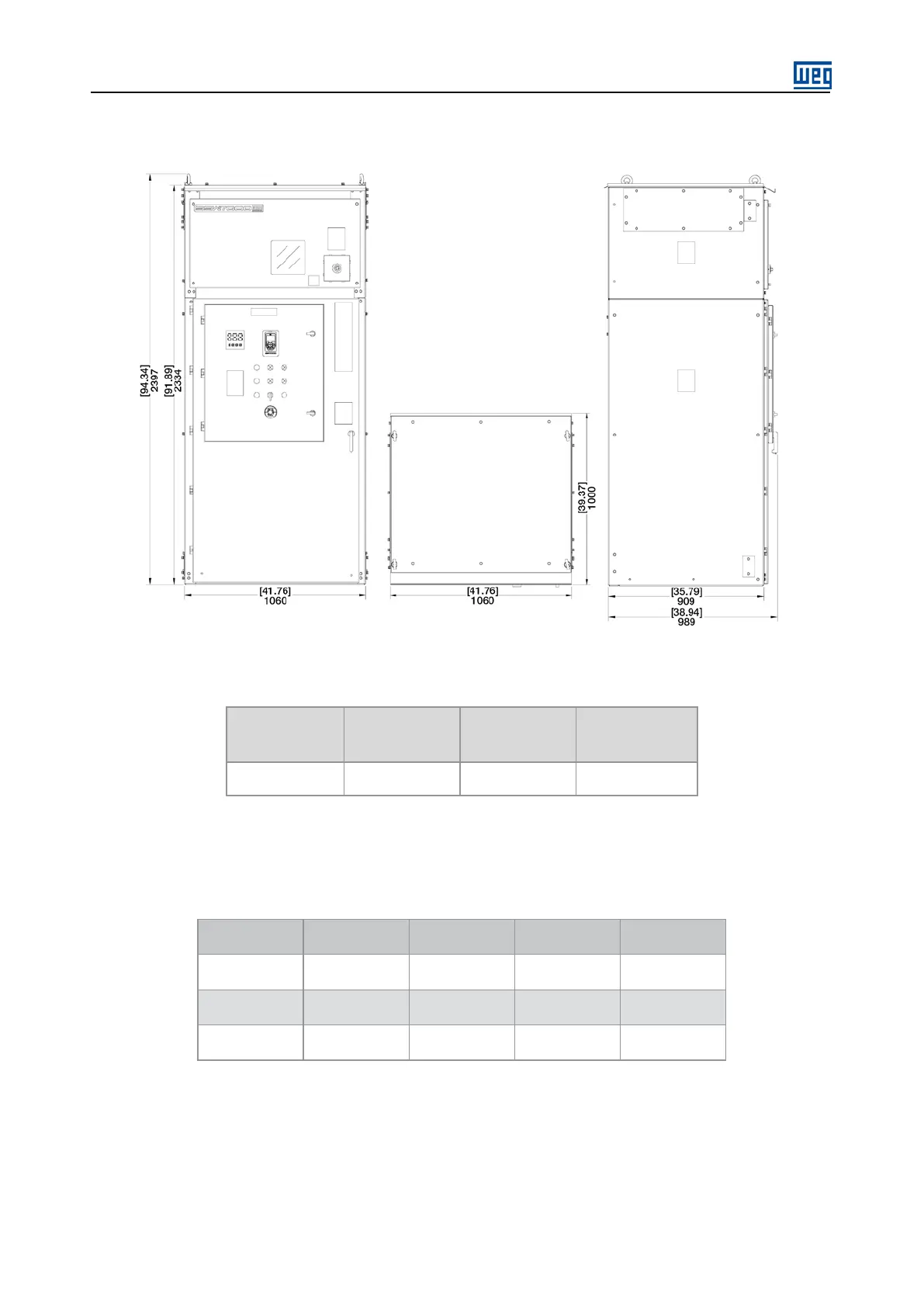

Figure 5.2 SSW7000B IP54 panel
Table 5.8. SSW7000B IP54 panel
Width
mm(in)
Height
mm in)
Depth
mm (in)
Weight
(without the arms )
kg ( l b )
1060
( 41.76 )
2397
( 94.34 )
1000
( 39.37 )
910,1
( 2006.43 )
The power arms of the SSW7000 are supplied separately from the panel and individually packed.
Table 5.9: SSW7000 Power arm dimensions without package
Rated Voltage
kV
Width
mm (in)
Height
mm (in)
Depth
mm (in)
Weight
kg (lb)
2,3
262
( 10.31 )
722
( 28.42 )
430
( 16.93 )
53
( 116.84 )
4,16
262
( 10.31 )
722
( 28.42 )
546
( 21.5 )
68,6
( 151,24 )
6,9
262
( 10.31 )
722
( 28.42 )
664
( 26.14 )
83,3
( 183.64 )
