WEG SSW7000 User Manual

SSW7000 | 5-7
Installation and Connection
The dimensions for the standard versions IP41 - SSW7000D are given below.

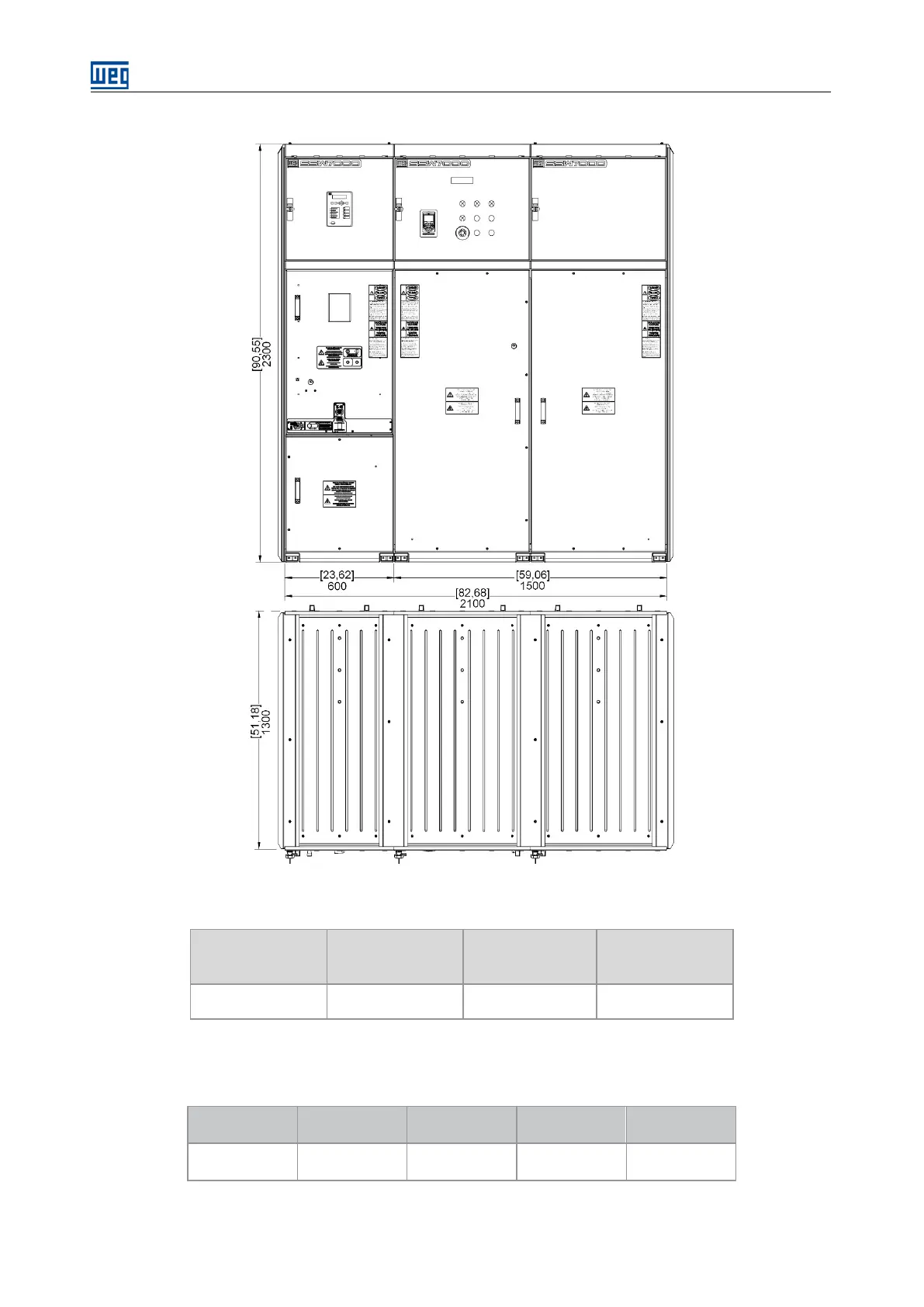

Figure 5.3 (c): IP41 panel - SSW7000D.
Table 5.13. SSW7000D
IP41 panel
Width
mm(in)
Height
mm in)
Depth
mm (in)
Weight
(without the arms )
kg ( l b )
2100
(82.68)
2300
(90.55)
1300
(51.18)
2284
(5035)
The power arms of the SSW7000 are supplied separately from the panel and individually packed.
Table 5.14: SSW7000 Power arm dimensions without package
Rated Voltage
kV
Width
mm (in)
Height
mm (in)
Depth
mm (in)
Weight
kg (lb)
13.8
669
(26.3)
1356
(53.4)
671
(26.4)
162
(357)
