1.2 DTV 720 Overview
The standard DTV 720 Transport Stream Multiplexer (Figure 1.1) receives up to two ASI
input MPEG Transport streams and provides two identical ASI output streams for
connection to cable system transmission equipment. The input Transport streams are
multiplexed, and programs may be remapped or selected for removal from the output
stream.
The DTV 720 has two input option slots that can increase the number of input streams to
four. The options available are two ATSC 8VSB broadcast demodulators or an additional
single ASI input option that has two ASI input MPEG Transport stream inputs. The DTV
720 has an optional output slot available for either a DHEI output stream or a Gigabit
MPST output stream.
Physical
Description
The DTV 720 is housed in a standard, rack-mountable chassis. Its front panel provides a
user interface through an LCD, eight LEDs, and six push buttons (see section 3.3 DTV720
Controls and Indicators on page26).The rear panel holds the ports that allow
connection to power, incoming signal, and peripheral devices.

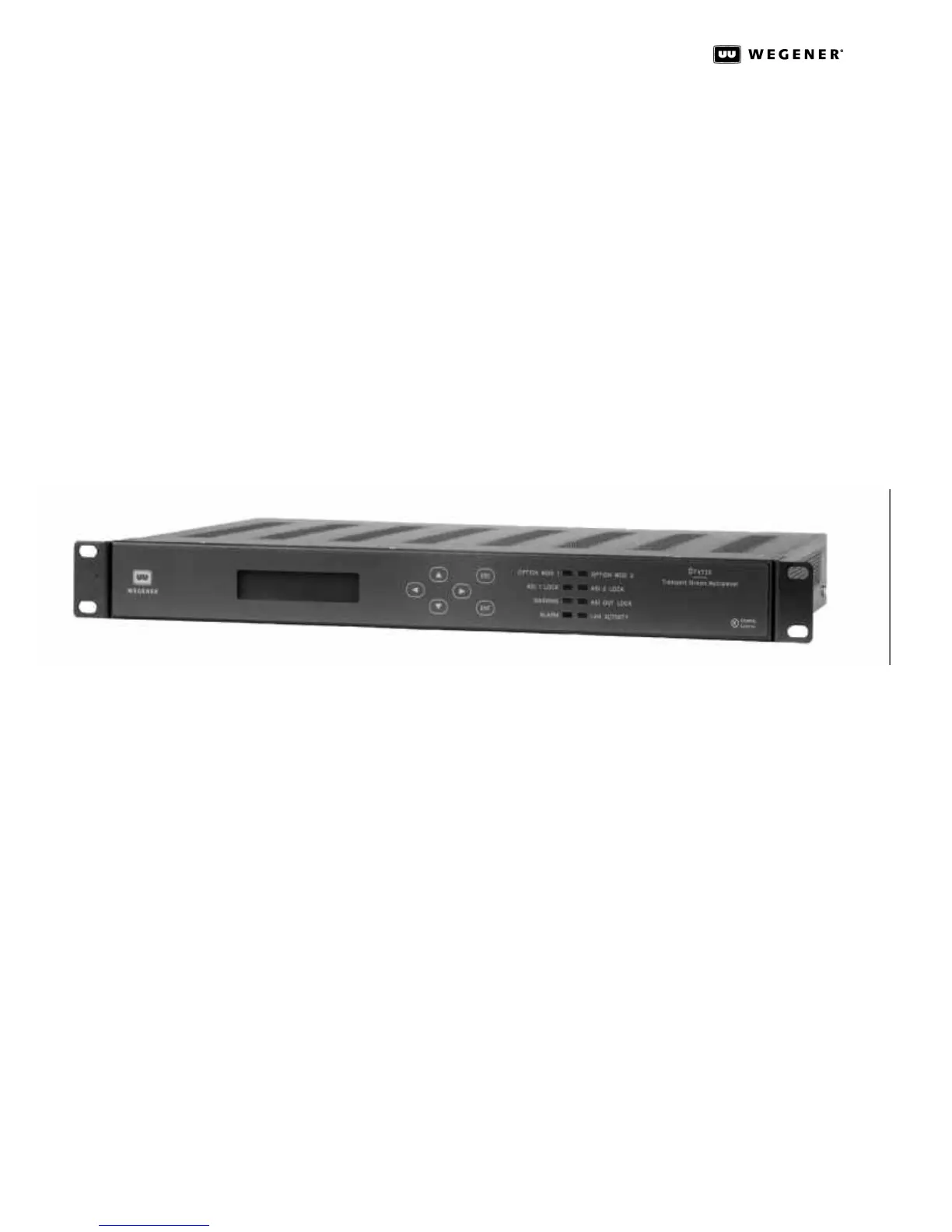

Figure 1.1 DTV 720 Transport Stream Multiplexer
Features The DTV 720 has the following features:
• Two ASI MPEG Transport Stream Inputs (BNC Connectors)
• Two Duplicate ASI MPEG Transport Stream Outputs (BNC Connectors),
• Up to Two ATSC 8VSB RF Input Modules (F Connector)
• DHEI Output Transport Stream Module (Optional)
• Gigabit Output Transport Stram Module (Optional)
• Time Re-stamping of PCR, PTS, and DTS Information
• User Selection of Input Programs To Be Included in the Output Stream
• User Selection of Output Program Numbers and Audio Mode
• One Ethernet TCP/IP Control Interface (RJ-45 connector)
