3 Systemoverview | Internal fuse
EM8/30endbracketmarker
The WEW35/2 end bracket and AMGEP end bracket can
be tted with the EM8/30 end bracket marker (Order No.
1806120000).

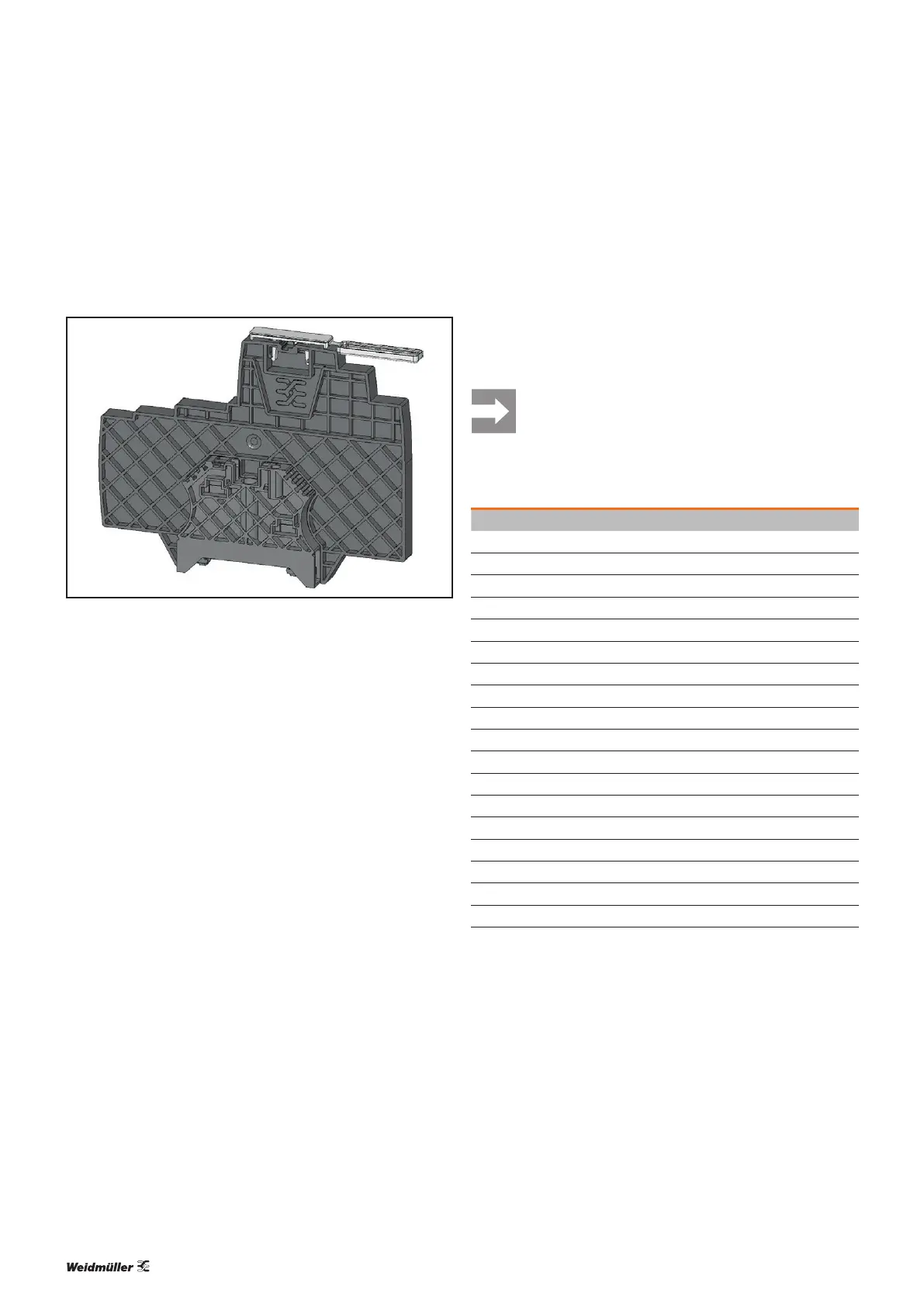

EndbracketwithEM8/30endbracketmarker
The following markers are available for the labelling:
– Markers for printing with Weidmüller
PrintJet ADVANCED (Order No.1324380000)
– Order No. 1045570000, ELS6/30, white, PA66
– Order No. 1045580000, ELS6/30, yellow, PA66
– Markers for printing with Weidmüller
THM MMP (Order No. 2430820000)
– Order No. 2009980000, ELS6/30MM, white,
polyester
– Order No. 2010620000, ELS6/30MM, yellow,
polyester
– Labels for printing with office laser printers
– Order No. 1607720000, ESO 7 white, paper
– Order No. 1634780000, ESO 7 yellow, paper
– Order No. 1670390000, ESO 7 P white, polyester
– Order No. 1670400000, ESO 7 P yellow, polyester
3.5 Internal fuse
All load monitors are equipped with an internal fuse on the
PCB. If the electronic switch-off fails, the fuse will protect the
electronics and the external conductors against overload.
If the electronics are intact, the electronic switch-off will al-
ways be tripped rst.
The wire cross-sections must be measured ac-
cording to the internal fuse value, not the tripping
current of the electronic load monitor.
The wire cross-sections are to be measured according to
DINVDE0298-4. National regulations must be observed.
Load monitor Internal fuse
AMG ELM 6... 2x6.3A
AMG ELM 12... 2x10A
AMG ELM-6D CO 2x6.3A
AMG ELM-10D CO 2x8A
AMG ELM-1F... 2x6.3A
AMG ELM-2F... 2x6.3A
AMG ELM-4F... 2x6.3A
AMG ELM-6F... 2x6.3A
AMG ELM-8F... 2x8A
AMG ELM-10F... 2x8A
AMG ELM-1F CL2 1x 6,3A
AMG ELM-2F CL2 1x 6,3A
AMG ELM-4F CL2 1x 6,3A
AMG ELM Q2222 4x(2x6.3A)
AMG ELM Q4444 4x(2x6.3A)
AMG ELM Q6666 4x(2x6.3A)
AMG ELM Q2244 4x(2x6.3A)
AMG ELM Q2266 4x(2x6.3A)
