7 Potentialdistributionterminals | AMG DIS... potential distribution terminal
7.5 AMG DIS... potential distribution terminal








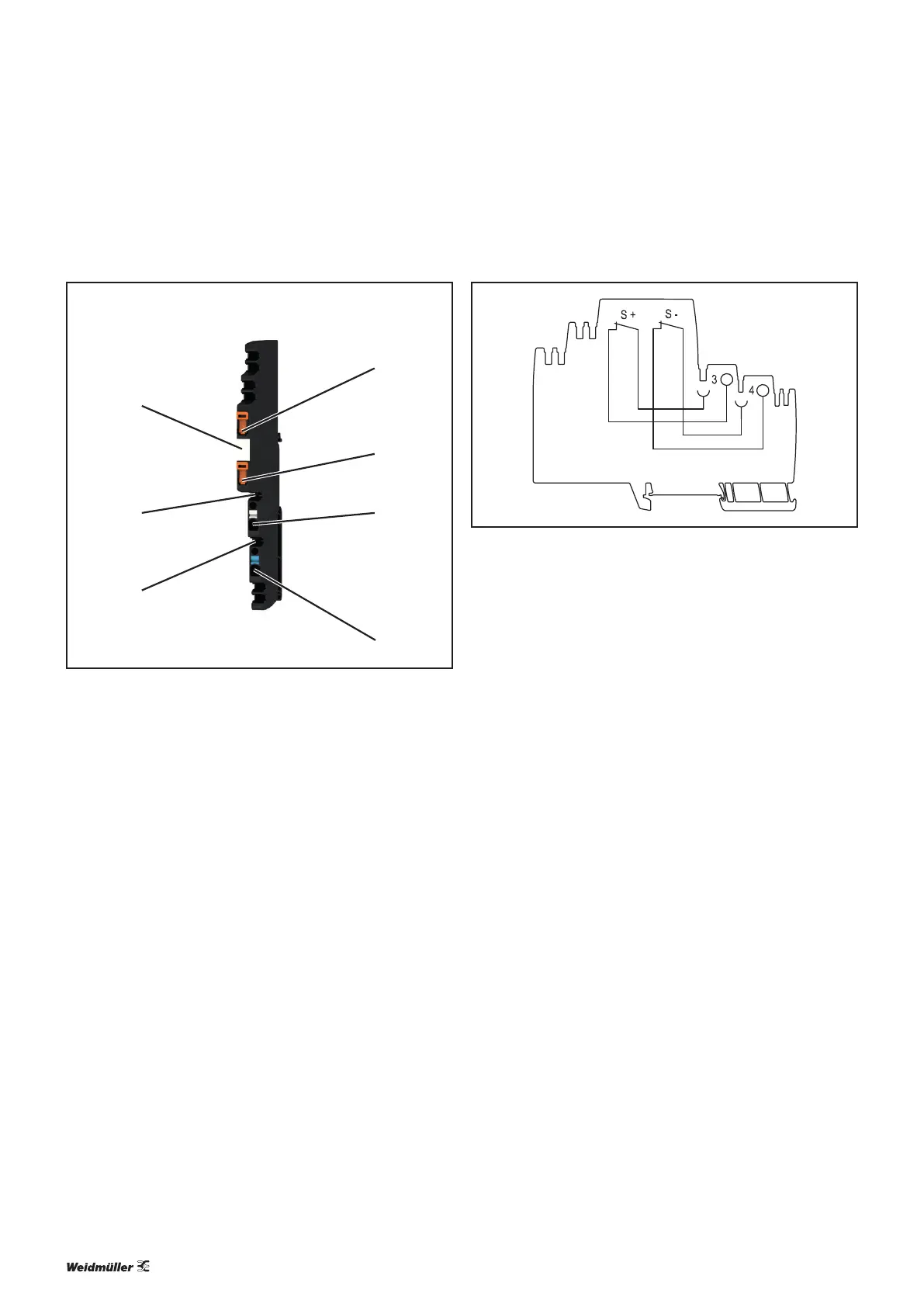

AMG DIS...
1 Disconnecting lever S+
2 Disconnecting lever S-
3 Connection3 (2.5mm
2
)
4 Connection4 (2.5mm
2
)
5 MINUS output connection (cross-connector)
6 PLUS output connection (cross-connector)
7 Marker
The AMGDIS potential distribution terminal is used to repli-
cate the outputs of the AMGELM load monitors. The poten-
tial is fed in exclusively from the outputs of the load monitor
via cross-connectors.
The disconnecting levers can be used for testing purposes to
electrically isolate the connections to the outputs of the load
monitors.
AMG DIS... block diagram
