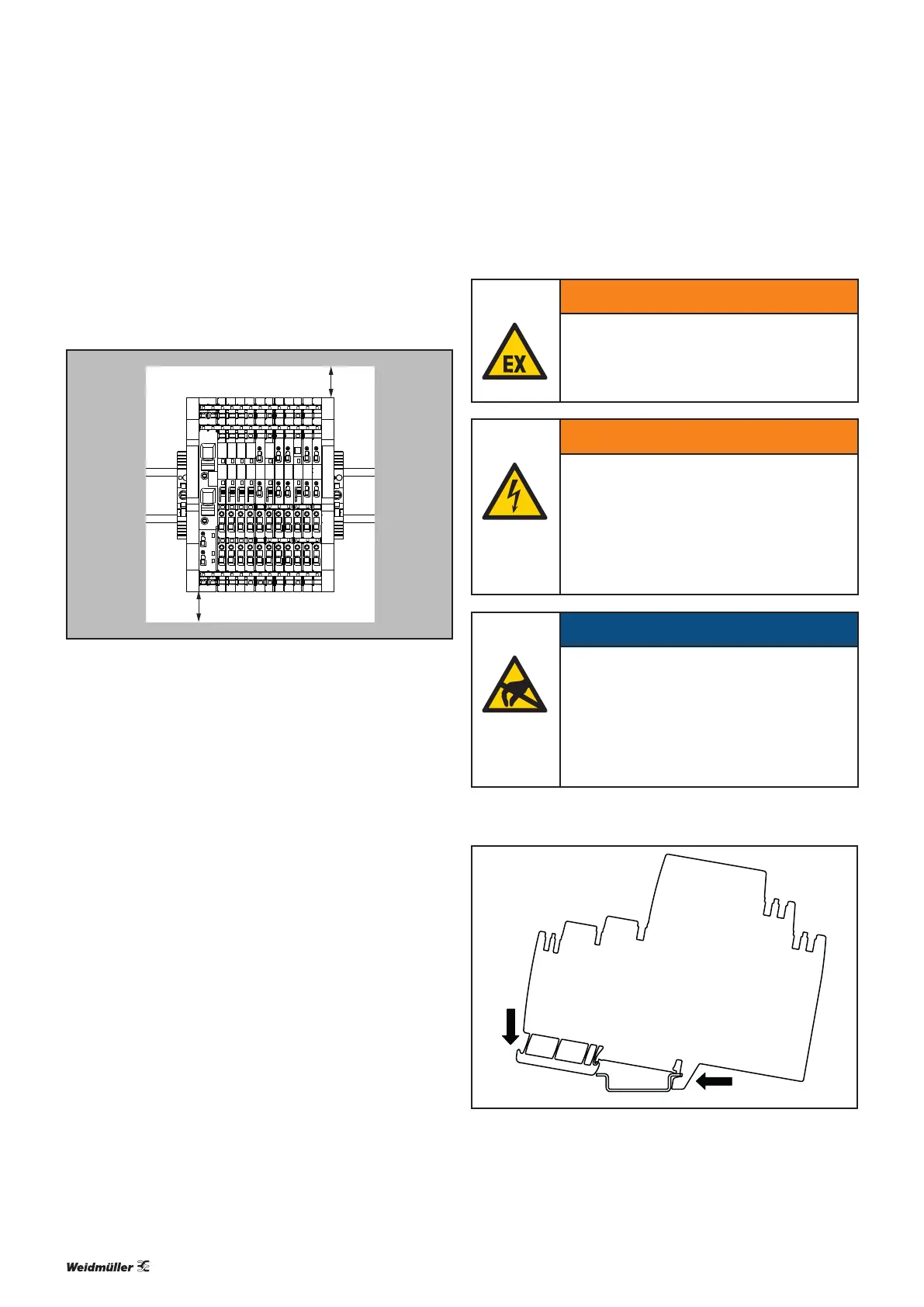

Installation position and mounting distances
A maxGUARD station can be operated in any installation
position without derating. The mounting distance must be at
least 20mm on all sides. The minimum permissible conduc-
tor bending radii must be observed.
20
20
Minimum distances for installation
Preparation and required tools
To install the maxGUARD station, you will need:
– slotted screwdriver:
– blade 2mm, e.g. Weidmüller SDS0.4X2.0X60
(Order No. 9037160000)
– blade 3.5mm, e.g.Weidmüller SDS0.6X3.5X100
(Order No.9008330000)
– blade 6.5mm, e.g.Weidmüller SDS1.2X6.5X150
(Order No.9009010000)
– cutting tool for cross-connectors, e.g. Weidmüller KT14
(Order No.1157820000)
▶ Lay out the modules in the intended sequence.
▶ Lay out the required cross-connectors according to colour
and length.
▶ Lay out the printed markers.
▶ Check whether the terminal rail feet can be moved on
both end brackets. If necessary, loosen the mounting
screw until the terminal rail feet can be moved freely.
8.2 Installing the maxGUARD station
WARNING
Explosion risk!
▶ Before starting any work, make sure that
there is not a potentially explosive atmos-
phere!
WARNING
Dangerous contact voltage!
▶ Carry out installation and wiring work on
the maxGUARD station only when the
power supply is disconnected.
▶ Make sure that the place of installation
(panel etc.) has been disconnected from
the power supply!
ATTENTION
The product can be destroyed by elec-
trostatic discharge!
The components in the maxGUARD series
can be destroyed by electrostatic discharge.
▶ Please make sure that persons and work
equipment are sufficiently earthed!
Installing a module


Installing a module
▶ Place the module on the terminal rail as shown.
▶ Push down the module in the direction of the terminal rail
to engage the clip-in foot on the terminal rail.
