5 Feed-inmodules,controlmodules,alarmmodules | Alarm modules AMG AM...
5.4 Alarm modules AMG AM...









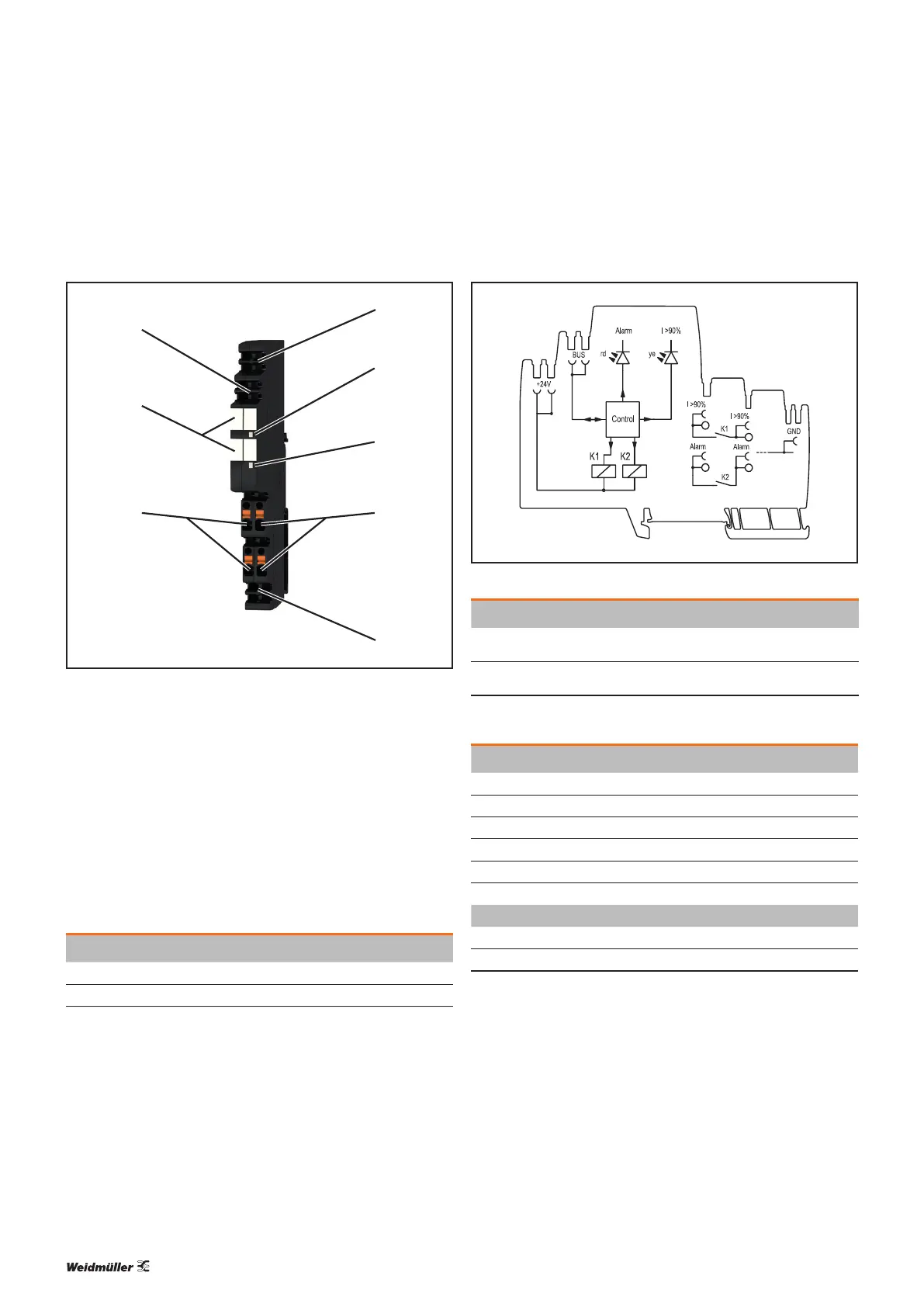

AMG AM...
1 +24V main strand connection (+24V)
2 LED alarm
3 LED overload advance warning
4 I>90% connections (2.5mm
2
)
5 GND main strand connection (0V)
6 Alarm connections (2.5mm
2
)
7 Markers
8 Internal signal line connection
Alarm signals and overload advance warnings can be trans-
mitted potential-free to control boards using alarm modules.
LED Colour Meaning
AL
Red Alarm tripped
I>
Yellow Overload advance warning (I>90%)
AMG AM... block diagram
Signal Function Relay NO contact
I>90%
Overload advance warning
K1 closed: I<90%I
T
K1 open: I>90%I
T
Alarm
Load monitor tripped
K2 closed: no alarm
K2 open: alarm
Technical data AMGAM...
General
Rated voltage
24VDC
Operational voltage range
18 –30VDC
Low voltage detection
Yes (supply voltage<18VDC)
Surge detection
Yes (supply voltage>31.2VDC)
Operating current consumption
100mA
Width
12.2mm
Relay outputs
Contact type
NO contact
Permissible contact load
30V/100mA
