Annex | Normal tripping characteristic 3AN
PV
PV
PV
V
$$$
V
Output current
3.3 A < I ≤ 4 A 4 A < I ≤ 5 A 5 A < I ≤ 9 A 9 A < I ≤ 17 A I > 17 A
Tripping time
5s 1s 100ms 10ms 5ms

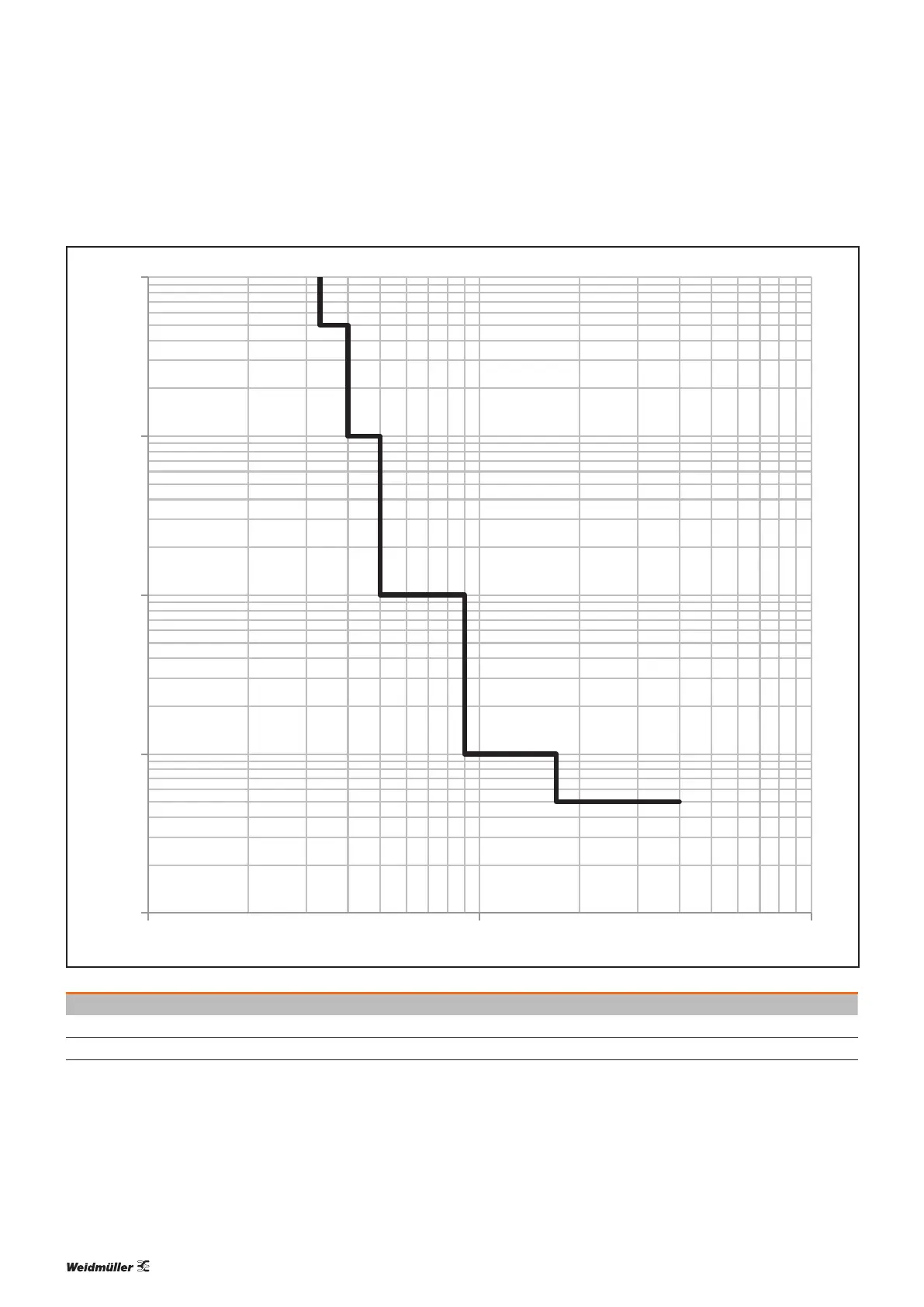

Normal tripping characteristic 3A
