5 Feed-inmodules,controlmodules,alarmmodules | Passive feed-in modules AMG FIM-0...
5 Feed-in modules, control modules, alarm modules
5.1 Passive feed-in modules AMG FIM-0...






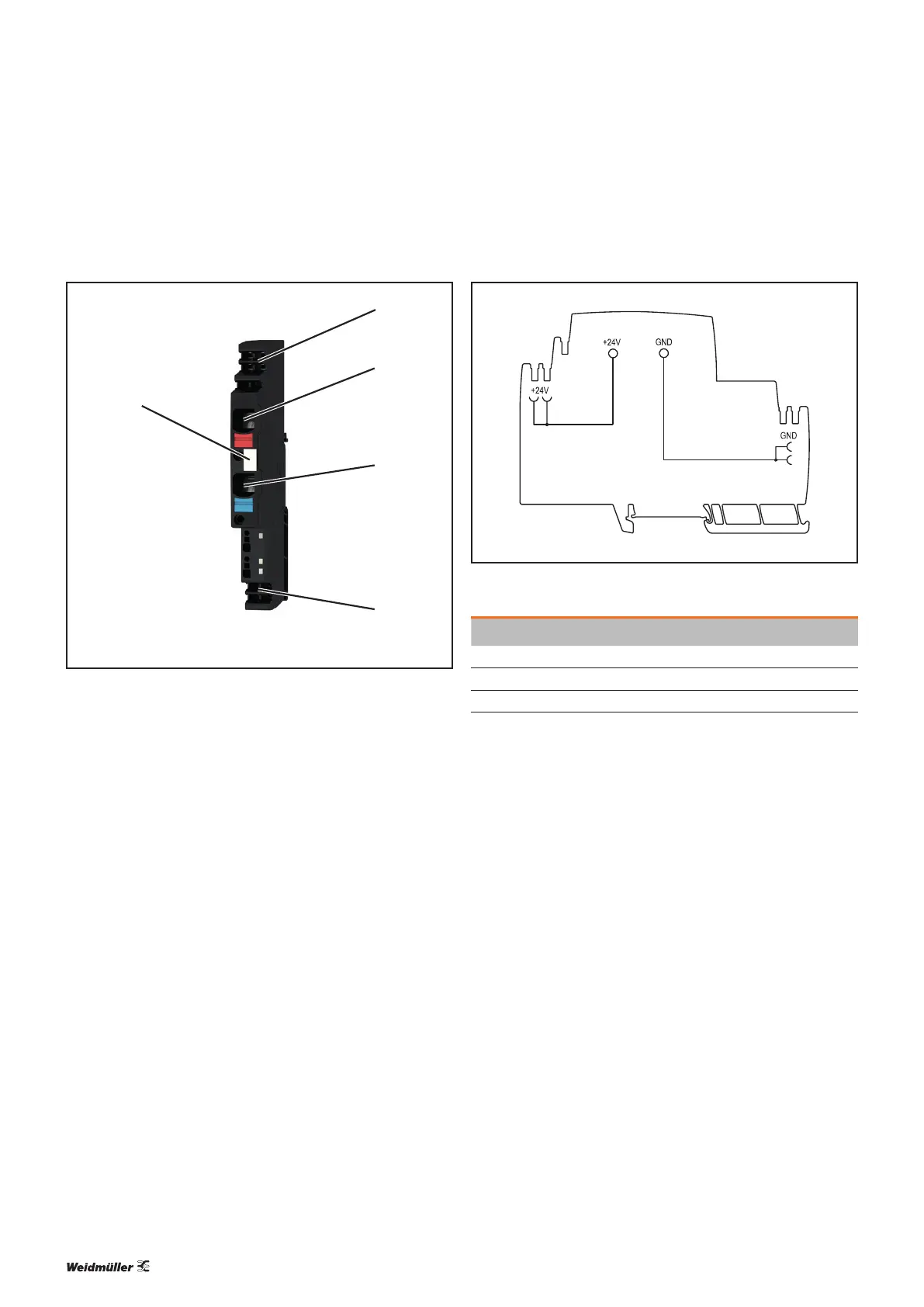

AMG FIM-0...
1 +24V main strand connection (+24V)
2 +24V feed-in connection (16mm
2
)
3 GND feed-in connection (16mm
2
)
4 GND main strand connection (0V)
5 Marker
The passive feed-in modules are used to connect the feed-in
conductors from the power supply. They connect the power
supply to the main strands of the maxGUARD station.
AMG FIM-0... block diagram
Technical data AMGFIM-0...
General
Rated voltage
24VDC
Operational voltage range
18 –30VDC
Width
12.2mm
